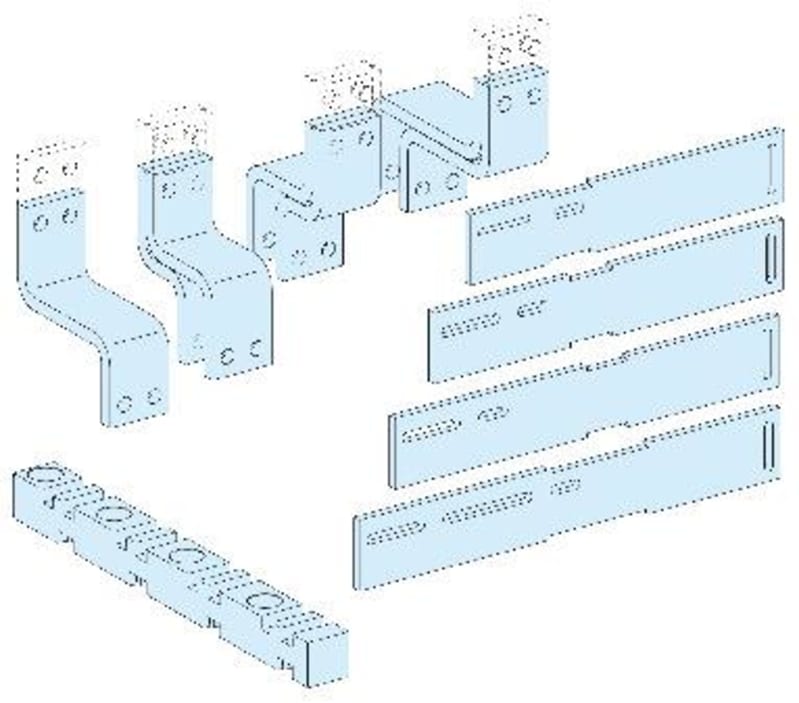

Prefab.Connection MTZ1 1600A/LGY 4P Fastmont.
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric LVS04490 Prefabricated connection for fast-vertical mounted MTZ1 1600A for Linergy LGY 4P -PrismaSeT P.
Technical Specifications
- Manufacturer part number (MPN)
- LVS04490
- EAN / GTIN
- 3606481867865
- Sales unit
- pcs
- Rated current
- 1600 A
- Number of poles
- 4P
- Range
- PrismaSeT
- Range of product
- PrismaSeT P
- Product or component type
- Connection
- product name
- PrismaSeT PrismaSeT P enclosure
- Accessory / separate part category
- Current distribution accessory
- Standards
- IEC 61439-2, inside enclosure; IEC 61439-1, inside enclosure
- Product certifications
- ASTA
- Cubicle-device connection
- Linergy busbar
- Poles description
- 4P
- installation description
- Cubicle - width 650 mm
- Cubicle depth
- 400 mm: front; 400 + 400 mm: rear
- Installed device
- Masterpact: fixed NT16 - control: toggle vertical installation; Masterpact: fixed NT16 - control: motor mechanism vertical installation
- [Ie] rated operational current
- 1600 A
- Busbar cross section
- 80 x 10 mm
- Height
- 150 mm
- Width
- 550 mm
- Depth
- 300 mm
- Product weight
- 18.34 kg
- Quantity per set
- Set of 1
- functional unit
- 650 mm 400 mm PrismaSeT P cubicle Masterpact NT16 fixed toggle vertical 4P 1 front connection on adaptor 14; 650 mm 400 mm PrismaSeT P cubicle Masterpact NT16 fixed motor mechanism vertical 4P 1 front connection on adaptor 14; 650 mm 800 mm PrismaSeT P cubicle Masterpact NT16 fixed toggle vertical 4P 1 rear connection on adaptor 11; 650 mm 800 mm PrismaSeT P cubicle Masterpact NT16 fixed motor mechanism vertical 4P 1 rear connection on adaptor 11; 650 mm 800 mm PrismaSeT P cubicle Masterpact NT16 fixed toggle vertical 4P 1 rear connection on Canalis 16; 650 mm 800 mm PrismaSeT P cubicle Masterpact NT16 fixed motor mechanism vertical 4P 1 rear connection on Canalis 16
- Warranty (in months)
- 18
- With cover
- No
- Max. rated current
- 1600 A
- Country of origin
- France
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3606481867865
- SAP 1200546943
- Code 82880393
Product Documentation
More from Schneider Electric
Schneider Electric
Schneider Electric transfer switch, TransferPacT Active automatic, 100A, 400V, 3P, LCD,frame 160A TA16D3L1004TPE
Schneider Electric
Schneider Electric PanelSeT SFX Side Panels Set of 2, Stainless Steel 304L, 2000 x 500 mm
NSY2SPX205
Schneider Electric
Schneider Electric Illuminated push button, Harmony XB5, orange, 30mm, universal LED, 1NO + 1NC, 230...240V AC XB5FW35M5
Schneider Electric
Schneider Electric APC Smart-UPS X Battery Pack Extension Cable 120V SMX040
Schneider Electric

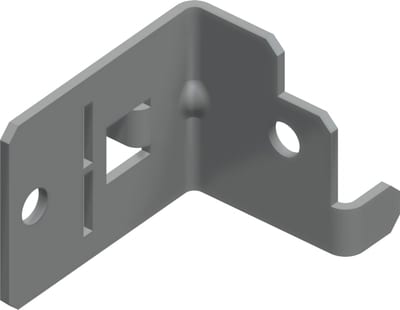

Bracket for rail in plinth
NSYSPCR
Schneider Electric

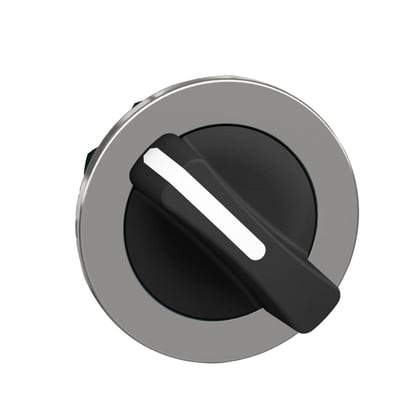

Selector Switch Head flush 2 pos black
ZB4FD4
Schneider Electric

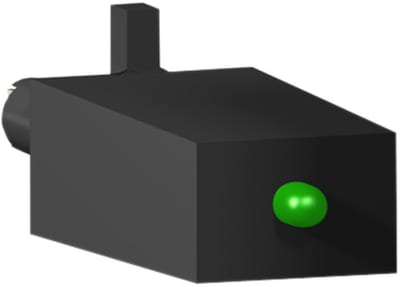

Varistormodul 110V (RXM021FP)
Schneider Electric

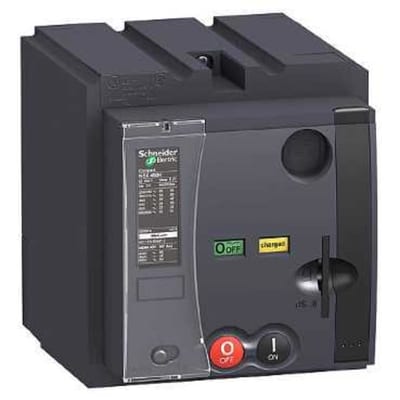

Schneider Electric standard motor mechanism module MT400/630, ComPact NSX400/630, 250 VDC LV432646
