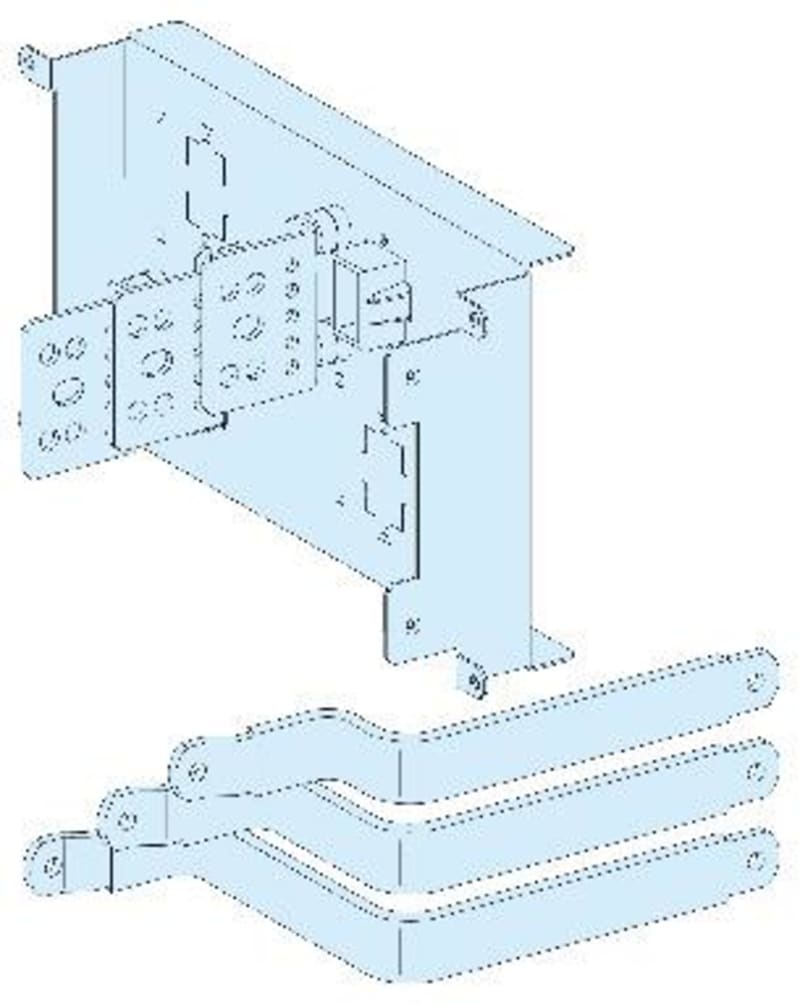

Schneider Electric Connection transfer assembly, PrismaSeT P, NSX630, 3P, horizontal fixed, with toggle, in duct LVS04455
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric LVS04455 Connection for cable compartment for fast-horizontal mounted NSX400-630 3P -PrismaSeT P.
Technical Specifications
- Manufacturer part number (MPN)
- LVS04455
- EAN / GTIN
- 3606481867650
- Sales unit
- pcs
- Number of poles
- 3P
- Range
- PrismaSeT
- Range of product
- PrismaSeT P
- Product or component type
- Connection transfer assembly
- product name
- PrismaSeT PrismaSeT P enclosure
- Accessory / separate part category
- Current distribution accessory
- Standards
- IEC 61439-2, inside enclosure; IEC 61439-1, inside enclosure
- Product certifications
- ASTA
- Cubicle-device connection
- flat busbar
- Poles description
- 3P
- installation description
- Cubicle - width 650 mm
- Installed device
- ComPact: fixed NSX400 without earth leakage protection - control: toggle horizontal installation; ComPact: fixed NSX630 without earth leakage protection - control: toggle horizontal installation
- [Ie] rated operational current
- 630 A
- Busbar cross section
- 32 x 6 mm
- Height
- 200 mm
- Width
- 350 mm
- Product weight
- 5.8 kg
- Quantity per set
- Set of 1
- functional unit
- 650 mm 400 mm PrismaSeT P cubicle ComPact NSX400 without fixed toggle horizontal 3P 1 direct 4; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX630 without fixed toggle horizontal 3P 1 direct 4
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 27
- Warranty (in months)
- 18
- Depth
- 400 mm
- With cover
- No
- Max. rated current
- 630 A
- Country of origin
- France
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3606481867650
- SAP 1200547120
- Code 82879950
