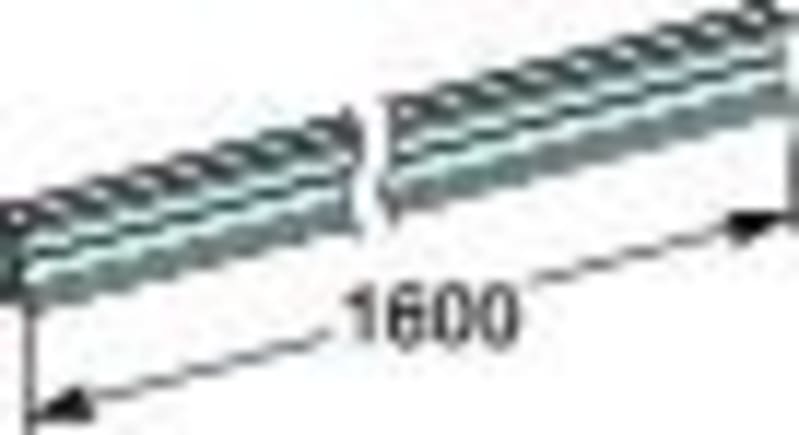

MountingRail for MOD.PROD.2 PCS-L1600 G/P

Schneider Electric LVS04226 Montasjekinne for modular products-2 pcs-length 1600mm PrismaSeT G/P.

Manufacturer part number (MPN)

LVS04226

EAN / GTIN

3606481875518

Sales unit

pack

Package quantity

2 pack

Range

PrismaSeT

Range of product

PrismaSeT G; PrismaSeT P; Prisma iPM

Product or component type

Rail

Accessory / separate part category

Installation accessory

Range compatibility

PrismaSeT PrismaSeT G; PrismaSeT PrismaSeT P; PrismaSeT Prisma iPM L; PrismaSeT Prisma iPM M

Type of rail

Modular

Installed device

Acti 9: fixed modular device; Multi9: fixed modular device; TeSys: clip-on GV2ME - control: push-button; TeSys: clip-on GV2ME + LC1D09...D32 - control: push-button; TeSys: clip-on GV2P - control: rotary knob; TeSys: clip-on GV2P + LC1D09...D32 - control: rotary knob; TeSys: clip-on LC1D09...D95; Connection: terminal blocks; EasyPact: clip-on TVS GZ1E - control: push-button; EasyPact: clip-on TVS GZ1E + LC1E09...E32 - control: push-button

installation description

Floor-standing enclosure - width 600 mm; Wall-mounted enclosure - width 600 mm; Cubicle - width 650 mm depth 400 mm; Cubicle - width 800 mm; Cubicle - width 600 mm

Number of vertical modules [50 mm]

3 module(s): GV2ME in 600 mm Widefloor-standing enclosure; 3 module(s): GV2ME in 600 mm Widewall-mounted enclosure; 3 module(s): GV2ME in 800 mm Widecubicle; 3 module(s): GV2ME in 600 mm Widecubicle; 5 module(s): GV2ME + LC1D09...D32 in 600 mm Widefloor-standing enclosure; 5 module(s): GV2ME + LC1D09...D32 in 600 mm Widewall-mounted enclosure; 5 module(s): GV2ME + LC1D09...D32 in 800 mm Widecubicle; 5 module(s): GV2ME + LC1D09...D32 in 600 mm Widecubicle; 3 module(s): GV2P in 600 mm Widefloor-standing enclosure; 3 module(s): GV2P in 600 mm Widewall-mounted enclosure; 3 module(s): GV2P in 800 mm Widecubicle; 3 module(s): GV2P in 600 mm Widecubicle; 5 module(s): GV2P + LC1D09...D32 in 600 mm Widefloor-standing enclosure; 5 module(s): GV2P + LC1D09...D32 in 600 mm Widewall-mounted enclosure; 5 module(s): GV2P + LC1D09...D32 in 800 mm Widecubicle; 5 module(s): GV2P + LC1D09...D32 in 600 mm Widecubicle; 4 module(s): LC1D09...D95 in 600 mm Widefloor-standing enclosure; 4 module(s): LC1D09...D95 in 600 mm Widewall-mounted enclosure; 4 module(s): LC1D09...D95 in 800 mm Widecubicle; 4 module(s): LC1D09...D95 in 600 mm Widecubicle; 9 module(s): modular device, direct in 600 mm Widefloor-standing enclosure; 9 module(s): modular device, direct in 600 mm Widewall-mounted enclosure; 12 module(s): modular device, direct in 600 mm Widefloor-standing enclosure; 12 module(s): modular device, direct in 600 mm Widewall-mounted enclosure; 9 module(s): modular device, direct in 650 mm Widecubicle; 12 module(s): modular device, direct in 650 mm Widecubicle; 9 module(s): modular device, direct in 800 mm Widecubicle; 12 module(s): modular device, direct in 800 mm Widecubicle; 9 module(s): modular device, direct in 600 mm Widecubicle; 12 module(s): modular device, direct in 600 mm Widecubicle; 3 module(s): TVS GZ1E in 600 mm Widefloor-standing enclosure; 3 module(s): TVS GZ1E in 600 mm Widewall-mounted enclosure; 3 module(s): TVS GZ1E in 800 mm Widecubicle; 3 module(s): TVS GZ1E in 600 mm Widecubicle; 5 module(s): TVS GZ1E + LC1E09...E32 in 600 mm Widefloor-standing enclosure; 5 module(s): TVS GZ1E + LC1E09...E32 in 600 mm Widewall-mounted enclosure; 5 module(s): TVS GZ1E + LC1E09...E32 in 800 mm Widecubicle; 5 module(s): TVS GZ1E + LC1E09...E32 in 600 mm Widecubicle

Quantity per set

Set of 2

Height

35 mm

Width

1600 mm

Depth

15 mm

Product weight

1.3 kg

Colour

Natural

Material

Metal

Standards

IEC 61439-1; IEC 61439-2

Product certifications

ASTA

Number of Units in Package 1

1

Number of Units in Package 2

120

Warranty (in months)

18

Country of origin

France

HS Code

7326.90
