Cover-trappet busbar Prisma G/P
Pricing
Request a quote
We reply within 24 hours
Product Description

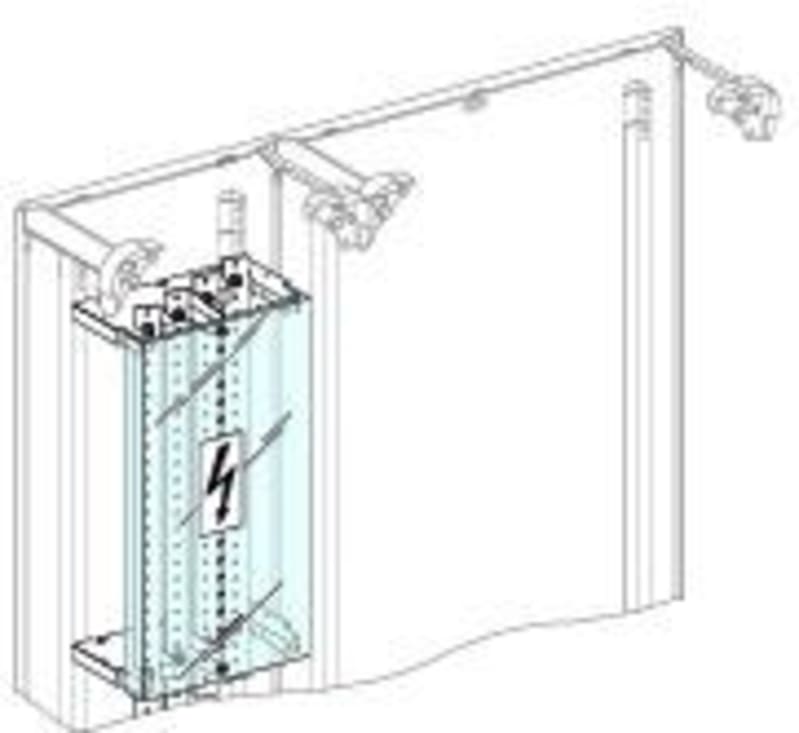

Schneider Electric LVS04197 Cover-trappet busbar-Linergy BS BB-PrismaSeT G/P.
Technical Specifications
- Manufacturer part number (MPN)
- LVS04197
- EAN / GTIN
- 3606481880031
- Sales unit
- pcs
- Range
- Linergy
- Range of product
- Linergy BS
- Product or component type
- Insulating plate
- Accessory / separate part category
- Insulation accessory
- Range compatibility
- Linergy Linergy BS busbar; PrismaSeT PrismaSeT G duct; PrismaSeT PrismaSeT P duct
- Barrier position
- Front
- IP degree of protection
- IPxx B
- installation description
- Wall-mounted duct - width 300 mm; Floor-standing duct - width 300 mm; Duct - width 400 mm
- Installed device
- multi-stage busbar
- [Ie] rated operational current
- 630 A
- Number of vertical modules [50 mm]
- 30
- Quantity per set
- Set of 1
- Material
- Plastic
- Height
- 1500 mm
- Width
- 250 mm
- Colour
- Transparent
- Product weight
- 0.74 kg
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 1.600 cm
- Package 1 Width
- 23.500 cm
- Package 1 Length
- 150.200 cm
- Package 1 Weight
- 758.000 g
- Unit Type of Package 2
- PAL
- Number of Units in Package 2
- 240
- Package 2 Height
- 74.000 cm
- Package 2 Width
- 120.000 cm
- Package 2 Length
- 202.000 cm
- Package 2 Weight
- 204.500 kg
- Country of origin
- FR
- Warranty (in months)
- 18
Cross References
- EAN 3606481880031
- SAP 1200547064
- Code 82879458
