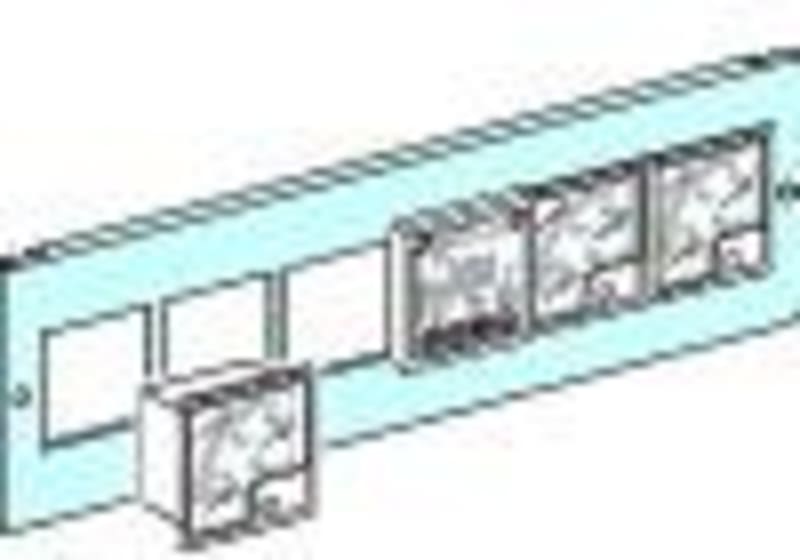

Front plate for 6 PCS-72X72 PrismaSeT G/P
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric LVS03910 Front plate for 6 pcs-72X72mm instrumenter-PrismaSeT G/P.
Technical Specifications
- Manufacturer part number (MPN)
- LVS03910
- EAN / GTIN
- 3606481871640
- Sales unit
- pcs
- Package quantity
- 10 pcs
- Range
- PrismaSeT
- Range of product
- PrismaSeT G; PrismaSeT P
- Product or component type
- Front plate
- Accessory / separate part category
- Installation accessory
- Range compatibility
- PrismaSeT PrismaSeT G enclosure; PrismaSeT PrismaSeT P cubicle
- Type of front plate
- Cut-out
- Installed device
- Vigirex: RH10; Vigirex: RH21; Vigirex: RH99; Human-switchboard interface: 72 x 72 mm device; Human-switchboard interface: HSI
- Enclosure/cubicle description
- Floor-standing enclosure - width 850 mm
- Number of vertical modules [50 mm]
- 3
- Standards
- IEC 61439-1; IEC 61439-2
- Product certifications
- ASTA
- Material
- Steel
- Protective treatment
- Electrophoresis treatment and hot-polymerised polyester epoxy powder
- Surface finish
- Textured; Matt
- Colour
- White (RAL 9003)
- Width
- 750 mm
- Height
- 150 mm
- Product weight
- 0.48 kg
- Quantity per set
- Set of 1
- functional unit
- 650 mm 400 mm PrismaSeT P cubicle Vigirex 6 3; 600 mm PrismaSeT G floor-standing enclosure human-switchboard interface 72 x 72 mm device 6 3; 600 mm PrismaSeT G wall-mounted enclosure human-switchboard interface 72 x 72 mm device 6 3; 650 mm 400 mm PrismaSeT P cubicle human-switchboard interface 72 x 72 mm device 6 3; 600 mm PrismaSeT G floor-standing enclosure human-switchboard interface HSI 6 3; 600 mm PrismaSeT G wall-mounted enclosure human-switchboard interface HSI 6 3; 650 mm 400 mm PrismaSeT P cubicle human-switchboard interface HSI 6 3; 600 mm PrismaSeT G floor-standing enclosure Vigirex 6 3; 600 mm PrismaSeT G wall-mounted enclosure Vigirex 6 3
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 10
- Number of Units in Package 3
- 90
- Warranty (in months)
- 18
- Suitable for enclosure building width
- 600 mm
- Number of height units
- 3
- Surface finishing
- Powder coating
- Country of origin
- France
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 3606481871640
- SAP 1200546770
- Code 82880730
Product Documentation
More from Schneider Electric
Schneider Electric
Gland Plate 3-piece 10X6
NSYEC1062
Schneider Electric
M340 Cable FCN-1*HE, 3M
BMXFCC301
Schneider Electric
Schneider Electric flush mounted black selector switch head knurled knob 2 pos stay put ZB5FD29
Schneider Electric
Mounting plate 300X600
NSYMM36
Schneider Electric

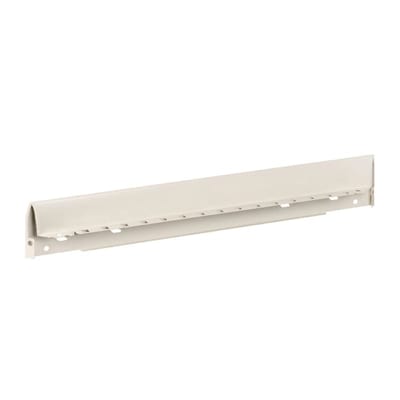

Schneider Electric Central upright, PrismaSeT G, combination profile 18M, IP30 LVS01066
Schneider Electric

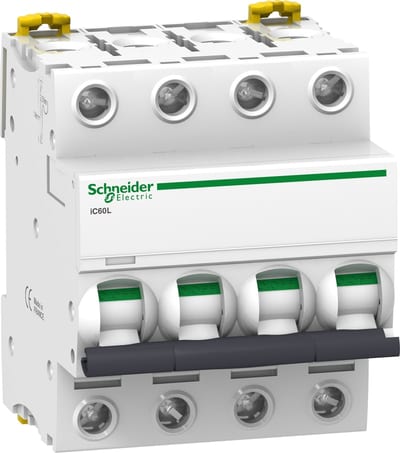

Schneider Electric A9F95401 ACTI9 IC60L Miniature Circuit Breaker 4P 1 A, Curve K
