MONTASJEPL.NS630B-1600 fast in 400-FIELD P

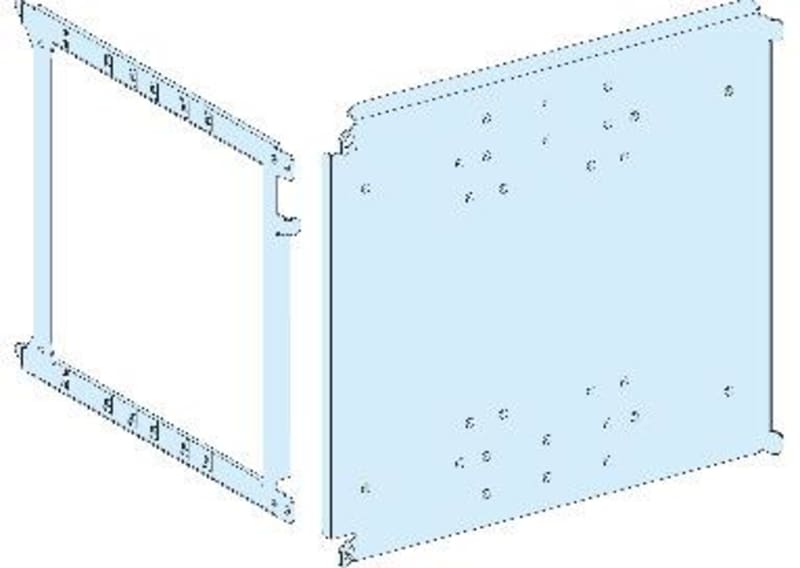

Schneider Electric LVS03487 — MOUNTING PLATE FOR NS FIXED -3P/4P 1600A VERTICAL IN WIDTH 400.

Manufacturer part number (MPN)

LVS03487

EAN / GTIN

3606481874535

Sales unit

pcs

Package quantity

4 pcs

Range

PrismaSeT

Range of product

PrismaSeT P

Product or component type

Mounting plate

Accessory / separate part category

Installation accessory

Range compatibility

PrismaSeT PrismaSeT P cubicle

installation description

Cubicle - width 400 mm depth 400 mm

Installed device

ComPact: fixed NSX400 without earth leakage protection - control: toggle - vertical installation; ComPact: fixed NSX630 without earth leakage protection - control: toggle - vertical installation; ComPact: fixed NSX400 with earth leakage protection - control: toggle - vertical installation; ComPact: fixed NSX630 with earth leakage protection - control: toggle - vertical installation; ComPact: fixed NSX400 without earth leakage protection - control: direct front rotary handle - vertical installation; ComPact: fixed NSX630 without earth leakage protection - control: direct front rotary handle - vertical installation; ComPact: plug-in NSX400 without earth leakage protection - control: toggle - vertical installation; ComPact: fixed NSX400 without earth leakage protection - control: motor mechanism - vertical installation; ComPact: plug-in NSX400 without earth leakage protection - control: direct front rotary handle - vertical installation; ComPact: plug-in NSX400 without earth leakage protection - control: motor mechanism - vertical installation; ComPact: plug-in NSX630 without earth leakage protection - control: toggle - vertical installation; ComPact: fixed NSX630 without earth leakage protection - control: motor mechanism - vertical installation; ComPact: plug-in NSX630 without earth leakage protection - control: direct front rotary handle - vertical installation; ComPact: plug-in NSX630 without earth leakage protection - control: motor mechanism - vertical installation; ComPact: plug-in NSX400 with earth leakage protection - control: toggle - vertical installation; ComPact: plug-in NSX630 with earth leakage protection - control: toggle - vertical installation; ComPact: fixed NS1250 - control: toggle - vertical installation; ComPact: fixed NS1250 - control: direct front rotary handle - vertical installation; ComPact: fixed NS1250 - control: motor mechanism - vertical installation; ComPact: fixed NS1600 - control: toggle - vertical installation; ComPact: fixed NS1600 - control: direct front rotary handle - vertical installation; ComPact: fixed NS1600 - control: motor mechanism - vertical installation; ComPact: fixed NS630b...1000 - control: toggle - vertical installation; ComPact: fixed NS630b...1000 - control: direct front rotary handle - vertical installation; ComPact: fixed NS630b...1000 - control: motor mechanism - vertical installation; EasyPact CVS: fixed CVS800...1600 - control: toggle - vertical installation; EasyPact CVS: fixed CVS800...1600 - control: rotary handle - vertical installation

Poles description

1 x 3P: fixed NSX400 vertical installation; 1 x 4P: fixed NSX400 vertical installation; 1 x 3P: fixed NSX630 vertical installation; 1 x 4P: fixed NSX630 vertical installation; 1 x 3P: plug-in NSX400 vertical installation; 1 x 4P: plug-in NSX400 vertical installation; 1 x 3P: plug-in NSX630 vertical installation; 1 x 4P: plug-in NSX630 vertical installation; 1 x 3P: fixed NS1250 vertical installation; 1 x 4P: fixed NS1250 vertical installation; 1 x 3P: fixed NS1600 vertical installation; 1 x 4P: fixed NS1600 vertical installation; 1 x 3P: fixed NS630b...1000 vertical installation; 1 x 4P: fixed NS630b...1000 vertical installation; 1 x 3P: fixed CVS800...1600 vertical installation; 1 x 4P: fixed CVS800...1600 vertical installation

Number of vertical modules [50 mm]

36 module(s): NS1250, direct in 400 mm Widecubicle; 36 module(s): NS1600, direct in 400 mm Widecubicle; 36 module(s): NS630b...1000, direct in 400 mm Widecubicle; 12 module(s): NSX400 without earth leakage protection , front connection in 400 mm Widecubicle; 12 module(s): NSX630 without earth leakage protection , front connection in 400 mm Widecubicle; 14 module(s): NSX400 with earth leakage protection , front connection in 400 mm Widecubicle; 14 module(s): NSX630 with earth leakage protection , front connection in 400 mm Widecubicle; 36 module(s): CVS800...1600, front connection in 650 mm Widecubicle

Standards

IEC 61439-2

Product certifications

ASTA

Material

Sheet steel

Protective treatment

Electrophoresis treatment and hot-polymerised polyester epoxy powder

Surface finish

Matt; Textured

Colour

White (RAL 9003)

Width

400 mm

Height

300 mm

Product weight

2.7 kg

Functional unit

400 mm 400 mm PrismaSeT P cubicle ComPact NS1250 fixed toggle vertical 3P 1 direct 36 762.5 mm; 400 mm 400 mm PrismaSeT P cubicle ComPact NS1250 fixed toggle vertical 4P 1 direct 36 762.5 mm; 400 mm 400 mm PrismaSeT P cubicle ComPact NS1250 fixed direct front rotary handle vertical 3P 1 direct 36 762.5 mm; 400 mm 400 mm PrismaSeT P cubicle ComPact NS1250 fixed direct front rotary handle vertical 4P 1 direct 36 762.5 mm; 400 mm 400 mm PrismaSeT P cubicle ComPact NS1250 fixed motor mechanism vertical 3P 1 direct 36 762.5 mm; 400 mm 400 mm PrismaSeT P cubicle ComPact NS1250 fixed motor mechanism vertical 4P 1 direct 36 762.5 mm; 400 mm 400 mm PrismaSeT P cubicle ComPact NS1600 fixed toggle vertical 3P 1 direct 36 762.5 mm; 400 mm 400 mm PrismaSeT P cubicle ComPact NS1600 fixed toggle vertical 4P 1 direct 36 762.5 mm; 400 mm 400 mm PrismaSeT P cubicle ComPact NS1600 fixed direct front rotary handle vertical 3P 1 direct 36 762.5 mm; 400 mm 400 mm PrismaSeT P cubicle ComPact NS1600 fixed direct front rotary handle vertical 4P 1 direct 36 762.5 mm; 400 mm 400 mm PrismaSeT P cubicle ComPact NS1600 fixed motor mechanism vertical 3P 1 direct 36 762.5 mm; 400 mm 400 mm PrismaSeT P cubicle ComPact NS1600 fixed motor mechanism vertical 4P 1 direct 36 762.5 mm; 400 mm 400 mm PrismaSeT P cubicle ComPact NS630b...1000 fixed toggle vertical 3P 1 direct 36 762.5 mm; 400 mm 400 mm PrismaSeT P cubicle ComPact NS630b...1000 fixed toggle vertical 4P 1 direct 36 762.5 mm; 400 mm 400 mm PrismaSeT P cubicle ComPact NS630b...1000 fixed direct front rotary handle vertical 3P 1 direct 36 762.5 mm; 400 mm 400 mm PrismaSeT P cubicle ComPact NS630b...1000 fixed direct front rotary handle vertical 4P 1 direct 36 762.5 mm; 400 mm 400 mm PrismaSeT P cubicle ComPact NS630b...1000 fixed motor mechanism vertical 3P 1 direct 36 762.5 mm; 400 mm 400 mm PrismaSeT P cubicle ComPact NS630b...1000 fixed motor mechanism vertical 4P 1 direct 36 762.5 mm; 400 mm 400 mm PrismaSeT P cubicle ComPact NSX400 without fixed toggle vertical 3P 1 front connection 12 112.5 mm; 400 mm 400 mm PrismaSeT P cubicle ComPact NSX400 without fixed toggle vertical 4P 1 front connection 12 112.5 mm; 400 mm 400 mm PrismaSeT P cubicle ComPact NSX400 without fixed direct front rotary handle vertical 3P 1 front connection 12 137.5 mm; 400 mm 400 mm PrismaSeT P cubicle ComPact NSX400 without fixed direct front rotary handle vertical 4P 1 front connection 12 137.5 mm; 400 mm 400 mm PrismaSeT P cubicle ComPact NSX400 without fixed motor mechanism vertical 3P 1 front connection 12 137.5 mm; 400 mm 400 mm PrismaSeT P cubicle ComPact NSX400 without fixed motor mechanism vertical 4P 1 front connection 12 137.5 mm; 400 mm 400 mm PrismaSeT P cubicle ComPact NSX400 without plug-in toggle vertical 3P 1 front connection 12 112.5 mm; 400 mm 400 mm PrismaSeT P cubicle ComPact NSX400 without plug-in toggle vertical 4P 1 front connection 12 112.5 mm; 400 mm 400 mm PrismaSeT P cubicle ComPact NSX400 without plug-in direct front rotary handle vertical 3P 1 front connection 12 137.5 mm; 400 mm 400 mm PrismaSeT P cubicle ComPact NSX400 without plug-in direct front rotary handle vertical 4P 1 front connection 12 137.5 mm; 400 mm 400 mm PrismaSeT P cubicle ComPact NSX400 without plug-in motor mechanism vertical 3P 1 front connection 12 137.5 mm; 400 mm 400 mm PrismaSeT P cubicle ComPact NSX400 without plug-in motor mechanism vertical 4P 1 front connection 12 137.5 mm; 400 mm 400 mm PrismaSeT P cubicle ComPact NSX630 without fixed toggle vertical 3P 1 front connection 12 112.5 mm; 400 mm 400 mm PrismaSeT P cubicle ComPact NSX630 without fixed toggle vertical 4P 1 front connection 12 112.5 mm; 400 mm 400 mm PrismaSeT P cubicle ComPact NSX630 without fixed direct front rotary handle vertical 3P 1 front connection 12 137.5 mm; 400 mm 400 mm PrismaSeT P cubicle ComPact NSX630 without fixed direct front rotary handle vertical 4P 1 front connection 12 137.5 mm; 400 mm 400 mm PrismaSeT P cubicle ComPact NSX630 without fixed motor mechanism vertical 3P 1 front connection 12 137.5 mm; 400 mm 400 mm PrismaSeT P cubicle ComPact NSX630 without fixed motor mechanism vertical 4P 1 front connection 12 137.5 mm; 400 mm 400 mm PrismaSeT P cubicle ComPact NSX630 without plug-in toggle vertical 3P 1 front connection 12 112.5 mm; 400 mm 400 mm PrismaSeT P cubicle ComPact NSX630 without plug-in toggle vertical 4P 1 front connection 12 112.5 mm; 400 mm 400 mm PrismaSeT P cubicle ComPact NSX630 without plug-in direct front rotary handle vertical 3P 1 front connection 12 137.5 mm; 400 mm 400 mm PrismaSeT P cubicle ComPact NSX630 without plug-in direct front rotary handle vertical 4P 1 front connection 12 137.5 mm; 400 mm 400 mm PrismaSeT P cubicle ComPact NSX630 without plug-in motor mechanism vertical 3P 1 front connection 12 137.5 mm; 400 mm 400 mm PrismaSeT P cubicle ComPact NSX630 without plug-in motor mechanism vertical 4P 1 front connection 12 137.5 mm; 400 mm 400 mm PrismaSeT P cubicle ComPact NSX400 with fixed toggle vertical 3P 1 front connection 14 112.5 mm; 400 mm 400 mm PrismaSeT P cubicle ComPact NSX400 with fixed toggle vertical 4P 1 front connection 14 112.5 mm; 400 mm 400 mm PrismaSeT P cubicle ComPact NSX400 with plug-in toggle vertical 3P 1 front connection 14 112.5 mm; 400 mm 400 mm PrismaSeT P cubicle ComPact NSX400 with plug-in toggle vertical 4P 1 front connection 14 112.5 mm; 400 mm 400 mm PrismaSeT P cubicle ComPact NSX630 with fixed toggle vertical 3P 1 front connection 14 112.5 mm; 400 mm 400 mm PrismaSeT P cubicle ComPact NSX630 with fixed toggle vertical 4P 1 front connection 14 112.5 mm; 400 mm 400 mm PrismaSeT P cubicle ComPact NSX630 with plug-in toggle vertical 3P 1 front connection 14 112.5 mm; 400 mm 400 mm PrismaSeT P cubicle ComPact NSX630 with plug-in toggle vertical 4P 1 front connection 14 112.5 mm; 650 mm 400 mm PrismaSeT P cubicle EasyPact CVS CVS800...1600 fixed toggle vertical 3P 1 front connection 36 762.5 mm; 650 mm 400 mm PrismaSeT P cubicle EasyPact CVS CVS800...1600 fixed rotary handle vertical 4P 1 front connection 36 762.5 mm

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

4.000 cm

Package 1 Width

31.000 cm

Package 1 Length

37.500 cm

Package 1 Weight

2.858 kg

Unit Type of Package 2

S04

Number of Units in Package 2

4

Package 2 Height

30.000 cm

Package 2 Width

40.000 cm

Package 2 Length

60.000 cm

Package 2 Weight

12.720 kg

Unit Type of Package 3

P12

Number of Units in Package 3

96

Package 3 Height

105.000 cm

Package 3 Width

80.000 cm

Package 3 Length

120.000 cm

Package 3 Weight

317.280 kg

Country of origin

IN

Warranty (in months)

18

Perforated

No

Surface protection

Powder coating

HS Code

8536.90

• EAN 3606481874535
• SAP 1200546690
• Code 82880008
