Schneider Electric
Mounting plate NSX630 Horizontal-dreie-Omk. P
Part numberLVS03458EAN / GTIN3606481874412HS code7326.90
Enclosures
Mounting Plates
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description

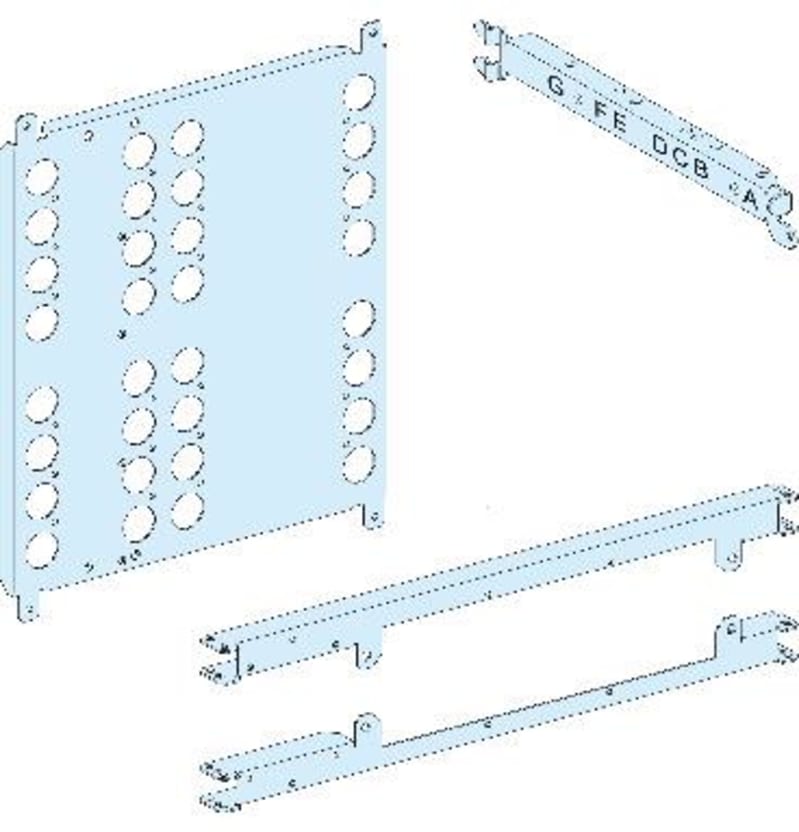

Schneider Electric LVS03458 Mounting plate for NSX400/630-horizontal mounting-dreiehandtak-changeover switch-3P/4P-PrismaSeT P-for 650mm.
Technical Specifications
- Manufacturer part number (MPN)
- LVS03458
- EAN / GTIN
- 3606481874412
- Sales unit
- pcs
- Package quantity
- 5 pcs
- Range
- PrismaSeT
- Range of product
- PrismaSeT P
- Product or component type
- Mounting plate
- Accessory / separate part category
- Installation accessory
- Range compatibility
- PrismaSeT PrismaSeT P cubicle
- installation description
- Cubicle - width 650 mm depth 400 mm
- Installed device
- ComPact: fixed INS320...630 source changeover - control: direct front rotary handle - horizontal installation; ComPact: fixed INV320...630 source changeover - control: direct front rotary handle - horizontal installation; Source changeover: fixed NSX400...630 source changeover without earth leakage protection - control: direct front rotary handle - horizontal installation
- Poles description
- 2 x 3P: fixed NSX400...630 source changeover horizontal installation; 2 x 4P: fixed NSX400...630 source changeover horizontal installation; 2 x 3P: fixed INS320...630 source changeover horizontal installation; 2 x 4P: fixed INS320...630 source changeover horizontal installation; 2 x 3P: fixed INV320...630 source changeover horizontal installation; 2 x 4P: fixed INV320...630 source changeover horizontal installation
- Number of vertical modules [50 mm]
- 10 module(s): NSX400...630 source changeover without earth leakage protection , direct in 650 mm Widecubicle; 10 module(s): INS320...630 source changeover, direct in 650 mm Widecubicle; 10 module(s): INV320...630 source changeover, direct in 650 mm Widecubicle
- Standards
- IEC 61439-2
- Product certifications
- ASTA
- Material
- Sheet steel
- Protective treatment
- Electrophoresis treatment and hot-polymerised polyester epoxy powder
- Surface finish
- Matt; Textured
- Colour
- White (RAL 9003)
- Width
- 386 mm
- Height
- 450 mm
- Product weight
- 4.56 kg
- Functional unit
- 650 mm 400 mm PrismaSeT P cubicle ComPact INS320...630 source changeover fixed direct front rotary handle horizontal 3P 2 direct 10 12.5 mm; 650 mm 400 mm PrismaSeT P cubicle ComPact INS320...630 source changeover fixed direct front rotary handle horizontal 4P 2 direct 10 12.5 mm; 650 mm 400 mm PrismaSeT P cubicle ComPact INV320...630 source changeover fixed direct front rotary handle horizontal 3P 2 direct 10 12.5 mm; 650 mm 400 mm PrismaSeT P cubicle ComPact INV320...630 source changeover fixed direct front rotary handle horizontal 4P 2 direct 10 12.5 mm; 650 mm 400 mm PrismaSeT P cubicle source changeover NSX400...630 source changeover without fixed direct front rotary handle horizontal 3P 2 direct 10 12.5 mm; 650 mm 400 mm PrismaSeT P cubicle source changeover NSX400...630 source changeover without fixed direct front rotary handle horizontal 4P 2 direct 10 12.5 mm
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 2
- Warranty (in months)
- 18
- Perforated
- No
- Surface protection
- Powder coating
- Country of origin
- Italy
Standards & Compliance
- HS Code
- 7326.90
Cross References
- EAN 3606481874412
- SAP 1200546683
