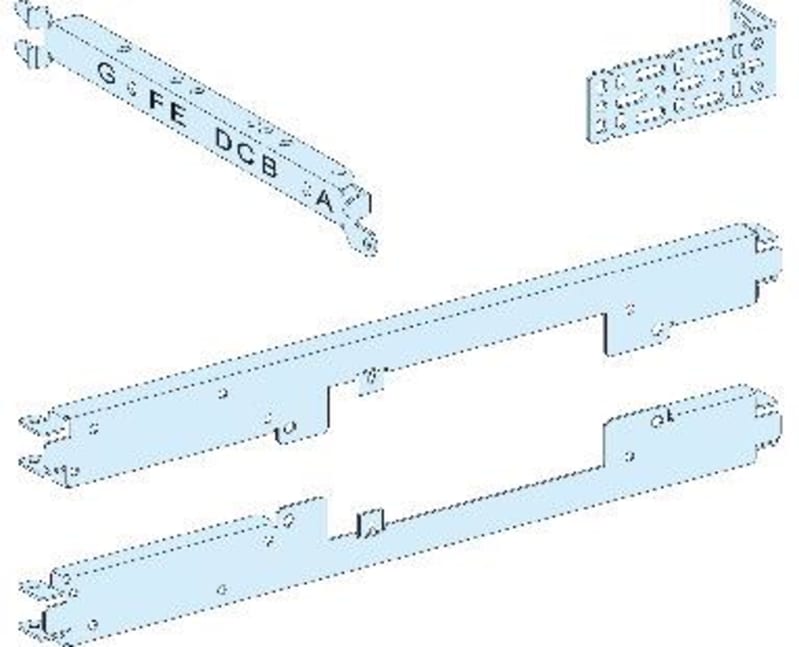

Mounting plate NSX250 Horizontal Changeover switch P
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric LVS03417 Mounting plate for NSX100-250-horizontal mounting-changeover switch-PrismaSeT P-for 650mm section.
Technical Specifications
- Manufacturer part number (MPN)
- LVS03417
- EAN / GTIN
- 3606481874306
- Sales unit
- pcs
- Package quantity
- 8 pcs
- Range
- PrismaSeT
- Range of product
- PrismaSeT P
- Product or component type
- Mounting plate
- Accessory / separate part category
- Installation accessory
- Range compatibility
- PrismaSeT PrismaSeT P cubicle
- installation description
- Cubicle - width 650 mm depth 400 mm; Cubicle - width 650 mm depth 600 mm
- Installed device
- Source changeover: fixed BA controller - horizontal installation; Source changeover: fixed NSX100...250 source changeover - control: remote control - horizontal installation; Source changeover: fixed UA controller - horizontal installation
- Poles description
- 2 x 3P: fixed NSX100...250 source changeover horizontal installation; 2 x 4P: fixed NSX100...250 source changeover horizontal installation
- Number of vertical modules [50 mm]
- 4 module(s): BA controller, direct in 650 mm Widecubicle; 8 module(s): NSX100...250 source changeover, direct in 650 mm Widecubicle; 4 module(s): UA controller, direct in 650 mm Widecubicle
- Standards
- IEC 61439-2
- Product certifications
- ASTA
- Material
- Sheet steel
- Protective treatment
- Electrophoresis treatment and hot-polymerised polyester epoxy powder
- Surface finish
- Matt; Textured
- Colour
- White (RAL 9003)
- Width
- 650 mm
- Height
- 200 mm
- Product weight
- 3 kg
- Functional unit
- 650 mm 600 mm PrismaSeT P cubicle source changeover BA controller fixed horizontal 1 direct 4 12.5 mm; 650 mm 400 mm PrismaSeT P cubicle source changeover NSX100...250 source changeover fixed remote control horizontal 3P 2 direct 8 12.5 mm; 650 mm 400 mm PrismaSeT P cubicle source changeover NSX100...250 source changeover fixed remote control horizontal 4P 2 direct 8 12.5 mm; 650 mm 600 mm PrismaSeT P cubicle source changeover UA controller fixed horizontal 1 direct 4 12.5 mm
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 8
- Number of Units in Package 3
- 32
- Warranty (in months)
- 18
- Perforated
- No
- Surface protection
- Powder coating
- Country of origin
- Italy
Standards & Compliance
- HS Code
- 7326.90
Cross References
- EAN 3606481874306
- SAP 1200546672
- Code 82879804
Product Documentation
