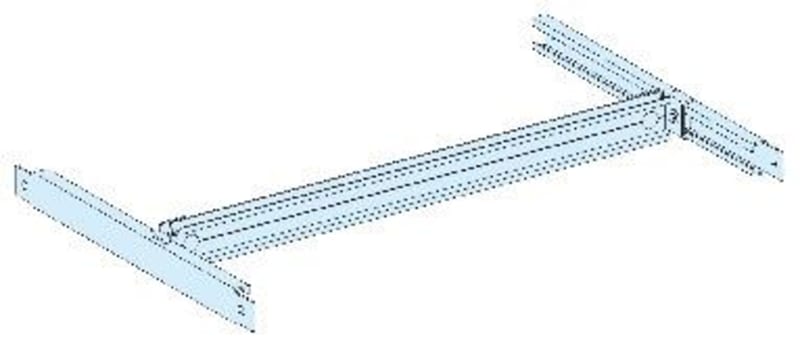

Mounting rail - adjustable - Mod.Prod. Prisma P

Mounting Rail-DIN-Adjustable-For Modular products in PrismaSeT P-for 650mm felt.

Manufacturer part number (MPN)

LVS03402

EAN / GTIN

3606481875570

Sales unit

pcs

Package quantity

20 pcs

Range

PrismaSeT

Range of product

PrismaSeT P

Product or component type

Rail

Accessory / separate part category

Installation accessory

Range compatibility

PrismaSeT PrismaSeT P

Type of rail

Adjustable; Modular

Installed device

TeSys: fixed GV2L; TeSys: fixed GV2P; TeSys: fixed GV3; ComPact: fixed NG160 without earth leakage protection - control: toggle; ComPact: fixed NG160 NA without earth leakage protection - control: toggle; ComPact: fixed NG160 with earth leakage protection - control: toggle; Altistart: ATS01N; Altistart: ATS01N103/106FT; TeSys: fixed D or K contactors <= 40 A - horizontal installation; TeSys: fixed GV2 + D or K contactors <= 40 A - horizontal installation; TeSys: fixed TeSys U - horizontal installation; PowerLogic: PM5500; PowerLogic: iEM3000; PowerLogic: PM3000; PowerLogic: PM5563RD; ComPact: fixed NSXm without earth leakage protection - control: toggle - vertical installation; ComPact: fixed NSXm with earth leakage protection - control: toggle - vertical installation

Poles description

9 x 3P: fixed GV2L; 9 x 3P: fixed GV2P; 7 x 3P: fixed GV3; 1 x 3P: fixed NG160; 1 x 4P: fixed NG160; 1 x 3P: fixed NG160 NA; 1 x 4P: fixed NG160 NA; 9 x 4P: fixed D or K contactors <= 40 A horizontal installation; 9 x 3P: fixed GV2 + D or K contactors <= 40 A horizontal installation; 9 x 3P: fixed TeSys U horizontal installation; 1 x 3P or 4P: fixed NSXm vertical installation

installation description

Cubicle - width 650 mm depth 400 mm

Enclosure nominal height

2000 mm

Number of vertical modules [50 mm]

5 module(s): ATS01N in 650 mm Widecubicle; 6 module(s): ATS01N in 650 mm Widecubicle; 4 module(s): ATS01N103/106FT in 650 mm Widecubicle; 3 module(s): D or K contactors <= 40 A, direct in 650 mm Widecubicle; 5 module(s): GV2 + D or K contactors <= 40 A, direct in 650 mm Widecubicle; 3 module(s): GV2L, direct in 650 mm Widecubicle; 3 module(s): GV2P, direct in 650 mm Widecubicle; 5 module(s): GV3, direct in 650 mm Widecubicle; 4 module(s): iEM3000 in 650 mm Widecubicle; 5 module(s): NG160 without earth leakage protection , direct in 650 mm Widecubicle; 5 module(s): NG160 NA without earth leakage protection , direct in 650 mm Widecubicle; 8 module(s): NSXm without earth leakage protection , direct in 650 mm Widecubicle; 4 module(s): PM3000 in 650 mm Widecubicle; 3 module(s): PM5500 in 650 mm Widecubicle; 3 module(s): PM5563RD in 650 mm Widecubicle; 5 module(s): TeSys U, direct in 650 mm Widecubicle; 4 module(s): TeSys U, direct in 650 mm Widecubicle; 5 module(s): NG160 with earth leakage protection , direct in 650 mm Widecubicle; 8 module(s): NSXm with earth leakage protection , direct in 650 mm Widecubicle

9 mm pitches

48

Quantity per set

Set of 1

Height

30 mm

Width

563 mm

Depth

325 mm

Product weight

0.86 kg

Colour

Natural

Material

Metal

Standards

IEC 61439-1; IEC 61439-2

Product certifications

ASTA

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

3.000 cm

Package 1 Width

4.500 cm

Package 1 Length

52.000 cm

Package 1 Weight

822.000 g

Unit Type of Package 2

S04

Number of Units in Package 2

20

Package 2 Height

30.000 cm

Package 2 Width

40.000 cm

Package 2 Length

60.000 cm

Package 2 Weight

17.238 kg

Unit Type of Package 3

P12

Number of Units in Package 3

160

Package 3 Height

73.000 cm

Package 3 Width

80.000 cm

Package 3 Length

120.000 cm

Package 3 Weight

148.640 kg

Country of origin

FR

Warranty (in months)

18
