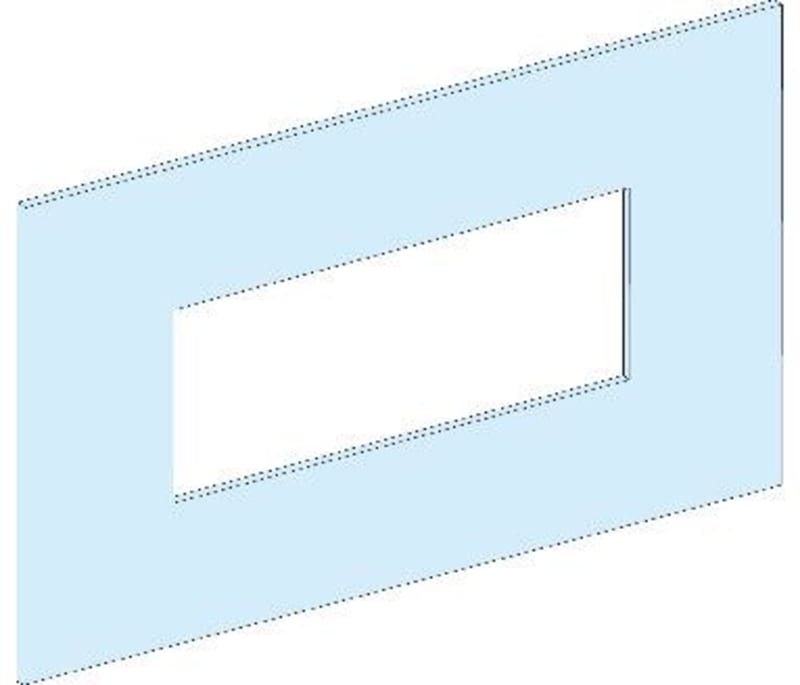

Front plate Man.omkopler INS250 PrismaSeG/P (LVS03247)
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric LVS03247 Front plate for INS250 manual changeover switch-Vertical-PrismaSeT G/P-5 modules-600/650mm section.
Technical Specifications
- Manufacturer part number (MPN)
- LVS03247
- EAN / GTIN
- 3606481872982
- Sales unit
- pcs
- Package quantity
- 10 pcs
- Range
- PrismaSeT
- Range of product
- PrismaSeT G; PrismaSeT P
- Product or component type
- Front plate
- Accessory / separate part category
- Installation accessory
- Range compatibility
- PrismaSeT PrismaSeT G enclosure; PrismaSeT PrismaSeT P cubicle
- Type of front plate
- Cut-out
- Installed device
- ComPact: fixed INS250 source changeover - control: direct front rotary handle - vertical installation
- Poles description
- 1 x 3P: mounting plate support: INS250 source changeover vertical installation; 1 x 4P: mounting plate support: INS250 source changeover vertical installation; 2 x 3P: mounting plate support: INS250 source changeover vertical installation; 2 x 4P: mounting plate support: INS250 source changeover vertical installation
- Operating position
- Vertical
- Enclosure/cubicle description
- Floor-standing enclosure - width 600 mm; Wall-mounted enclosure - width 600 mm; Cubicle - width 650 mm depth 400 mm
- Connection position
- Front connection; Direct connection
- Number of vertical modules [50 mm]
- 5
- Standards
- IEC 61439-1; IEC 61439-2
- Product certifications
- ASTA
- Material
- Steel
- Protective treatment
- Electrophoresis treatment and hot-polymerised polyester epoxy powder
- Surface finish
- Matt; Textured
- Colour
- White (RAL 9003)
- Width
- 500 mm
- Height
- 250 mm
- Product weight
- 0.9 kg
- Quantity per set
- Set of 1
- functional unit
- 650 mm 400 mm PrismaSeT P cubicle ComPact INS250 source changeover fixed direct front rotary handle vertical 3P 1 direct 9; 650 mm 400 mm PrismaSeT P cubicle ComPact INS250 source changeover fixed direct front rotary handle vertical 4P 1 direct 9; 600 mm PrismaSeT G floor-standing enclosure ComPact INS250 source changeover fixed direct front rotary handle vertical 3P 2 front connection 10; 600 mm PrismaSeT G wall-mounted enclosure ComPact INS250 source changeover fixed direct front rotary handle vertical 3P 2 front connection 10; 600 mm PrismaSeT G floor-standing enclosure ComPact INS250 source changeover fixed direct front rotary handle vertical 4P 2 front connection 10; 600 mm PrismaSeT G wall-mounted enclosure ComPact INS250 source changeover fixed direct front rotary handle vertical 4P 2 front connection 10
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 9
- Number of Units in Package 3
- 72
- Warranty (in months)
- 18
- Suitable for enclosure building width
- 600 mm
- Number of height units
- 5
- Surface finishing
- Powder coating
- Country of origin
- France
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 3606481872982
- SAP 1200546635
- Code 82879788
Product Documentation
More from Schneider Electric
Schneider Electric
WALL-Mount Cabinet S3D without Plate 8X6X2
NSYS3D8620
Schneider Electric
Wheel-VENDERH.3POS.Return F.V/H (ZB4BD59)
Schneider Electric
Schneider Electric Circuit breaker, ComPacT NSXm 63B, 25KA/415VAC, 3 poles, TMD trip unit 50A, EverLink lugs C11B3TM050L
Schneider Electric

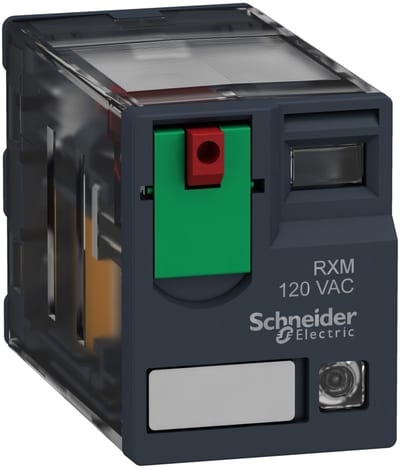

Schneider Electric Miniature plug-in relay, 6 A, 4 CO, LED, 48 V AC RXM4AB2E7
Schneider Electric

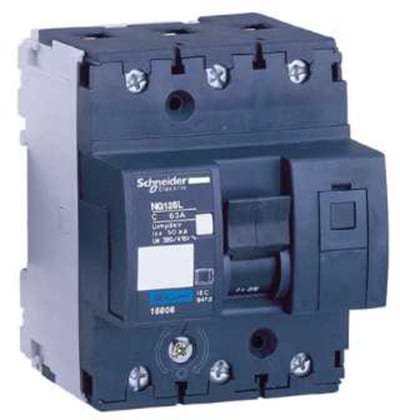

NG125L/C 40-3 Modular Power Switch
18804
Schneider Electric

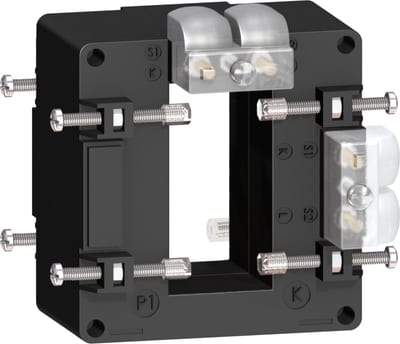

Current Transformer 800/5 RAIL 32X65
METSECT5DA080
Schneider Electric

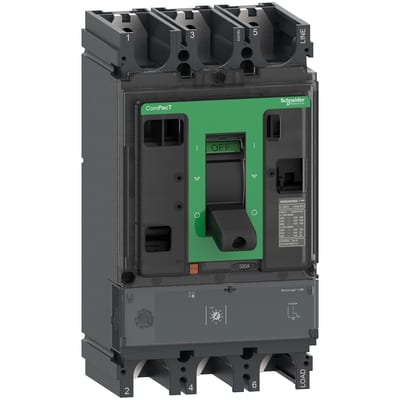

Schneider Electric Circuit breaker, ComPacT NSX630HB1, 75KA/690VAC, 3 poles, MicroLogic 1.3M trip unit 500A C63V31M500
Schneider Electric

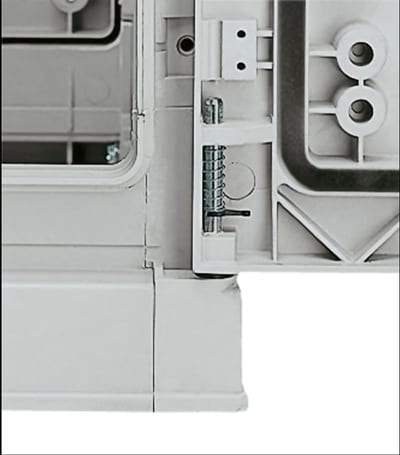

Schneider Electric Floor standing encl.polyester vers.PLAZT w/open plinth+canopy 1250X500X320 IP44 NSYPLAZT1253G
