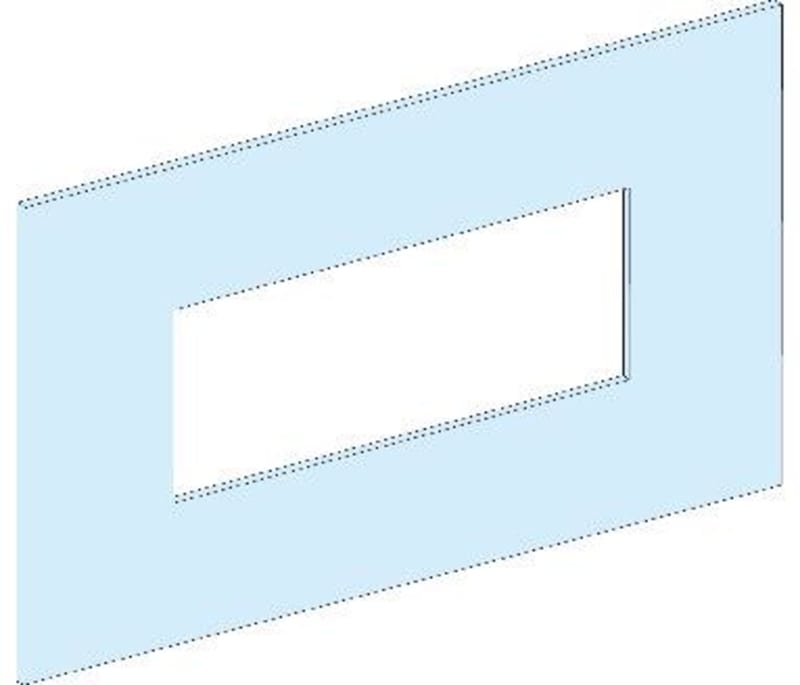

Front plate Man.omkopler INS250 PrismaSeG/P (LVS03235)
Part numberLVS03235EAN / GTIN3606481872289HS code8538.90
Enclosures
Enclosure Accessories
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric LVS03235 Front plate for Manual omkopler INS250-PrismaSeT G/P-5 modules-for 600/650mm section.
Technical Specifications
- Manufacturer part number (MPN)
- LVS03235
- EAN / GTIN
- 3606481872289
- Sales unit
- pcs
- Package quantity
- 10 pcs
- Range
- PrismaSeT
- Range of product
- PrismaSeT G; PrismaSeT P
- Product or component type
- Front plate
- Accessory / separate part category
- Installation accessory
- Range compatibility
- PrismaSeT PrismaSeT G enclosure; PrismaSeT PrismaSeT P cubicle
- Type of front plate
- Cut-out
- Installed device
- ComPact: fixed INS250 source changeover - control: mechanical interlock - vertical installation; ComPact: fixed INV250 source changeover - control: mechanical interlock - vertical installation
- Poles description
- 1 x 3P: mounting plate support: INS250 source changeover vertical installation; 1 x 4P: mounting plate support: INS250 source changeover vertical installation; 2 x 3P: mounting plate support: INS250 source changeover vertical installation; 2 x 4P: mounting plate support: INS250 source changeover vertical installation; 1 x 3P: mounting plate support: INV250 source changeover vertical installation; 1 x 4P: mounting plate support: INV250 source changeover vertical installation; 2 x 3P: mounting plate support: INV250 source changeover vertical installation; 2 x 4P: mounting plate support: INV250 source changeover vertical installation
- Operating position
- Vertical
- Enclosure/cubicle description
- Floor-standing enclosure - width 600 mm; Wall-mounted enclosure - width 600 mm; Cubicle - width 650 mm depth 400 mm
- Connection position
- Direct connection; Front connection
- Number of vertical modules [50 mm]
- 5
- Standards
- IEC 61439-1; IEC 61439-2
- Product certifications
- ASTA
- Material
- Steel
- Protective treatment
- Electrophoresis treatment and hot-polymerised polyester epoxy powder
- Surface finish
- Matt; Textured
- Colour
- White (RAL 9003)
- Width
- 500 mm
- Height
- 250 mm
- Product weight
- 0.76 kg
- Quantity per set
- Set of 1
- functional unit
- 650 mm 400 mm PrismaSeT P cubicle ComPact INS250 source changeover fixed mechanical interlock vertical 3P 2 direct 9; 650 mm 400 mm PrismaSeT P cubicle ComPact INS250 source changeover fixed mechanical interlock vertical 4P 2 direct 9; 650 mm 400 mm PrismaSeT P cubicle ComPact INV250 source changeover fixed mechanical interlock vertical 3P 2 direct 9; 650 mm 400 mm PrismaSeT P cubicle ComPact INV250 source changeover fixed mechanical interlock vertical 4P 2 direct 9; 600 mm PrismaSeT G floor-standing enclosure ComPact INS250 source changeover fixed mechanical interlock vertical 3P 1 front connection 10; 600 mm PrismaSeT G wall-mounted enclosure ComPact INS250 source changeover fixed mechanical interlock vertical 3P 1 front connection 10; 600 mm PrismaSeT G floor-standing enclosure ComPact INS250 source changeover fixed mechanical interlock vertical 4P 1 front connection 10; 600 mm PrismaSeT G wall-mounted enclosure ComPact INS250 source changeover fixed mechanical interlock vertical 4P 1 front connection 10; 600 mm PrismaSeT G floor-standing enclosure ComPact INV250 source changeover fixed mechanical interlock vertical 3P 1 front connection 10; 600 mm PrismaSeT G wall-mounted enclosure ComPact INV250 source changeover fixed mechanical interlock vertical 3P 1 front connection 10; 600 mm PrismaSeT G floor-standing enclosure ComPact INV250 source changeover fixed mechanical interlock vertical 4P 1 front connection 10; 600 mm PrismaSeT G wall-mounted enclosure ComPact INV250 source changeover fixed mechanical interlock vertical 4P 1 front connection 10
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 10
- Number of Units in Package 3
- 10
- Warranty (in months)
- 18
- Suitable for enclosure building width
- 600 mm
- Number of height units
- 5
- Surface finishing
- Powder coating
- Country of origin
- France
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 3606481872289
- SAP 1200546629
- Code 82879319
