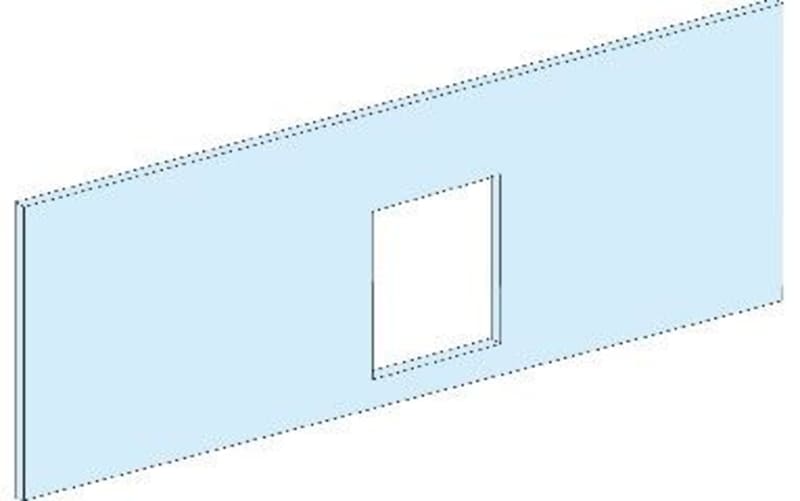

Front plate NSX250 HORIZONTAL-4M-MOTOR-G
Part numberLVS03234EAN / GTIN3606481872296HS code8538.90
Enclosures
Enclosure Accessories
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric LVS03234 Front plate for NSX100/250 with motor-Horizontal-4 modules-PrismaSeT G-600mm section.
Technical Specifications
- Manufacturer part number (MPN)
- LVS03234
- EAN / GTIN
- 3606481872296
- Sales unit
- pcs
- Package quantity
- 10 pcs
- Range
- PrismaSeT
- Range of product
- PrismaSeT G
- Product or component type
- Front plate
- Accessory / separate part category
- Installation accessory
- Range compatibility
- PrismaSeT PrismaSeT G enclosure
- Type of front plate
- Cut-out
- Installed device
- ComPact: fixed NSX100...160 without earth leakage protection - control: motor mechanism - horizontal installation; ComPact: fixed NSX250 without earth leakage protection - control: motor mechanism - horizontal installation; Enerlin'X: fixed FDM121 - control: remote control - vertical installation
- Poles description
- 1 x 3P: mounting plate support: NSX100...160 horizontal installation; 1 x 4P: mounting plate support: NSX100...160 horizontal installation; 1 x 3P: mounting plate support: NSX250 horizontal installation; 1 x 4P: mounting plate support: NSX250 horizontal installation
- Operating position
- Horizontal
- Enclosure/cubicle description
- Floor-standing enclosure - width 600 mm; Wall-mounted enclosure - width 600 mm; Floor-standing enclosure + duct - width 600 + 300 mm; Wall-mounted enclosure + duct - width 600 + 300 mm
- Connection position
- Direct connection
- Number of vertical modules [50 mm]
- 4
- Standards
- IEC 61439-2; IEC 61439-1
- Product certifications
- ASTA
- Protective treatment
- Electrophoresis treatment and hot-polymerised polyester epoxy powder
- Surface finish
- Textured; Matt
- Colour
- White (RAL 9003)
- Height
- 200 mm
- Product weight
- 0.8 kg
- Quantity per set
- Set of 1
- functional unit
- 600 mm PrismaSeT G floor-standing enclosure Enerlin'X FDM121 fixed remote control vertical 1; 600 mm PrismaSeT G wall-mounted enclosure Enerlin'X FDM121 fixed remote control vertical 1; 600 + 300 mm PrismaSeT G floor-standing enclosure + duct Enerlin'X FDM121 fixed remote control vertical 1; 600 + 300 mm PrismaSeT G wall-mounted enclosure + duct Enerlin'X FDM121 fixed remote control vertical 1; 600 + 300 mm PrismaSeT G floor-standing enclosure + duct ComPact NSX100...160 without fixed motor mechanism horizontal 3P 1 direct with long terminal shield 4; 600 + 300 mm PrismaSeT G wall-mounted enclosure + duct ComPact NSX100...160 without fixed motor mechanism horizontal 3P 1 direct with long terminal shield 4; 600 + 300 mm PrismaSeT G floor-standing enclosure + duct ComPact NSX100...160 without fixed motor mechanism horizontal 4P 1 direct with long terminal shield 4; 600 + 300 mm PrismaSeT G wall-mounted enclosure + duct ComPact NSX100...160 without fixed motor mechanism horizontal 4P 1 direct with long terminal shield 4; 600 + 300 mm PrismaSeT G floor-standing enclosure + duct ComPact NSX250 without fixed motor mechanism horizontal 3P 1 direct with long terminal shield 4; 600 + 300 mm PrismaSeT G wall-mounted enclosure + duct ComPact NSX250 without fixed motor mechanism horizontal 3P 1 direct with long terminal shield 4; 600 + 300 mm PrismaSeT G floor-standing enclosure + duct ComPact NSX250 without fixed motor mechanism horizontal 4P 1 direct with long terminal shield 4; 600 + 300 mm PrismaSeT G wall-mounted enclosure + duct ComPact NSX250 without fixed motor mechanism horizontal 4P 1 direct with long terminal shield 4
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 14
- Number of Units in Package 3
- 168
- Warranty (in months)
- 18
- Width
- 500 mm
- Suitable for enclosure building width
- 600 mm
- Material
- Steel
- Number of height units
- 4
- Surface finishing
- Powder coating
- Country of origin
- France
