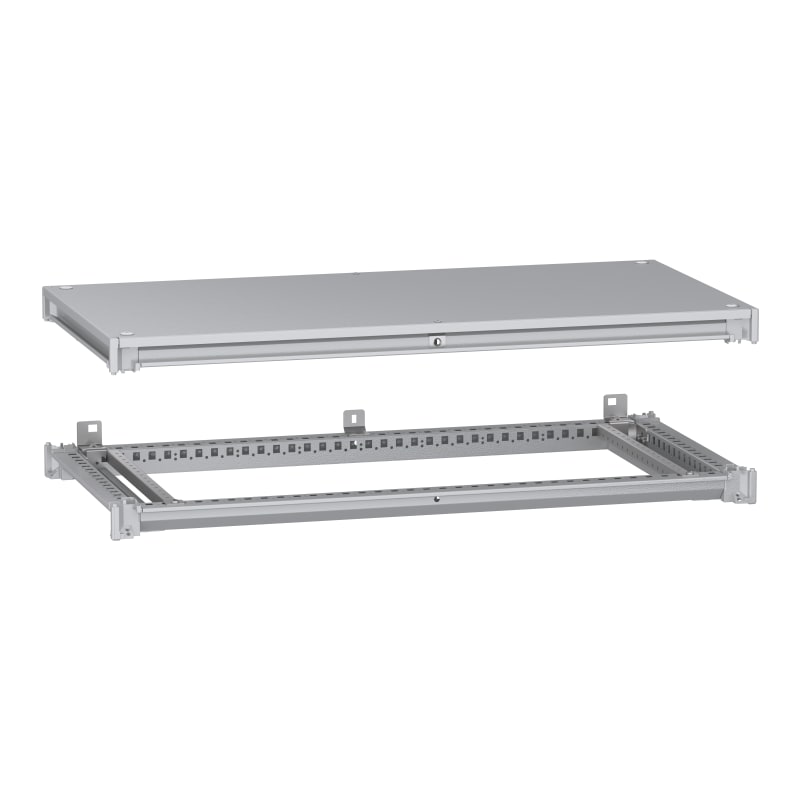

Upper+lower frame SFN 1000X500
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric NSYSFNC105 Upper and lower frame, PanelSeT SFN, 1000x500.
Technical Specifications
- Manufacturer part number (MPN)
- NSYSFNC105
- EAN / GTIN
- 3606486104095
- Sales unit
- pcs
- Dimensions
- 1000×500 mm
- Range
- PanelSeT
- Accessory / separate part category
- Enclosure accessory
- Application
- Multi-purpose
- Product or component type
- Framework kit
- For enclosure nominal dimensions
- - W: 1000 mm D: 500 mm
- Mounting location
- Bottom of vertical uprights; Top of vertical uprights
- Range compatibility
- PanelSeT SFN
- Device composition
- 1 bottom frame; 1 roof; 1 top frame
- Quantity per set
- Set of 1
- Material
- Steel
- Colour
- Grey (RAL 7035)
- Surface finish
- Epoxy-polyester powder
- Fixing mode
- By screws - each corner of enclosure location
- Height
- 110 mm
- Width
- 1000 mm
- Depth
- 500 mm
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 8
- Warranty (in months)
- 18
- Model
- Profile
- Suitable for enclosure building width
- 1000 mm
- Suitable for enclosure building depth
- 500 mm
- Max. load capacity
- 1500 kg
- RAL-number
- 7035
- Country of origin
- France
Standards & Compliance
- HS Code
- 9403.99
Cross References
- EAN 3606486104095
- SAP 1200698235
- Code 83799602
Product Documentation
More from Schneider Electric
Schneider Electric

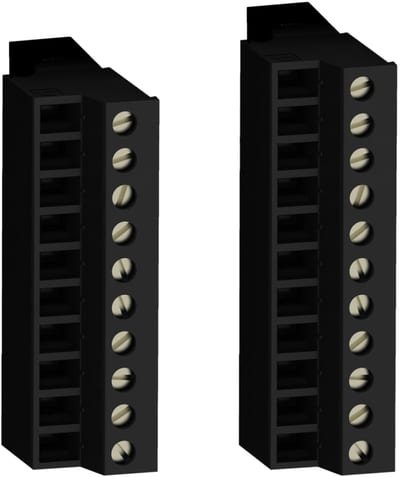

Konnektorsett M221M & TM3 - IO
TMAT2MSET
Schneider Electric

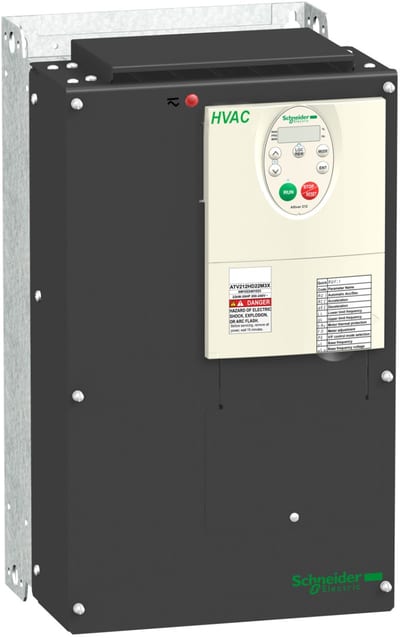

Schneider Electric variable speed drive, Altivar 212, 22kW, 30hp, 480V, 3 phases, with EMC, IP21 ATV212HD22N4
Schneider Electric

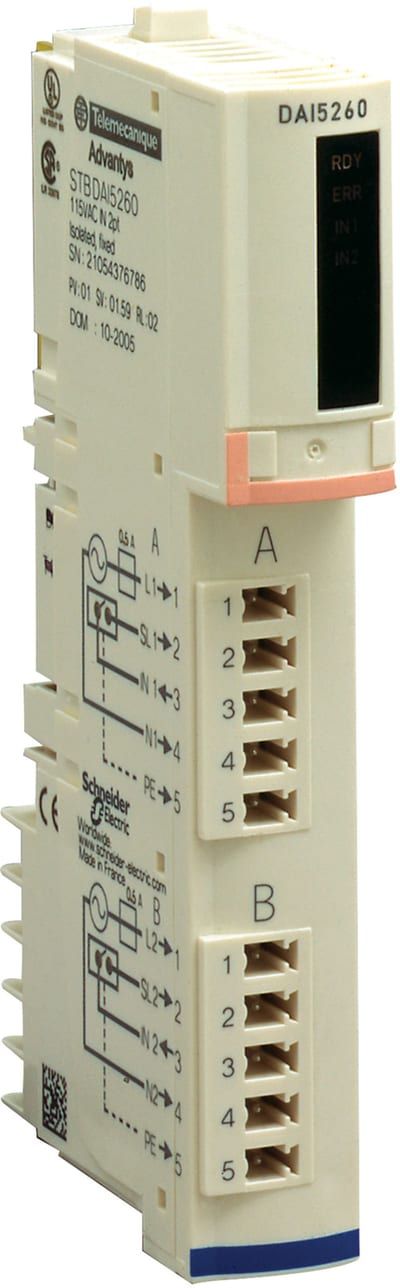

Schneider Electric standard digital input kit STB - 115 V AC - 2 I STBDAI5260K
Schneider Electric
Schneider Electric Control relay, TeSys Deca, 5NO, <=690V, 250V DC standard coil, snap-in terminals CAD50AUD
Schneider Electric

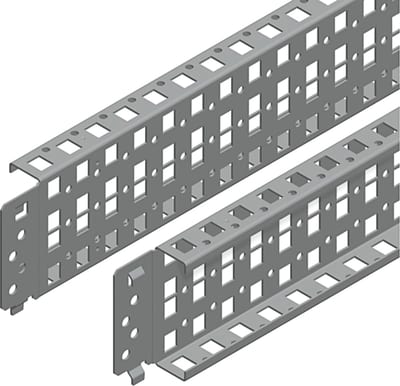

Schneider Electric Quick fixing cross rails, PanelSeT SFN, PanelSeT SF, PanelSeT SM, H90 W500MM, 3 rows, set of 2 NSYSQCR9050
Schneider Electric

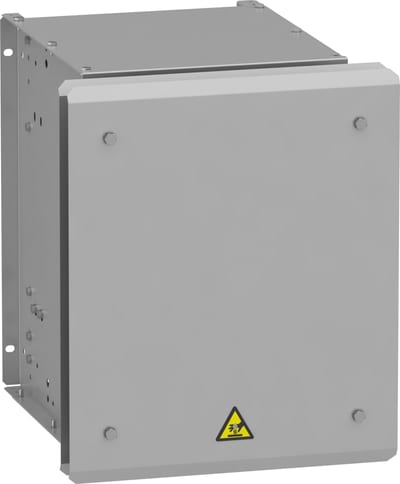

Schneider Electric braking resistor - 5 ohms - 1.9 kW - IP23 VW3A7736
Schneider Electric

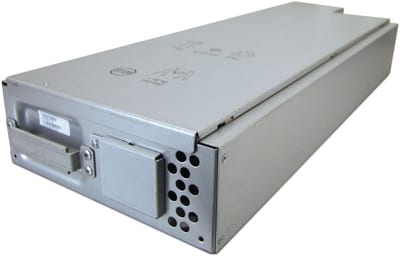

Schneider Electric APC Replacement Battery Cartridge #118 with 2 Year Warranty APCRBC118
Schneider Electric

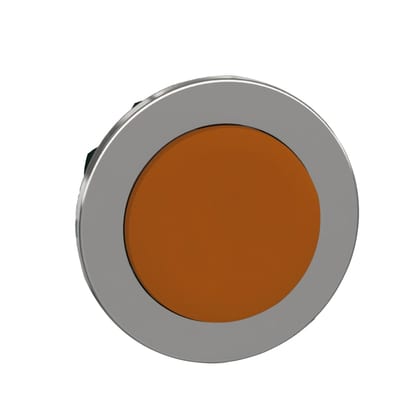

Push-button, flush, orange, raised
