Upper+lower frame SFN 400X500
Pricing
Request a quote
We reply within 24 hours
Product Description

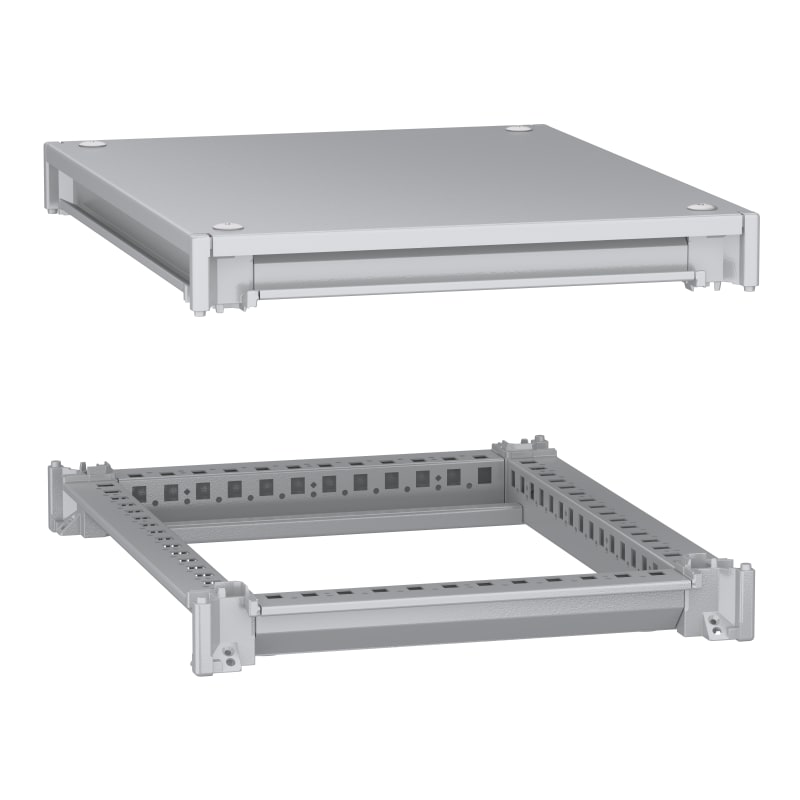

Schneider Electric NSYSFNC45 Upper and lower frame, PanelSeT SFN, 400x500.
Technical Specifications
- Manufacturer part number (MPN)
- NSYSFNC45
- EAN / GTIN
- 3606486103951
- Sales unit
- pcs
- Dimensions
- 400×500 mm
- Range
- PanelSeT
- Accessory / separate part category
- Enclosure accessory
- Application
- Multi-purpose
- Product or component type
- Framework kit
- For enclosure nominal dimensions
- - W: 400 mm D: 500 mm
- Mounting location
- Bottom of vertical uprights; Top of vertical uprights
- Range compatibility
- PanelSeT SFN
- Device composition
- 1 bottom frame; 1 roof; 1 top frame
- Quantity per set
- Set of 1
- Material
- Steel
- Colour
- Grey (RAL 7035)
- Surface finish
- Epoxy-polyester powder
- Fixing mode
- By screws - each corner of enclosure location
- Height
- 110 mm
- Width
- 400 mm
- Depth
- 500 mm
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 20
- Country of origin
- FR
- Warranty (in months)
- 18
- Model
- Profile
- Suitable for enclosure building width
- 400 mm
- Suitable for enclosure building depth
- 500 mm
- Max. load capacity
- 1500 kg
- RAL-number
- 7035
Standards & Compliance
- HS Code
- 9403.99
Cross References
- EAN 3606486103951
- SAP 1200698225
- Code 83799594
Product Documentation
More from Schneider Electric
Schneider Electric
Schneider Electric Contactor, TeSys Deca, 3P(3NO), AC-3/3E, <=440V, 9A, 42V AC 50/60Hz coil, snap-in terminals LC1D09AD7
Schneider Electric
Side panel PrismaSeT G 6M IP30
LVS01040
Schneider Electric
Schneider Electric Circuit breaker, ComPacT NSXm 160H, 70KA/415VAC, 4 poles 4D (neutral fully protected), TMD trip unit 100A, EverLink lugs C11H4TM100L
Schneider Electric
Rain hood STAINLESS8X4
NSYSCX8040
Schneider Electric
Selector switch flush for LED 3 pos red (ZB5FK1743)
Schneider Electric
Schneider Electric braking resistor - 2.5 ohms - 3.2 kW - IP23 VW3A7737
Schneider Electric

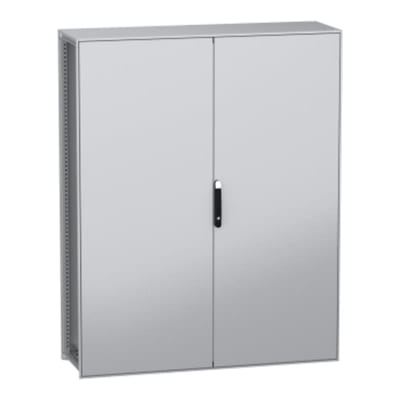

Schneider Electric Floor standing modular electrical enclosure, PanelSeT SFN, decarbonized steel, 2000X1600X500MM, 2 doors, IP55 NSYSFN2016502D
Schneider Electric

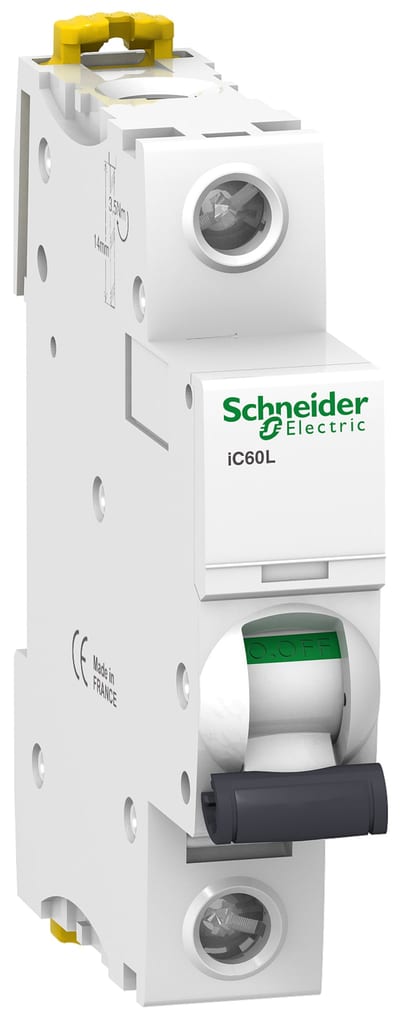

Schneider Electric A9F92101 ACTI9 IC60L Miniature Circuit Breaker 1P 1 A, Curve Z
