Upper+lower frame SFN 300X600
Pricing
Request a quote
We reply within 24 hours
Product Description

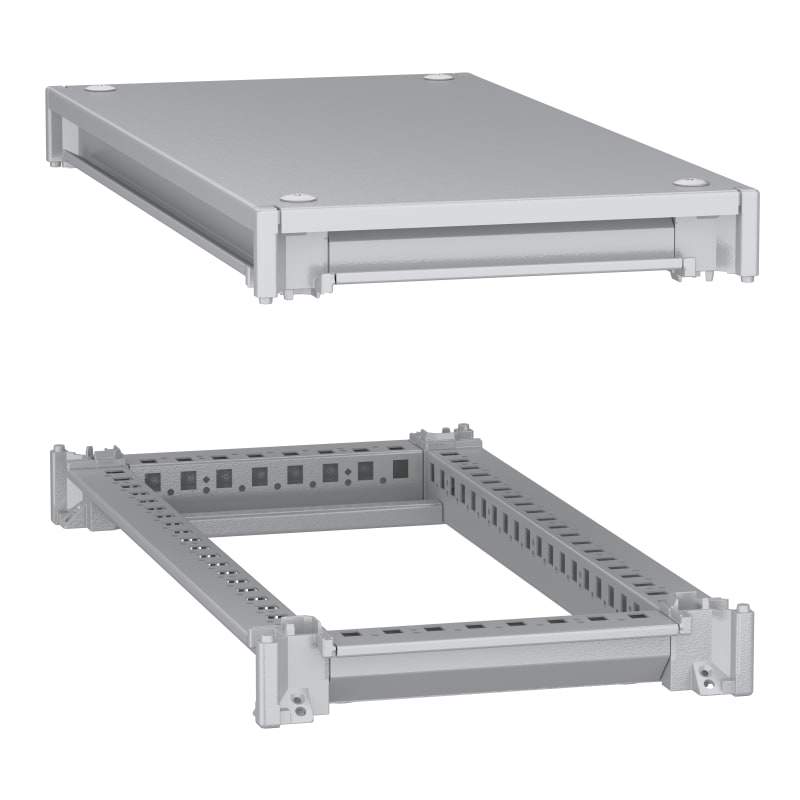

Schneider Electric NSYSFNC36 Upper and lower frame, PanelSeT SFN, 300x600.
Technical Specifications
- Manufacturer part number (MPN)
- NSYSFNC36
- EAN / GTIN
- 3606486103920
- Sales unit
- pcs
- Dimensions
- 300×600 mm
- Range
- PanelSeT
- Accessory / separate part category
- Enclosure accessory
- Application
- Multi-purpose
- Product or component type
- Framework kit
- For enclosure nominal dimensions
- - H: 2000 mm W: 300 mm D: 600 mm
- Mounting location
- Bottom of vertical uprights; Top of vertical uprights
- Range compatibility
- PanelSeT SFN
- Device composition
- 1 bottom frame; 1 roof; 1 top frame
- Quantity per set
- Set of 1
- Material
- Steel
- Colour
- Grey (RAL 7035)
- Surface finish
- Epoxy-polyester powder
- Fixing mode
- By screws - each corner of enclosure location
- Height
- 110 mm
- Width
- 300 mm
- Depth
- 600 mm
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 20
- Warranty (in months)
- 18
- Model
- Profile
- Suitable for enclosure building width
- 300 mm
- Suitable for enclosure building depth
- 600 mm
- Max. load capacity
- 1500 kg
- RAL-number
- 7035
- Country of origin
- France
Standards & Compliance
- HS Code
- 9403.99
Cross References
- EAN 3606486103920
- SAP 1200698222
- Code 83799825
Product Documentation
More from Schneider Electric
Schneider Electric
Schneider Electric XF or MX voltage release, diagnostics and communicating, Masterpact MTZ1/2/3, 380/480 VAC 50/60 Hz, spare part LV833038SP
Schneider Electric

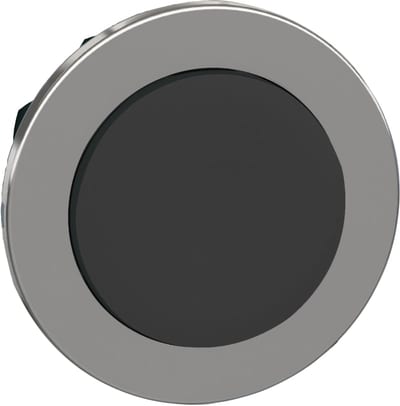

Push-button, flush, black, raised (ZB4FL2)
Schneider Electric
Schneider Electric Contactor, TeSys Deca, 3P(3NO), AC-3/3E, <=440V, 9A, 115V AC 50/60Hz coil, snap-in terminals LC1D09AFE7
Schneider Electric

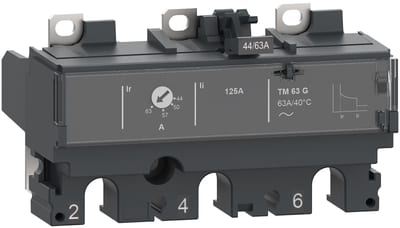

Schneider Electric Trip unit TM63G, ComPacT NSX100/160, 3 poles, thermal magnetic protections, generator protection, 63A rating C103MG063
