Doorer SFN/SM 1800X800
Pricing
Request a quote
We reply within 24 hours
Product Description

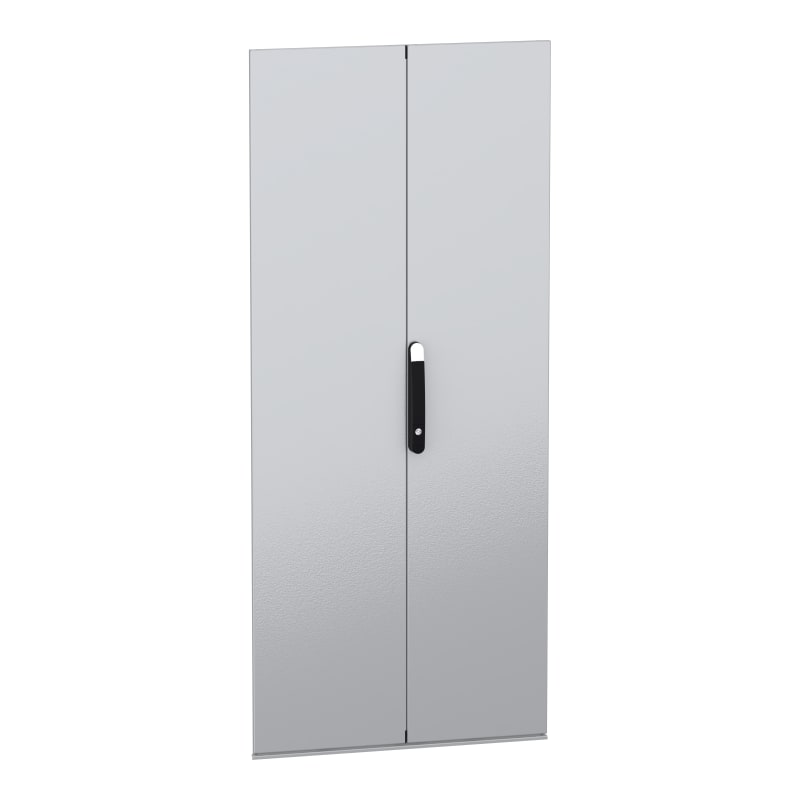

Schneider Electric NSYSFND1882D Doors, PanelSeT SFN/SM, complete with locking system, 1800x800.
Technical Specifications
- Manufacturer part number (MPN)
- NSYSFND1882D
- EAN / GTIN
- 3606486378045
- Sales unit
- pcs
- Dimensions
- 1800×800 mm
- Range
- PanelSeT
- Accessory / separate part category
- Enclosure accessory
- Product or component type
- Door
- Application
- Multi-purpose
- For enclosure nominal dimensions
- - H: 1800 mm W: 800 mm
- Mounting location
- Front
- Range compatibility
- PanelSeT SFN
- Device composition
- 1 lock with handle and 5 mm double bar insert; 1 locking bar system 4 points; 2 door; 1 locking bar system 2 points; 2 reinforcement frame; 8 hinges
- Quantity per set
- Set of 1
- Material
- Sheet steel
- Colour
- Grey (RAL 7035)
- Surface finish
- Epoxy-polyester powder
- Lock type
- Lock 5 mm double bar
- Number of locks
- 1
- Door type
- External plain
- Door opening side
- Reversible (120 °)
- Maximum load
- 60 kg/m²
- Height
- Nominal: 1766 mm
- Width
- Nominal: 769 mm
- Product weight
- 21.8 kg
- IK degree of protection
- IK10
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 10
- Warranty (in months)
- 18
- Model
- Compartment door
- Depth
- 26 mm
- EMC-version
- No
- Surface finishing
- Powder coating
- Version as glazed door
- No
- Version as door for disconnecting switch interlocking
- No
- Country of origin
- France
Standards & Compliance
- HS Code
- 9403.99
Cross References
- EAN 3606486378045
- SAP 1200698015
- Code 83799756
Product Documentation
More from Schneider Electric
Schneider Electric
Horprof Set 2DOOR with MONTPL500
NSYSMP2D5
Schneider Electric
Schneider Electric flush mounted red pushbutton head recessed ZB5FA46
Schneider Electric
Mounting Plate 14X6 (NSYMP146)
Schneider Electric
Schneider Electric flush mounted blue selector switch head 3 pos return right to center ZB5FD806
Schneider Electric
Floor-Standing Cabinet 20X12X4 U.PL.
NSYSM2012402D
Schneider Electric
Glassdoor SFN/SM 1600X600
NSYSFND166T
Schneider Electric
Selector switch flush for LED 3 pos blue (ZB4FK1863)
Schneider Electric

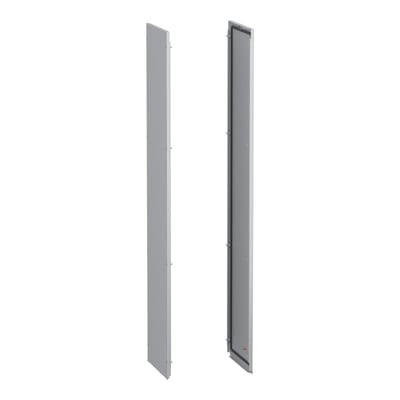

Side Plates SFN 1600X400
