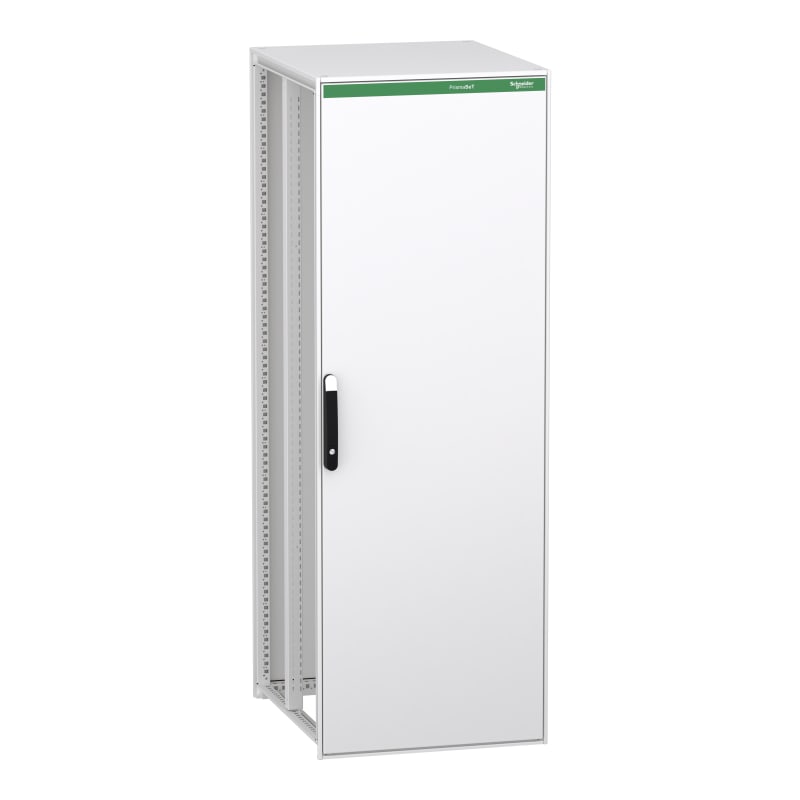

Schneider Electric Floor standing modular electrical enclosure, PrismaSeT HD, decarbonized steel, 2000X700X800MM, IP55, RAL9003 NSYSFPN20780ED
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric NSYSFPN20780ED Floor-standing cabinet for electrical distribution, PrismaSeT HD, decarbonised steel, 2000x700x800mm, IP55, RAL9003.
Technical Specifications
- Manufacturer part number (MPN)
- NSYSFPN20780ED
- EAN / GTIN
- 3606486445983
- Sales unit
- pcs
- Colour
- RAL 9003
- Dimensions
- 2000×700×800
- Range
- PrismaSeT
- Extended range
- PrismaSeT HD
- Application
- Low voltage electrical distribution
- Product or component type
- Suitable enclosure
- Enclosure nominal height
- 2000 mm
- Enclosure nominal width
- 700 mm
- Enclosure nominal depth
- 800 mm
- Enclosure mounting
- Floor-standing
- Device composition
- 1 structure: door; 1 door; 1 locking system with handle: door; 1 rear panel; 1 roof; 2 adaptor upright; 2 intermediate upright
- Structure type
- Vertical uprights joined with top and bottom frames; Formed from a single section; Perforated structure with a pitch of 25 mm; Panels and doors built into the structure
- Door opening side
- Reversible (120 °)
- Door type
- Plain front
- Mounting plate description
- Without mounting plate
- Type of gland plate
- Without gland plate
- Lock type
- 4 points lock, handle with 5 mm double bar insert front door
- Number of doors
- Front: 1 door(s)
- Accessibility for operation
- Sides of enclosure; Rear; Front
- Removable parts
- Door by screws hinge; Rear panel by screws; Roof by screws; Mounting plate bracket by screws; Sliding rail by screws; Adaptor upright by screws
- Material
- Frame: galvanised steel; Uprights: galvanised steel; Door: sheet steel; Panels: sheet steel; Hinge: zamak; Handle: polyamide 6 with 30 % fibre glass
- Surface finish
- Epoxy-polyester powder
- Product weight
- 85.6 kg
- Standards
- IEC 62208; IEC 61439-1; IEC 61439-2
- IP degree of protection
- IP55 conforming to IEC 60529
- IK degree of protection
- IK08 conforming to IEC 62262
- Environmental characteristic
- Harsh environment
- Number of Units in Package 1
- 1
- Warranty (in months)
- 18
- Width
- 700 mm
- Height
- 2000 mm
- Depth
- 800 mm
- RAL-number
- 9003
- Number of locks
- 1
- Impact strength
- IK10
- Degree of protection (IP)
- IP55
- Suitable for outdoor set-up
- No
- Surface finishing
- Powder coating
- Country of origin
- France
Standards & Compliance
- HS Code
- 9403.20
Cross References
- EAN 3606486445983
- SAP 1200697953
- Code 83799598
Product Documentation
More from Schneider Electric
Schneider Electric
Schneider Electric Motor circuit breaker, TeSys GV4, 3P, 25A, Icu 50KA, thermal magnetic, Everlink terminals GV4PE25N
Schneider Electric
Schneider Electric LED bulb with BA9S base - green - 6 V / 1.2 W DL1CD0063
Schneider Electric
Schneider Electric ZARC706 Harmony eXLhoist Rubber Protection for ZART8LS
Schneider Electric
Schneider Electric TeSys K control relay - 4 NO - <= 690 V - 110 V DC standard coil CA3KN40FD
Schneider Electric
Schneider Electric Circuit breaker, ComPacT NSX100HB2, 100KA/690VAC, 4 poles, MicroLogic 2.2 trip unit 40A C10W42D040
Schneider Electric

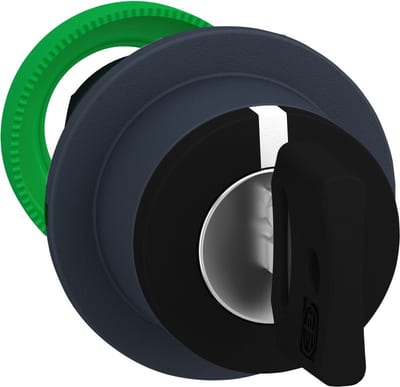

Schneider Electric flush mounted selector switch head key 455 3 pos stay put ZB5FG3
Schneider Electric

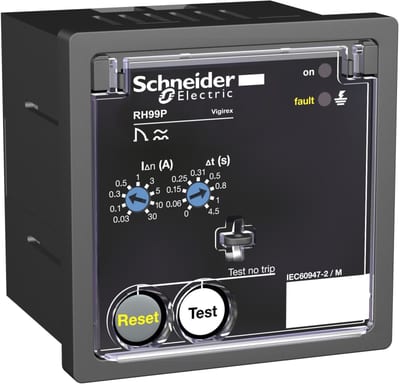

RH99P 220/240V AC MAN. Reset
56273
Schneider Electric

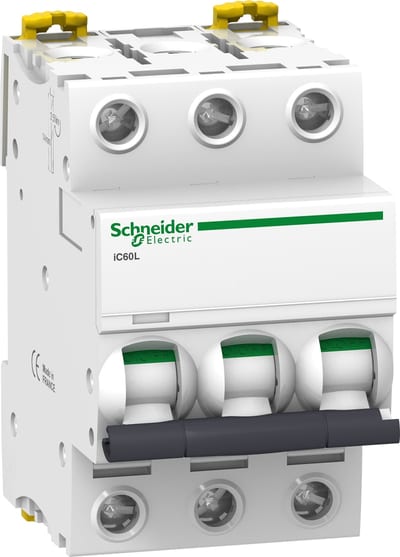

Schneider Electric A9F95320 ACTI9 IC60L Miniature Circuit Breaker 3P 20 A, Curve K
