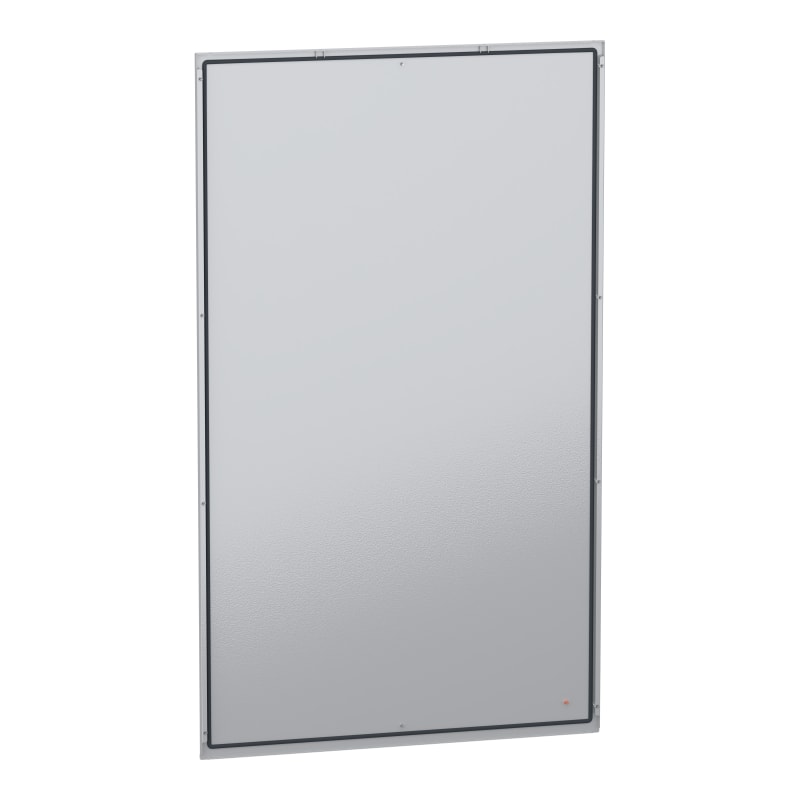

Back panel SFN 2000X1200
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric NSYBPN2012 Back panel, PanelSeT SFN, 2000x1200.
Technical Specifications
- Manufacturer part number (MPN)
- NSYBPN2012
- EAN / GTIN
- 3606486104682
- Sales unit
- pcs
- Dimensions
- 2000×1200 mm
- Range
- PanelSeT
- Accessory / separate part category
- Enclosure accessory
- Product or component type
- Rear panel
- Application
- Multi-purpose
- For enclosure nominal dimensions
- - H: 2000 mm W: 1200 mm
- Mounting location
- Rear of enclosure
- Range compatibility
- PanelSeT SFN
- Device composition
- fixing elements; 1 rear panel
- Material
- Steel
- Product weight
- 32.5 kg
- Colour
- Grey (RAL 7035)
- Surface finish
- Epoxy-polyester powder
- Fixing mode
- By screws - screw type captive - from the outside of enclosure location
- Height
- Nominal: 2000 mm
- Width
- Nominal: 1200 mm
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 4.000 cm
- Package 1 Width
- 119.000 cm
- Package 1 Length
- 202.000 cm
- Package 1 Weight
- 32.500 kg
- Unit Type of Package 2
- PAL
- Number of Units in Package 2
- 10
- Package 2 Height
- 58.000 cm
- Package 2 Width
- 120.000 cm
- Package 2 Length
- 202.000 cm
- Package 2 Weight
- 358.000 kg
- Warranty (in months)
- 18
- Suitable as side panel
- No
- Suitable as rear panel
- Yes
- Suitable for enclosure building width
- 1200 mm
- Surface finishing
- Powder coating
- RAL-number
- 7035
- With cable entry
- No
- With lock
- No
- Country of origin
- France
Standards & Compliance
- HS Code
- 9403.99
Cross References
- EAN 3606486104682
- SAP 1200698003
- Code 83799789
Product Documentation
More from Schneider Electric
Schneider Electric
Holders for rear connection MTZ1 75mm C/C
LVS04693
Schneider Electric
Bunnpl. 2DELT IP30 PrismaSeT P B400 D400
LVS08494
Schneider Electric
Schneider Electric Earth leads section 25mm², length 220mm, eyelet hole 8,3MM. Packaging unit: 10. NSYEL2225D8
Schneider Electric
Floor-Standing Cabinet 18X6X4 M.PL.
NSYSM18640P
Schneider Electric

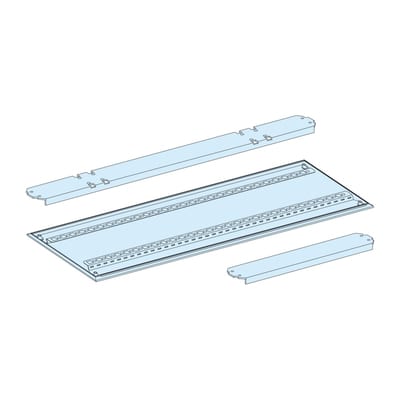

Extension Enclosure PrismaSeT G, IP55, 33 Modules, W 600 mm
LVS08319
Schneider Electric

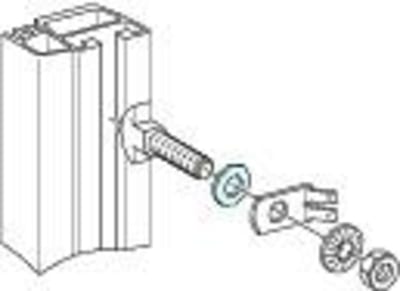

WASHERS-20 pcs-M8, Cable lug <=25 mm²
LVS04775
Schneider Electric
Floor-Standing Cabinet 12X12X4 M.PL.
NSYSM1212402DP
Schneider Electric

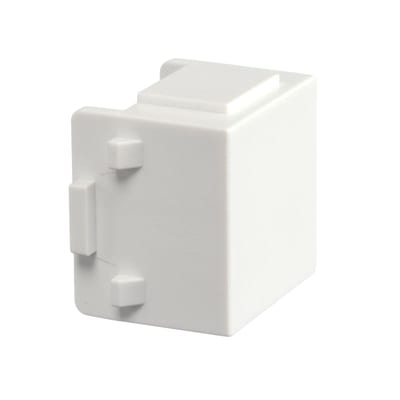

S-One blanking plug mounting box grey
