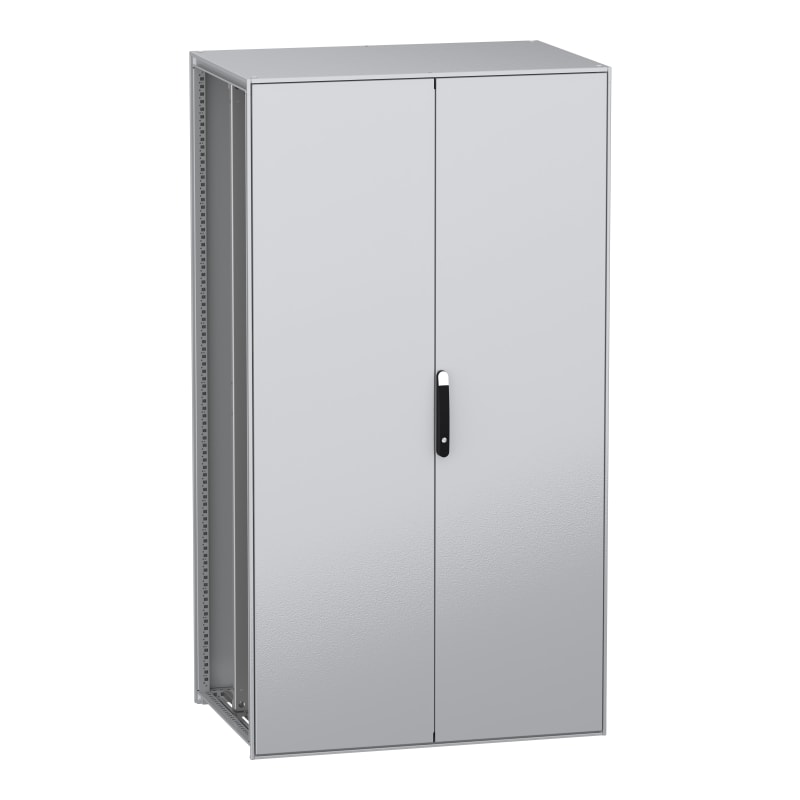

Floor-standing cabinet SFN m/m.pl 2200X1200X800 2DOOR
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric NSYSFN2212802DP Floor-standing cabinet byggbart, PanelSeT SFN, with mounting plate, IP55, 2200x1200x800 2door.
Technical Specifications
- Manufacturer part number (MPN)
- NSYSFN2212802DP
- EAN / GTIN
- 3606486103845
- Sales unit
- pcs
- Dimensions
- 2200×1200×800
- Range
- PanelSeT
- Extended range
- PanelSeT SFN
- Application
- Multi-purpose
- Product or component type
- Suitable enclosure
- Enclosure nominal height
- 2200 mm
- Enclosure nominal width
- 1200 mm
- Enclosure nominal depth
- 800 mm
- Enclosure mounting
- Floor-standing
- Device composition
- 2 sliding rails; 4 mounting plate quick-fixing brackets: right door; 1 structure; 1 rear panel; 1 roof; 1 mounting plate; 2 door; 1 locking system with handle; 1 locking bar system 4 points: right door; 1 locking bar system 2 points: left door
- Structure type
- Formed from a single section; Vertical uprights joined with top and bottom frames; Perforated structure with a pitch of 25 mm; Panels and doors built into the structure
- Door opening side
- Left (120 °); Right (120 °)
- Door type
- Plain front
- Mounting plate description
- Plain
- Type of gland plate
- Without gland plate
- Lock type
- 4 points lock, handle with 5 mm double bar insert front right door
- Number of doors
- Front face: 2 door(s)
- Accessibility for operation
- Front; Sides of enclosure; Rear
- Removable parts
- Door by screws hinge; Mounting plate by screws mounting plate bracket; Rear panel by screws; Roof by screws; Mounting plate bracket by screws; Sliding rail by screws
- Material
- Frame: galvanised steel; Uprights: galvanised steel; Door: sheet steel; Panels: sheet steel; Hinge: zamak; Handle: polyamide 6 with 30 % fibre glass
- Surface finish
- Epoxy-polyester powder
- Colour
- Enclosure: grey (RAL 7035); Handle: black (RAL 9005)
- Product weight
- 181.1 kg
- Standards
- IEC 62208; UL; CUL
- NEMA degree of protection
- NEMA 3R/12
- IP degree of protection
- IP55 conforming to IEC 60529
- IK degree of protection
- IK10 conforming to IEC 62262
- Number of Units in Package 1
- 1
- Warranty (in months)
- 18
- Width
- 1200 mm
- Height
- 2200 mm
- Depth
- 800 mm
- RAL-number
- 7035
- With mounting plate
- Yes
- Number of locks
- 1
- Suitable for wall mounting
- No
- EMC-version
- No
- With glazed door
- No
- Couplable
- Yes
- Impact strength
- IK10
- Degree of protection (IP)
- IP55
- Suitable for outdoor set-up
- No
- Suitable for metrical mounting
- Yes
- Mounting plate depth-adjustable
- Yes
- Connectable
- Yes
- With ventilation door
- No
- Wall fastening possible
- Yes
- Surface finishing
- Powder coating
- With rear door
- No
- Suitable for wall built-in
- No
- With cover
- No
- With door
- Yes
- Pitched roof
- No
- Pole fastening
- No
- Transparent cover
- No
- Suitable for outdoor installation
- No
- Floor standing wall model
- Yes
- Freestanding
- No
- Corner model
- No
- Intermediate mounting
- Yes
- Country of origin
- France
Standards & Compliance
- HS Code
- 9403.20
Cross References
- EAN 3606486103845
- SAP 1200698217
- Code 83799674
Product Documentation
More from Schneider Electric
Schneider Electric
Schneider Electric Vertical Profile 1800mm (NSYVR18)
Schneider Electric
Basefront 200X300 (NSYSPF3200)
Schneider Electric
Fr.connection.bottom MTZ32 3PFAST res.
LV847942SP
Schneider Electric
Floor-Standing Cabinet 20X8X5 M.PL.
NSYSM20850P
Schneider Electric
Schneider Electric Control relay, TeSys Deca, 3NO+2NC, <=690V, 60V DC standard coil, snap-in terminals CAD32AND
Schneider Electric

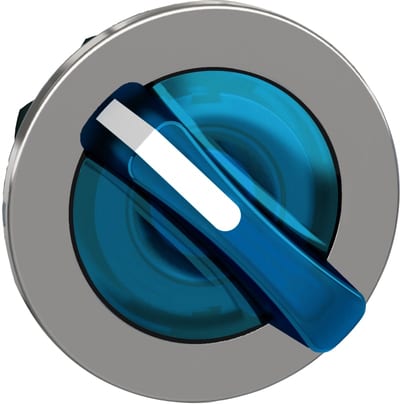

Selector switch flush for LED 2 pos blue (ZB4FK1263)
Schneider Electric

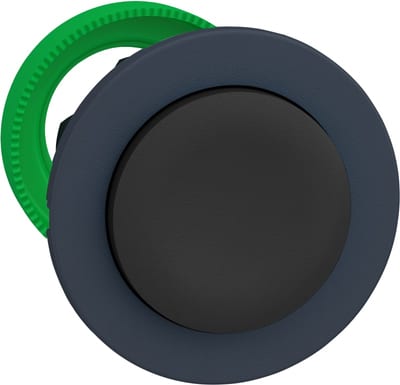

Schneider Electric flush mounted black projecting pushbutton head ZB5FL2
Schneider Electric

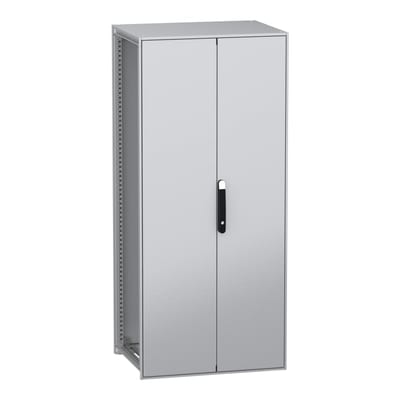

Schneider Electric Floor standing modular electrical enclosure, PanelSeT SFN, decarbonized steel, 1800X800X600MM, 2 doors, IP55 NSYSFN188602D
