End ferrule 0,25 mm² norm
Pricing
Request a quote
We reply within 24 hours
Product Description

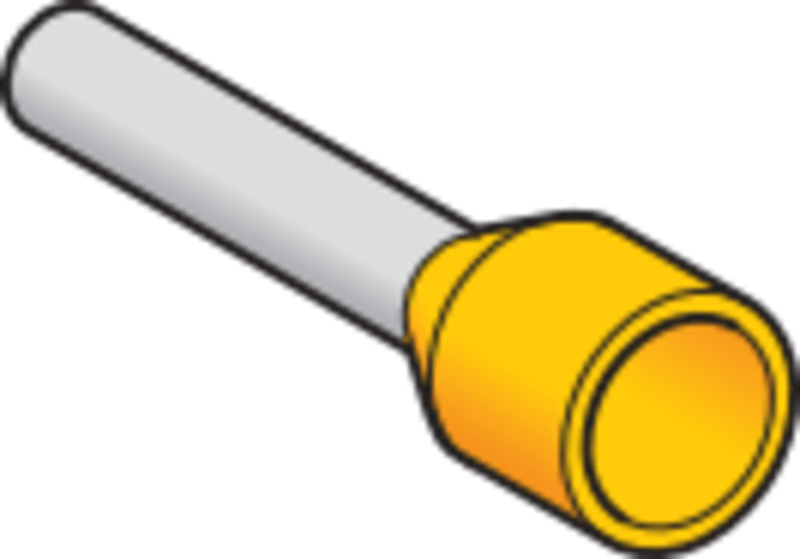

Schneider Electric DZ5CE002 End ferrule 0,25mm2 norm.
Technical Specifications
- Manufacturer part number (MPN)
- DZ5CE002
- EAN / GTIN
- 3389110535754
- Sales unit
- pcs
- Package quantity
- 80000 pcs
- Conductor cross-section
- 0.25 mm²
- Range of product
- Linergy
- Product or component type
- Cable end
- Cable end size
- Medium
- Standards
- NF C 63-023
- Type of packing
- String of bags
- Quantity per set
- 10 sets of 100
- Cable cross section
- 0.25 mm²
- Cable end type
- Single conductor
- Additional information
- Without marker tag holder
- Colour
- Yellow
- Bezel material
- Halogen-free plastic
- Tube material
- Copper conforming to ISO 1337
- Number of cables
- 1
- AWG gauge
- 26 AWG
- Bezel size
- Ø 2.3 mm
- Tube diameter
- 1.1 mm
- Length
- 12 mm
- Tube length
- 8 mm
- Product weight
- 0.05 g
- Ambient air temperature for operation
- -20…105 °C
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 1000
- Number of Units in Package 3
- 80000
- Country of origin
- DE
- Warranty (in months)
- 18
- Sleeve length
- 8 mm
- Insulated
- Yes
- Halogen free
- No
- Surface protection
- Tinned
- Total length
- 12 mm
- Construction type
- Standard
- Nominal cross section
- 0.25 mm²
- For cables resistant to short circuit
- No
- Reel/roll packaging
- No
- Material
- Copper
- With identification flag
- No
- AWG size
- 26
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3389110535754
- SAP 1000257388
- Code 81143407
Product Documentation
More from Schneider Electric
Schneider Electric
Schneider Electric Charging station, EVlink Pro AC/AC Metal, 22kW, 32A, 3P+N, T2S socket-outlet, RDC-DD 6MA EVB3S22N41
Schneider Electric

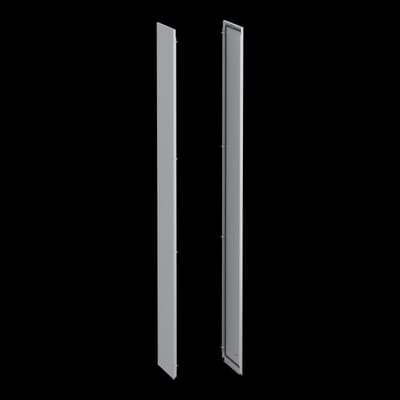

Side Plates SFN 2000X400
NSY2SPN204
Schneider Electric

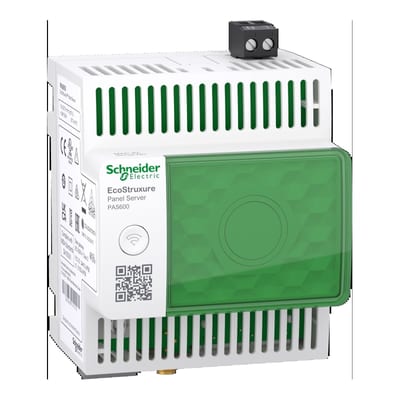

Schneider Electric EcoStruxure Panel Server - universal wireless, concentrator modbus gateway 110-277 VAC/DC PAS600
Schneider Electric

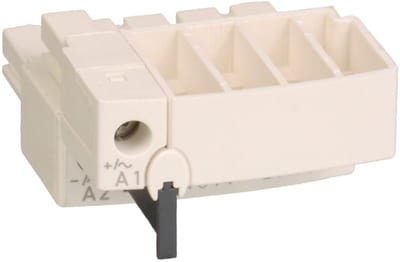

Schneider Electric LU9BN11 terminal block for power base LU9
Schneider Electric

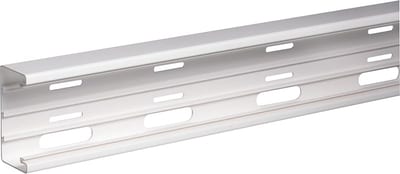

TEK Wall Trunking 100x52 mm, 2.55 m, PVC, Polar White
5522010
Schneider Electric

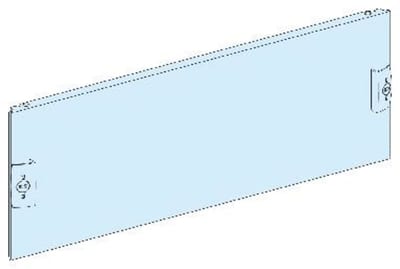

Sealed Front plate 5MODULES PrismaSeT G/P
LVS03805
Schneider Electric

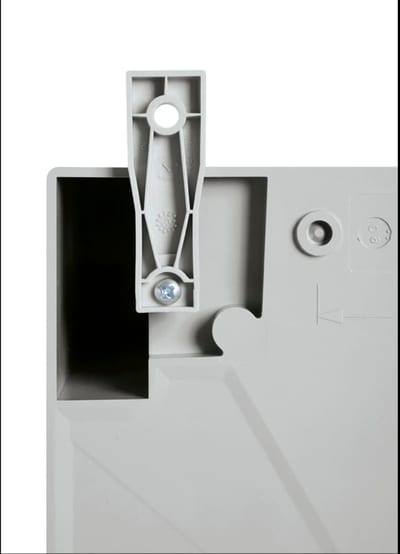

Wall Brackets ( 4 pcs.)
NSYPFPLM32G
Schneider Electric

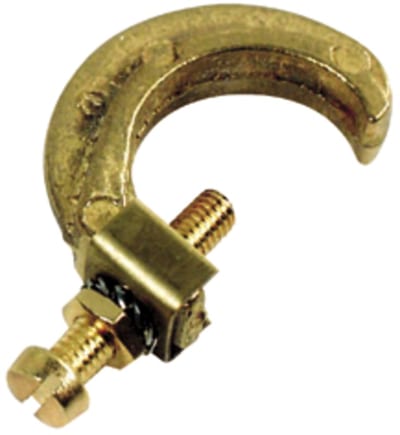

Earthing Clamp Brass 1, 25
