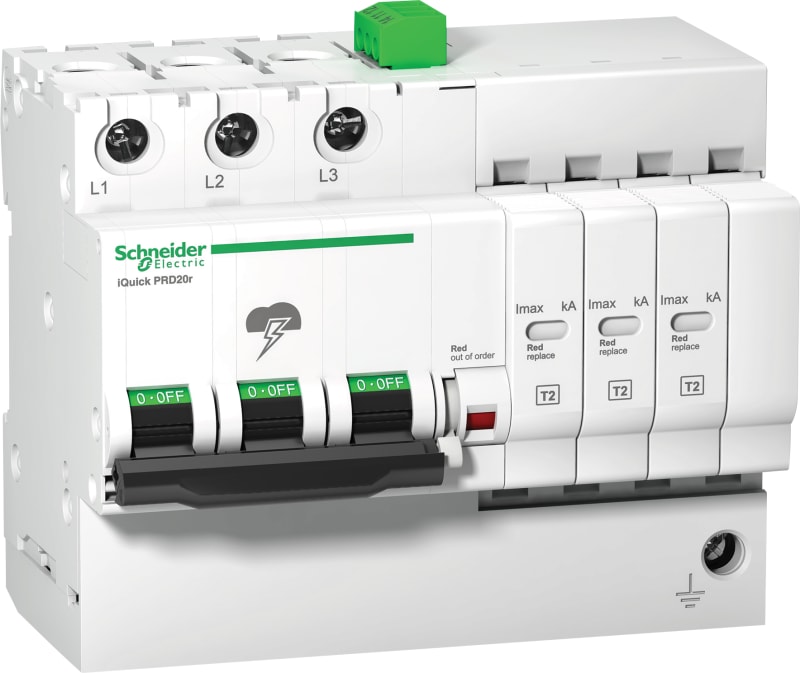

Schneider Electric iQuick PRD20R modular surge arrester - 3 poles - 350V - with remote transfer A9L16296

Schneider Electric A9L16296 Surge protection device iQuick PRD 20r 3P.

Manufacturer part number (MPN)

A9L16296

EAN / GTIN

3606480387081

Sales unit

pcs

Package quantity

12 pcs

Number of poles

3P

Range of product

IQuick PRD

Product name

Acti9 iQuick PRD

Product or component type

Surge arrester with pluggable cartridge

Device short name

iQuick PRD20r

Device application

Distribution

Standards

EN 61643-11:2012; IEC 61643-11:2011

Product certifications

CE

Quality labels

NF; KEMA-KEUR

Poles description

3P

Remote signalling

With

Signal contacts composition

1 SD (1 C/O)

Surge arrester type

Electrical distribution network

Earthing system

TN-C; IT 230

Surge arrester class type

Type 2

Surge arrester technology

MOV

[Ue] rated operational voltage

400 V AC (+/- 10 %) at 50/60 Hz

Nominal discharge current

Common mode: 5 kA (L/PE); Differential mode: 5 kA (L/N)

Maximum discharge current

Common mode: 20 kA L/PE

[Uc] maximum continuous operating voltage

Common mode: 350 V L/PE

Maximum [Up] voltage protection level

Common mode 1.5 kV type 2 L/PE

Disconnector device type

Integrated circuit breaker - Icu 25 kA

Signalling circuit voltage

2 A/250 V AC 50/60 Hz

Mounting mode

Clip-on (DIN rail)

9 mm pitches

12.7

Height

94 mm

Width

113.6 mm

Depth

75.9 mm

Product weight

0.67 kg

Colour

White (RAL 9003)

Connections - terminals

Tunnel type terminal (downside) 2.5…25 mm²; Tunnel type terminal (upside) 2.5…25 mm²

Tightening torque

2.5 N.m

Compatibility code

IQuick PRD20r

IK degree of protection

IK05 conforming to IEC 62262

Relative humidity

5…95 %

Operating altitude

2000 m

Ambient air temperature for operation

-25…60 °C

Ambient air temperature for storage

-40…70 °C

Number of Units in Package 1

1

Number of Units in Package 2

12

Warranty (in months)

18

System configuration DC

No

System configuration IT

No

System configuration TN

Yes

System configuration TN-C

Yes

System configuration TT

No

System configuration other

No

Number of conductors (without earthing)

3

Nominal discharge surge current (8/20)

5 kA

Max. discharge surge current (8/20)

20 kA

Short-circuit-proof

Yes

Nominal voltage AC

400 V

Max. continuous voltage AC

350 V

Voltage protection level

1.5 kV

Voltage protection level L-N

1.5 kV

Voltage protection level N-PE

1.5 kV

Short-circuit breaking capacity (Isccr)

25 kA

Integrated short-circuit protection

Yes

Integrated backup fuse

No

Leakage-current free

No

Mounting method

DIN rail (top hat rail) 35 mm

Max. conductor cross section solid (solid, stranded)

25 mm²

Max. conductor cross section flexible (fine-strand)

25 mm²

With remote signalling contact

Yes

Signalling at the device

Optical

Category type 2

Yes

Degree of protection (IP)

IP20

Country of origin

Hungary

HS Code

8536.30

• EAN 3606480387081
• SAP 1000343648
• Code 81006231
