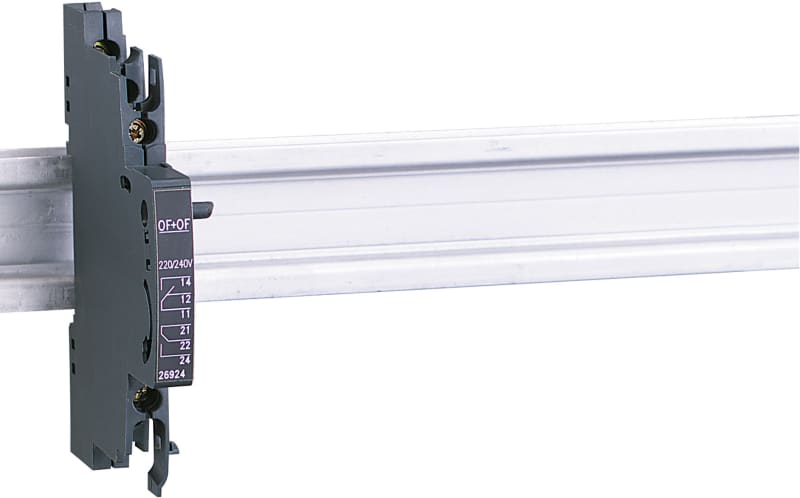

OF+OF Auxiliary contact FOR NG125

Schneider Electric 19071 — auxiliary contact - 2 OC - 6 A - 220.240 V - for NG125.

Manufacturer part number (MPN)

19071

EAN / GTIN

3303430190714

Sales unit

pcs

Package quantity

9 pcs

range of product

Acti9

Product or component type

Double OC contact

Device short name

OF and OF

Signal contacts composition

2 C/O

[In] rated current

0.1…3 A at 415 V, AC 50/60 Hz; 0.1…6 A at <= 240 V, AC 50/60 Hz; 0.1…1 A at 130 V, DC; 0.1…3 A at <= 48 V, DC

9 mm pitches

1

Standards

EN/IEC 60947-5-1

Range compatibility

Acti9 NG125NA; Acti9 NG125LMA; Acti9 NG125

[Ui] rated insulation voltage

690 V AC 50/60 Hz conforming to EN/IEC 60947-5-1

[Uimp] rated impulse withstand voltage

8 kV conforming to EN/IEC 60947-5-1

mounting mode

Fixed

Mounting support

DIN rail

Height

102.8 mm

Width

9 mm

Depth

75.5 mm

Electrical durability

10000 cycles conforming to EN/IEC 60947-5-1

Connections - terminals

Plate terminal: 1 cable(s) 0.5…2.5 mm² - rigid; Plate terminal: 1 cable(s) 0.5…1.5 mm² - flexible; Plate terminal: 1 cable(s) 0.5…1.5 mm² - flexible with ferrule; Plate terminal: 2 cable(s) 2.5 mm² - rigid; Plate terminal: 2 cable(s) 2.5 mm² - flexible; Plate terminal: 2 cable(s) 1.5 mm² - flexible with ferrule

Wire stripping length

10 mm

Tightening torque

1 N.m

Pollution degree

3 conforming to EN/IEC 60947-5-1

Tropicalisation

2 conforming to EN/IEC 60947-5-1

Ambient air temperature for operation

-25…60 °C

Ambient air temperature for storage

-40…85 °C

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

7.8 cm

Package 1 Width

2.5 cm

Package 1 Length

10.5 cm

Package 1 Weight

66 g

Unit Type of Package 2

BB1

Number of Units in Package 2

9

Package 2 Height

11.5 cm

Package 2 Width

8.5 cm

Package 2 Length

23.5 cm

Package 2 Weight

657 g

Unit Type of Package 3

S03

Number of Units in Package 3

81

Package 3 Height

30 cm

Package 3 Width

30 cm

Package 3 Length

40 cm

Package 3 Weight

6.336 kg

Country of origin

BE

Warranty (in months)

18

HS Code

8538.90
