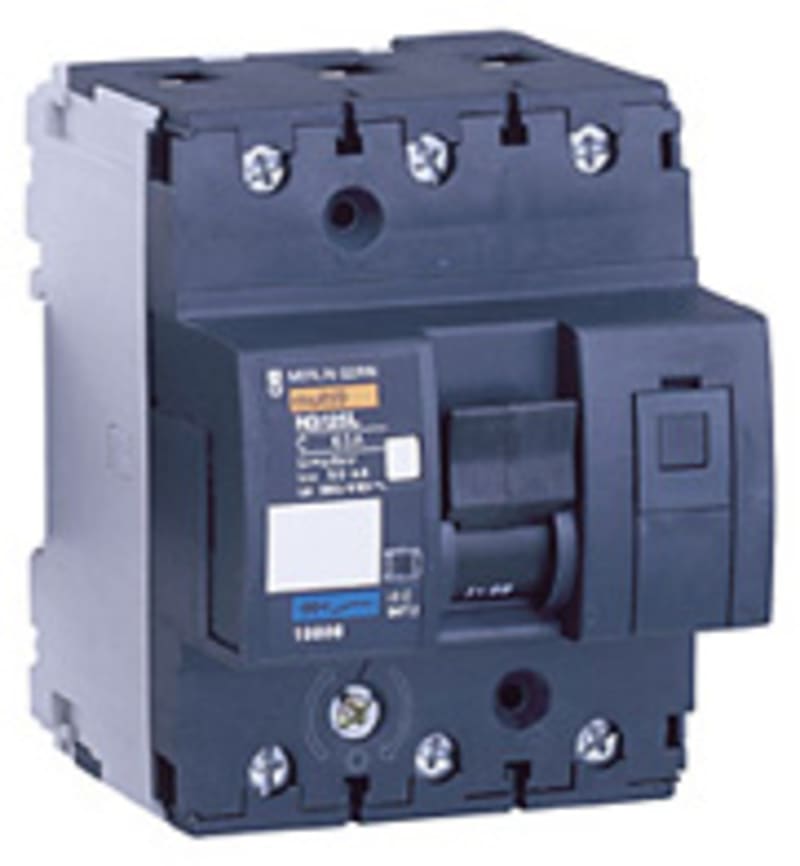

NG125L/B 25-3 Modular Power Switch
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric 18762 NG125L/B 25-3 Modular power switch
Technical Specifications
- Manufacturer part number (MPN)
- 18762
- EAN / GTIN
- 3303430187622
- Sales unit
- pcs
- Package quantity
- 18 pcs
- Power loss
- 2.7 W
- Built-in depth
- 47 mm
- Release characteristic
- B
- Number of poles (total)
- 3
- Number of protected poles
- 3
- Rated current
- 25 A
- Rated voltage
- 400 V
- Rated insulation voltage Ui
- 690 V
- Rated impulse withstand voltage Uimp
- 8 kV
- Frequency
- 50–60 Hz
- Concurrently switching neutral conductor
- No
- Overvoltage category
- 4
- Pollution degree
- 3
- Additional equipment possible
- Yes
- Width in number of modular spacings
- 4.5
- Degree of protection (IP)
- IP20
- Ambient temperature during operating
- -30–70 °C
- Connectable conductor cross section multi-wired
- 1–35 mm²
- Connectable conductor cross section solid-core
- 1.5–50 mm²
- Explosion-proof
- No
- Flush-mounted installation
- No
- Country of origin
- France
Standards & Compliance
- HS Code
- 8536.20
Cross References
- EAN 3303430187622
- SAP 1000005636
- Code 829518
Product Documentation
More from Schneider Electric
Schneider Electric
Ceiling IP41 B600+600 Prisma G m/GreenTopp
LVS08844
Schneider Electric
Schneider Electric variable speed drive ATV212 - 18.5kW - 25hp - 480V - 3PH - EMC - IP21 ATV212HD18N4
Schneider Electric
Fixing Kit Falskt Floor PrismaSeT P-U/In
LVS08703
Schneider Electric
ANTI-Rotasjonsplate (ZB5AZ902)
Schneider Electric
Schneider Electric Circuit breaker, ComPacT NSX250B, 25KA/415VAC, 4 poles 4D (neutral fully protected), TMD trip unit 200A C25B4TM200
Schneider Electric

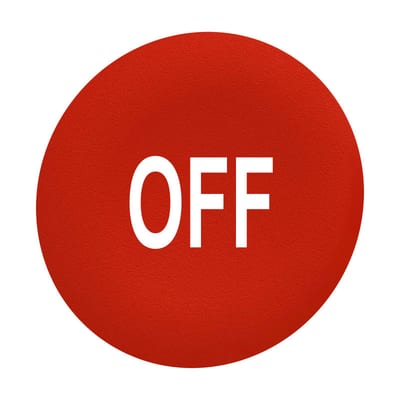

Push Button Cap flush red (ZBAF435)
Schneider Electric

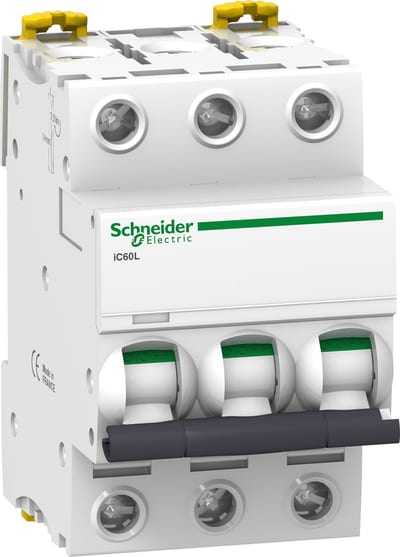

Schneider Electric A9F95325 ACTI9 IC60L Miniature Circuit Breaker 3P 25 A, Curve K
Schneider Electric

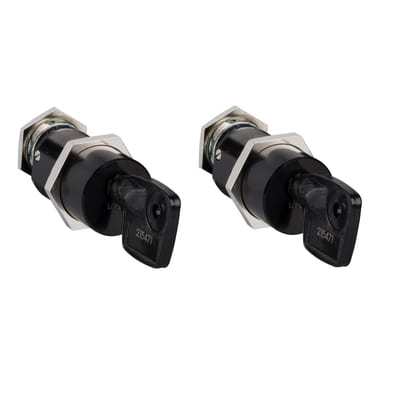

Schneider Electric Chassis locking - 2 Profalux locks 2 diff keys+adapt kit - FORMTZ2/MTZ3/NW - sp LV864936SP
