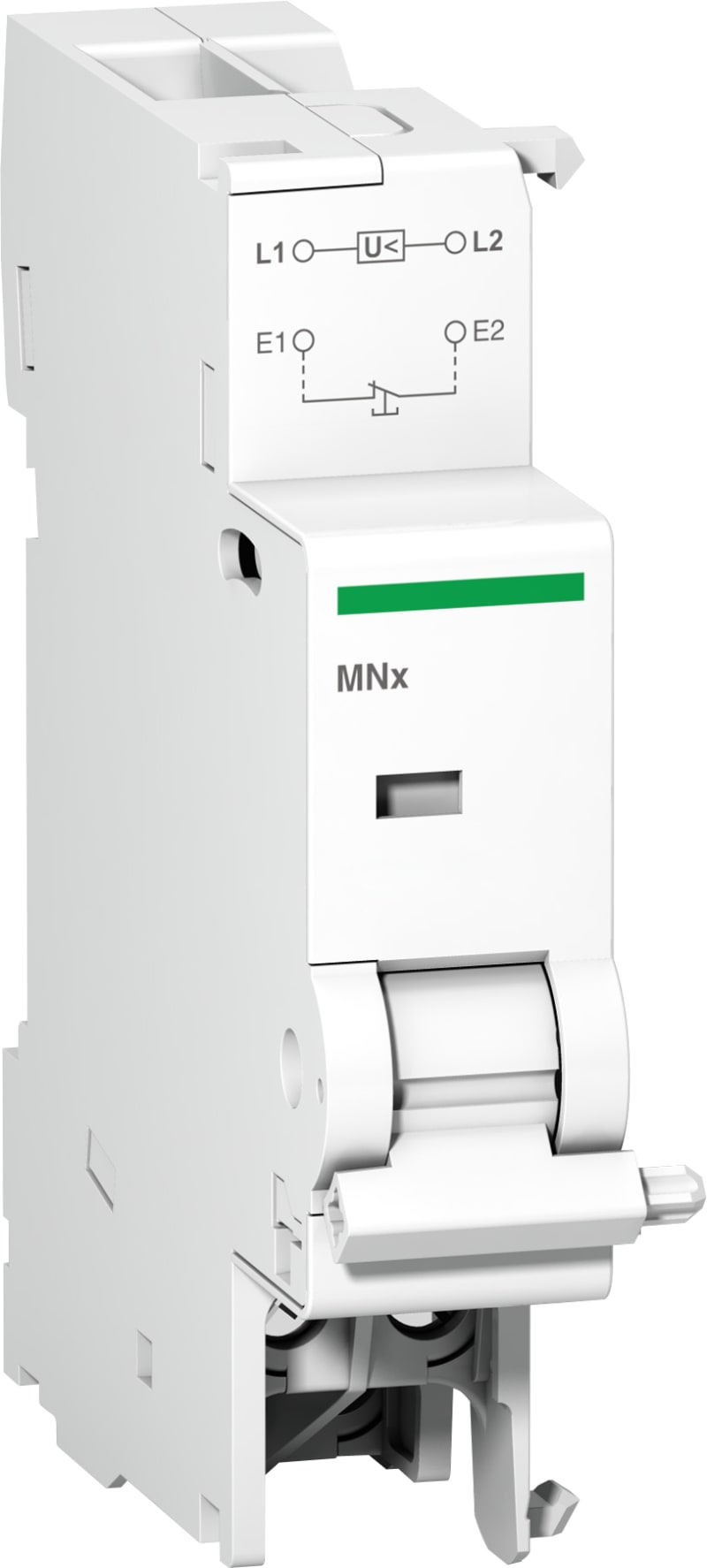

Schneider Electric Voltage release MNx 380-415VAC dc A9N26971
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric A9N26971 Undervoltage release MNx 380/415VAC/DC.
Technical Specifications
- Manufacturer part number (MPN)
- A9N26971
- EAN / GTIN
- 3606480383038
- Sales unit
- pcs
- Package quantity
- 8 pcs
- Voltage
- 380/415 V AC
- range of product
- Acti9
- Product or component type
- Undervoltage release
- Device short name
- MNx
- [Uc] control circuit voltage
- 400 V AC 50/60 Hz
- Control type
- With external feeding
- 9 mm pitches
- 2
- Range compatibility
- Acti9 iDPN; Acti9 C120; Acti9 C40; Acti9 C60H-DC; Acti9 C60NA-DC; Acti9 C60PV-DC; Acti9 DPN Vigi; Acti9 DT40; Acti9 DT60; Acti9 ID C40; Acti9 IDc; Acti9 ITG40; Acti9 ID; Acti9 DPN
- Local signalling
- Action indicator
- mounting mode
- Fixed
- Mounting support
- 35 mm symmetrical DIN rail
- Comb busbar and distribution block compatibility
- Top: YES
- Height
- 82.5 mm
- Width
- 18 mm
- Depth
- 73.5 mm
- Product weight
- 73 g
- Colour
- White
- Connections - terminals
- Screw clamp terminal (bottom) - 2 cable(s) 1.5 mm² - flexible; Screw clamp terminal (bottom) - 2 cable(s) 1.5 mm² - flexible with ferrule; Screw clamp terminal (bottom) - 1 cable(s) 0.5…2.5 mm² - rigid
- Wire stripping length
- 9 mm for bottom connection
- Tightening torque
- 1 N.m bottom
- Standards
- EN/IEC 60947-2
- Product certifications
- ASTA; LCIE; KEMA; ASEFA
- Tropicalisation
- 2 conforming to EN/IEC 60947-2
- Relative humidity
- 95 % at 55 °C
- Ambient air temperature for operation
- -25…50 °C
- Ambient air temperature for storage
- -40…85 °C
- Warranty (in months)
- 18
- Function
- Under voltage coil
- Voltage type
- AC
- Rated voltage
- 400 V
- Installed at the factory
- No
- Width in number of modular spacings
- 1
- Device fitting
- Miniature circuit breaker (MCB)
- Additional equipment
- Under voltage coil
- Voltage type for actuating
- AC
- With auto test for earth leakage function
- No
- Suitable for max. number of poles main contact unit (total)
- 4
- Suitable for max. current main contact unit
- 125 A
- Country of origin
- Belgium
Standards & Compliance
- HS Code
- 8536.30
Cross References
- EAN 3606480383038
- SAP 1000343834
- Code 81110977
Product Documentation
More from Schneider Electric
Schneider Electric
Push-button, flush, blue, raised (ZB5FH6)
Schneider Electric
Horizontal coupling 7035 PLA15X4
NSYMUPLA154G
Schneider Electric
Schneider Electric Universal cross rails, PanelSeT SFN, PanelSeT SF, PanelSeT SM, H65 W1800MM, 2 rows, set of 2 NSYSUCR65180
Schneider Electric
Schneider Electric Trip unit TM80DC, ComPacT NSX100 DC, 4 poles, thermal magnetic protections, 80A rating C104TM080D
Schneider Electric
Schneider Electric Circuit breaker, ComPacT NSXm 160H, 70KA/415VAC, 4 poles 4D (neutral fully protected), TMD trip unit 80A, EverLink lugs C11H4TM080L
Schneider Electric
Illuminated Push Button flush white ring (ZB5FW913)
Schneider Electric
Gnistkammer MTZ3 H1/H2/HA res.
LV847936SP
Schneider Electric

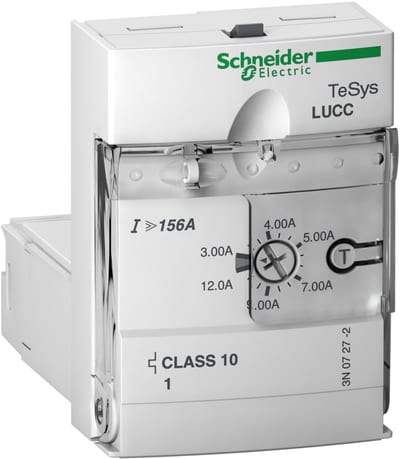

Schneider Electric Advanced control unit, TeSys U, 4.5-18A, 1P motors, protection & diagnostic, class 10, coil 24V DC LUCC18BL
