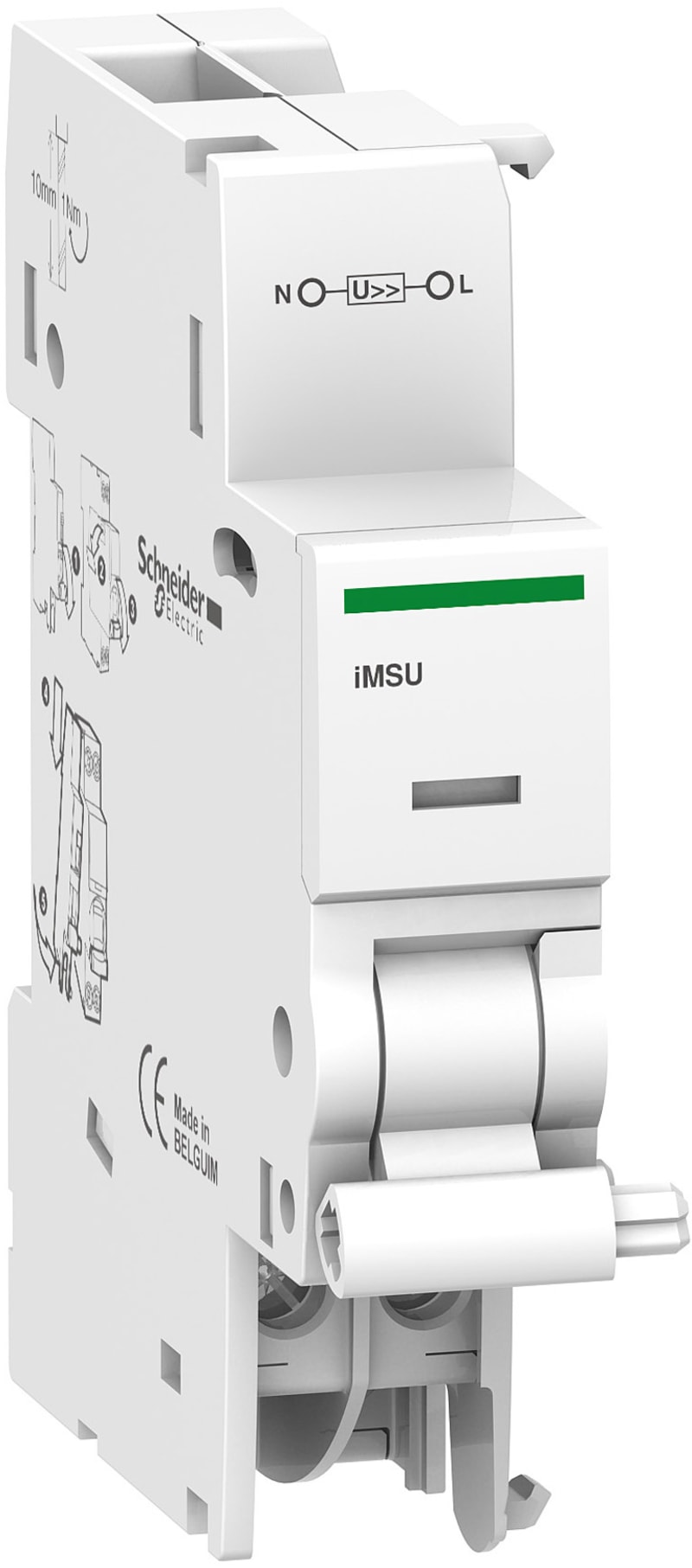

Schneider Electric Overvoltage release, ACTI9 iMSU, 230VAC A9A26500

Schneider Electric A9A26500 Undervoltage release iMSU - with tidsintervall.

Manufacturer part number (MPN)

A9A26500

EAN / GTIN

3606480512490

Sales unit

pcs

Package quantity

8 pcs

Voltage

230 V

Frequency

50/60 Hz

range of product

Acti9

Product or component type

Overvoltage release

Device short name

iMSU

[Uc] control circuit voltage

230 V AC 50/60 Hz

Threshold tripping voltage

255 V; 275 V 3...15 s; 300 V 1...5 s; 350 V 0.25...0.75 s; 400 V 0.07...0.2 s

9 mm pitches

2

Range compatibility

Acti9 iC60H RCBO; Acti9 iC60H RCBO PoN; Acti9 iC60H2 RCBO; Acti9 iC60N RCBO; Acti9 iKQE RCBO; Acti9 iCVm40; Acti9 iCVr40; Acti9 iDDm40

Local signalling

Action indicator

mounting mode

Clip-on

Mounting support

DIN rail

Comb busbar and distribution block compatibility

Top and bottom: YES

Height

82.5 mm

Width

18 mm

Depth

68 mm

Colour

White

Connections - terminals

Clamp terminal - 1 cable(s) 0.5…4 mm² - flexible; Clamp terminal1…6 mm² - rigid

Wire stripping length

10 mm

Tightening torque

1 N.m

Standards

EN 50550

Quality labels

CE

Tropicalisation

2 conforming to EN/IEC 60947-5-1

Relative humidity

95 % at 55 °C

Ambient air temperature for operation

-35…70 °C

Ambient air temperature for storage

-40…85 °C

Warranty (in months)

18

Function

Monitoring unit

Voltage type

AC

Rated voltage

230 V

Installed at the factory

No

Width in number of modular spacings

1

Device fitting

Miniature circuit breaker (MCB)

Additional equipment

Monitoring unit

Voltage type for actuating

AC

With auto test for earth leakage function

No

Suitable for max. number of poles main contact unit (total)

4

Suitable for max. current main contact unit

63 A

Country of origin

Belgium

HS Code

8536.30
