Product Description

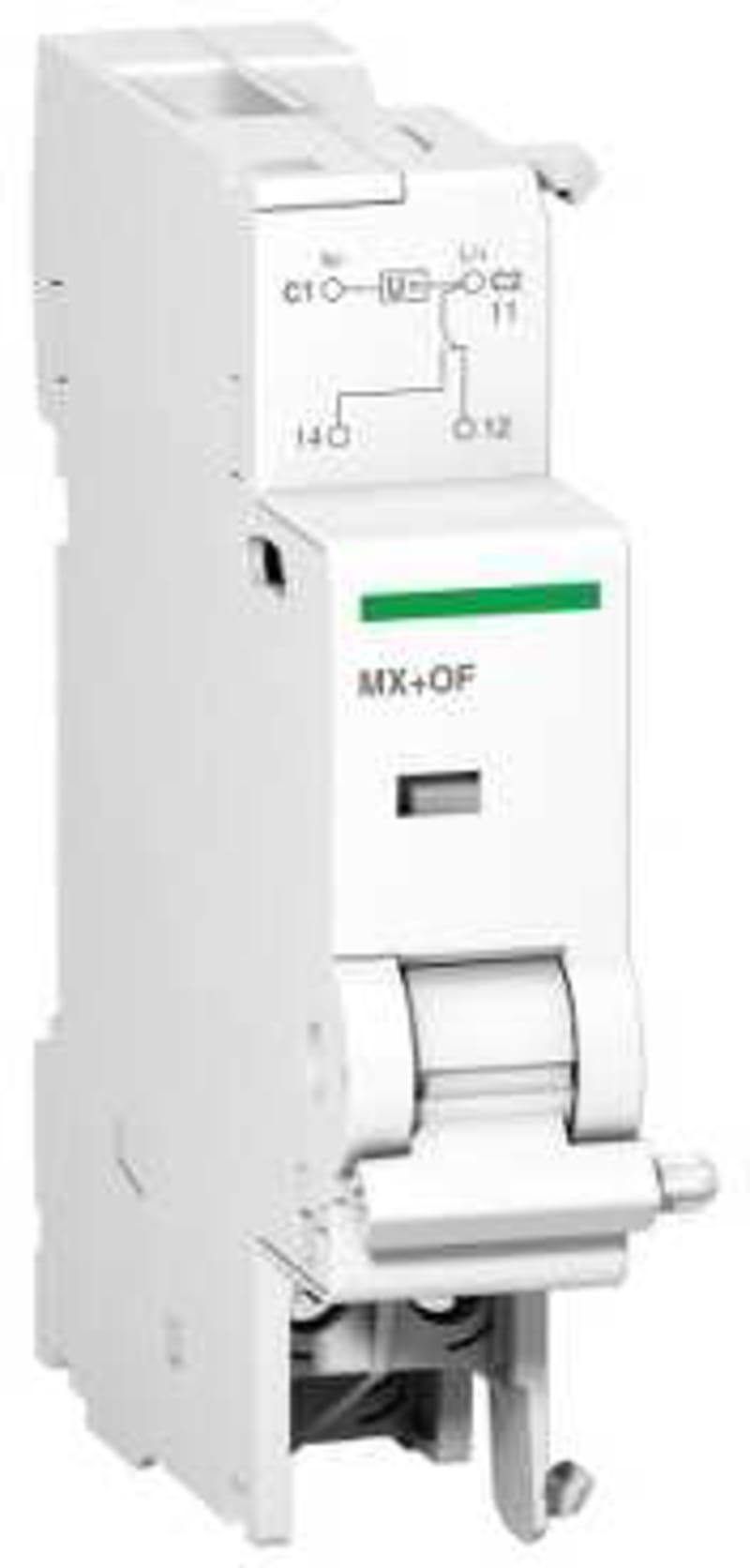

Schneider Electric A9N26948 Shunt-trip release MX+OF 24V AC/DC.
Technical Specifications
- Manufacturer part number (MPN)
- A9N26948
- EAN / GTIN
- 3606480382970
- Sales unit
- pcs
- Package quantity
- 8 pcs
- Voltage
- 24 V
- range of product
- Acti9
- Product or component type
- Shunt trip release with OC contact
- Device short name
- MX + OF
- Signal contacts composition
- 1 C/O
- [Uc] control circuit voltage
- 12...24 V AC 50/60 Hz; 12...24 V DC
- 9 mm pitches
- 2
- Range compatibility
- Acti9 iDPN; Acti9 C120; Acti9 C40; Acti9 C60H-DC; Acti9 C60NA-DC; Acti9 C60PV-DC; Acti9 DPN Vigi; Acti9 DT40; Acti9 DT60; Acti9 ID C40; Acti9 IDc; Acti9 ITG40; Acti9 ID; Acti9 DPN
- Local signalling
- Action indicator
- mounting mode
- Fixed
- Mounting support
- 35 mm symmetrical DIN rail
- Comb busbar and distribution block compatibility
- Top: YES
- Height
- 82.5 mm
- Width
- 18 mm
- Depth
- 73.5 mm
- Product weight
- 65 g
- Colour
- White
- Connections - terminals
- Clamp terminal - 1 cable(s) 2.5 mm² - flexible
- Wire stripping length
- 9 mm
- Tightening torque
- 1 N.m
- Standards
- EN/IEC 60947-2
- Product certifications
- ASTA; LCIE; KEMA; ASEFA
- Tropicalisation
- 2 conforming to EN/IEC 60947-2
- Relative humidity
- 95 % at 55 °C
- Ambient air temperature for operation
- -25…50 °C
- Ambient air temperature for storage
- -40…85 °C
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 8
- Number of Units in Package 3
- 72
- Warranty (in months)
- 18
- Function
- Shunt release (for power circuit breaker)
- Voltage type
- AC/DC
- Rated voltage
- 24 V
- Installed at the factory
- No
- Width in number of modular spacings
- 1
- Device fitting
- Miniature circuit breaker (MCB)
- Additional equipment
- Shunt release (for power circuit breaker)
- Voltage type for actuating
- AC/DC
- Number of contacts as change-over contact
- 1
- With auto test for earth leakage function
- No
- Suitable for max. number of poles main contact unit (total)
- 4
- Suitable for max. current main contact unit
- 125 A
- Country of origin
- Belgium
