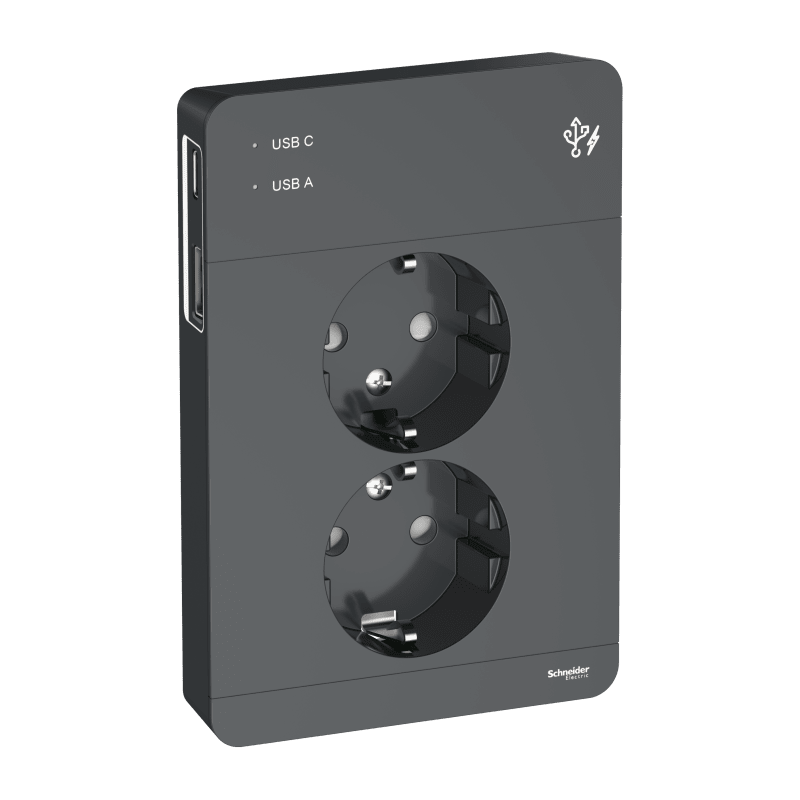

Schneider Electric WDE003395 Exxact Double Socket with Earth USB A+C Anthracite
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric WDE003395 Exxact double socket outlet with earth, child protection (shuttered), USB A+C, push-in clamp terminals, flush-mounted, 16 A, IP20, anthracite. Protective contact CEE 7/3 (type F), 250 V, halogen-free thermoplastic housing with matt lacquered anthracite finish and IK04 impact rating. Built-in USB power supply with one USB-A port, function lighting, loop-through function.
Technical Specifications
- Manufacturer part number (MPN)
- WDE003395
- EAN / GTIN
- 3606489860028
- HS code
- 8536.90
- Sales unit
- pcs
- Package quantity
- 36 pcs
- Nominal current
- 16 A
- Nominal voltage
- 250 V
- Mounting method
- Flush-mounted
- Assembly arrangement
- Basic element with complete housing
- Colour
- Anthracite
- Model
- Socket outlet with protective contact CEE 7/3 (type F)
- Halogen free
- Yes
- Number of units
- 2
- Lockable
- No
- With hinged lid
- No
- Connection type
- Push-in clamp
- Surface protection
- Lacquered
- With signal lamp
- Yes
- Number of socket outlets
- 2
- Number of phases
- 1
- With enhanced contact protection
- Yes
- Frequency
- 50–60 Hz
- With on/off switch
- No
- Number of ports USB-A
- 1
- Protective contact
- Yes
- Label space/information surface
- No
- Eject-mechanism
- No
- Material quality
- Thermoplastic
- Rotated central insert
- No
- Overvoltage protection
- No
- Fault current protection
- No
- Special power supply
- None
- Insulated mounting
- Yes
- Material
- Plastic
- Type of fastening
- Mounting with screw
- Impact strength
- IK04
- Concurrently switching neutral conductor
- No
- Transparent
- No
- Surface finishing
- Matt
- With miniature fuse
- No
- With loop through function
- Yes
- Suitable for degree of protection (IP)
- IP20
- Device width
- 85 mm
- Device height
- 134 mm
- Device depth
- 49.7 mm
- With function lighting
- Yes
- With orientation lighting
- No
- With built-in USB power supply
- Yes
- Number of active contacts (round)
- 4
- Protective earth pin round
- No
- Min. depth of built-in installation box
- 25 mm
- Metallic colour
- No
- Type of USB power supply
- AC
- Max. current rating of USB power supply
- 3 A
- Number of ports USB-C
- 1
- Number of loop throughs
- 2
- Socket outlets phase-separated
- No
- Anti-bacterial treatment
- No
- Country of origin
- China
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3606489860028
- SAP 1200467758
- Code 82531755
Product Documentation
More from Schneider Electric
Schneider Electric

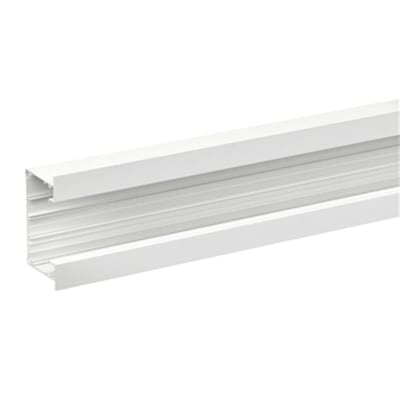

INKA Wall Trunking 123x72 mm, 2.5 m, Lacquered Aluminium, White, Halogen-Free
5506318
Schneider Electric

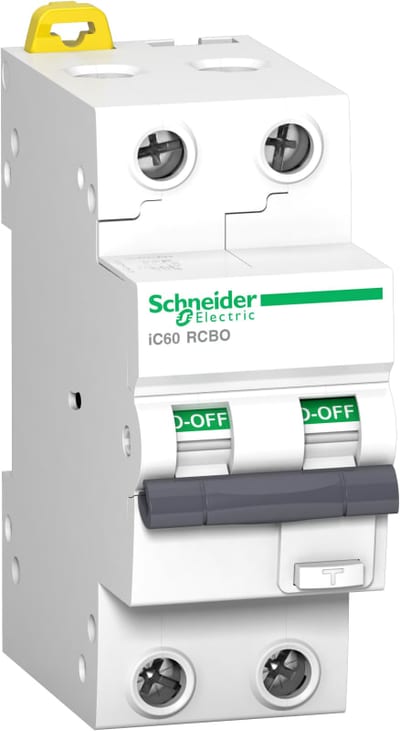

Schneider Electric Residual current breaker with overcurrent protection (RCBO), ACTI9 IC60, 2P, 25A, B curve, 10000A/15KA, A type, 30MA A9D37225
Schneider Electric

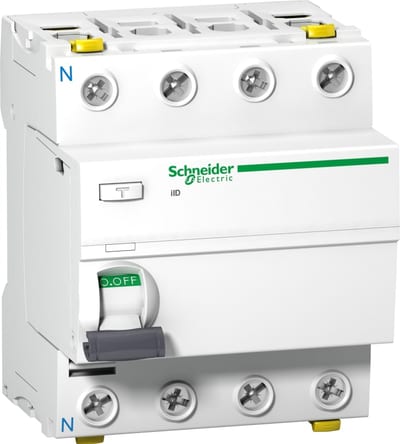

Schneider Electric Residual current circuit breaker (RCCB), ACTI9 iID, 4P, 63A, A-SI type, 100MA, double terminal A9Z32463
Schneider Electric

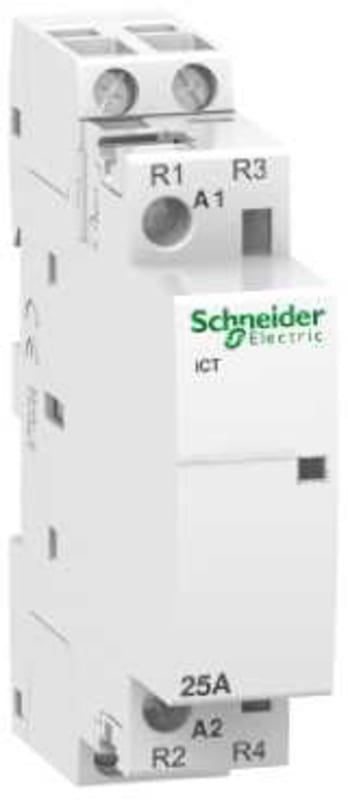

Schneider Electric iCT 25A 2NC 230...240V 50Hz contactor A9C20736
Schneider Electric

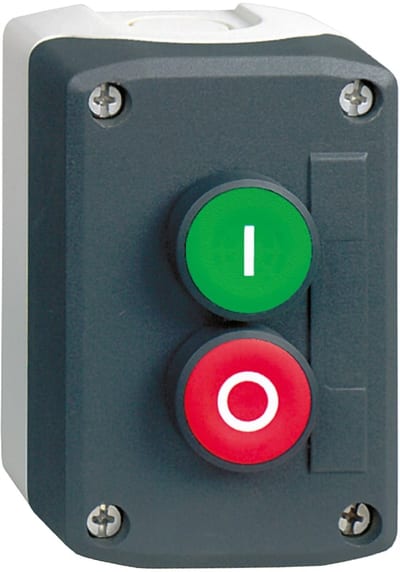

Schneider Electric XALD213 Control station, plastic, dark grey lid, 2 flush push buttons Ø22, marked I O, 1 NO + 1 NC
Schneider Electric

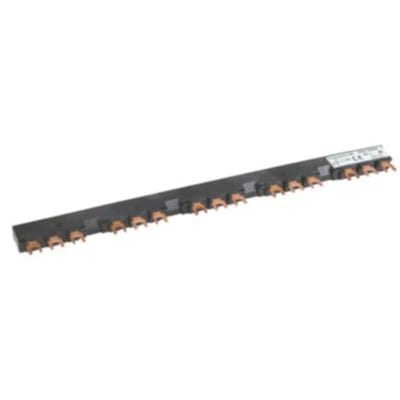

Schneider Electric Linergy FT - Comb busbar - 63 A - 5 tap-offs - 54 mm pitch GV2G554
Schneider Electric

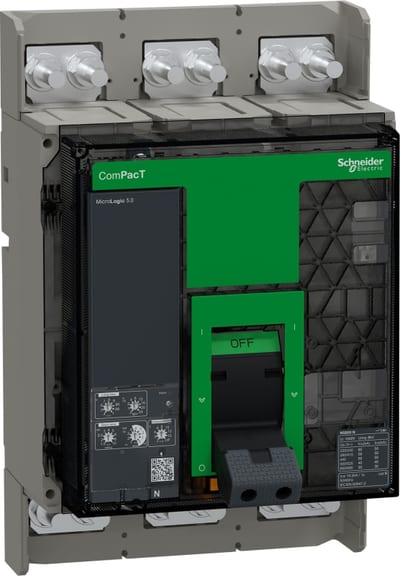

Schneider Electric Circuit breaker, ComPacT NS800N, 50KA at 415VAC, 3P, fixed, manually operated, MicroLogic 2.0 control unit, 800A C080N320FM
Schneider Electric

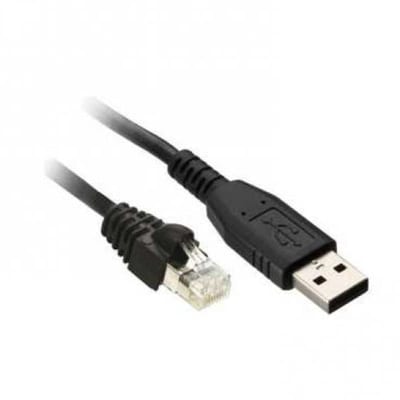

Schneider Electric TCSMCNAM3M002P connection cable USB/RJ45 - for connection between PC and drive
