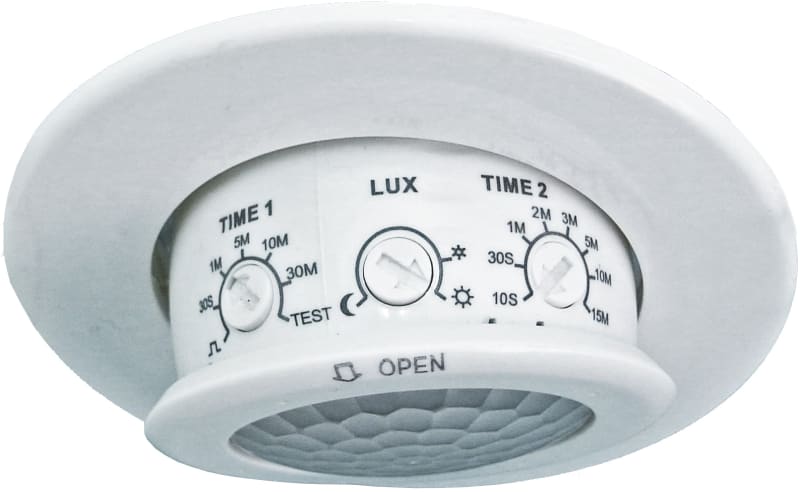

Schneider Electric ARGUS Standard 360° False ceiling indoor movement detector - 2CH CCT570003

Schneider Electric CCT570003 ARGUS Standard PIR 2 channel.

Manufacturer part number (MPN)

CCT570003

EAN / GTIN

3606480995446

Sales unit

pcs

Package quantity

48 pcs

Range of product

ARGUS standard movement detector

Range

ARGUS

Product or component type

Movement detector

Load type

LED lighting: : 100 W; Compact fluorescent lamp: : 100 W; Motor: : 100 W; Relay: : 5 A - 250 V; Incandescent lamps: : 1000 W - 230 V; Halogen lamp: : 900 W - 230 V; Halogen lamp with standard electronic transformer: 250 VA; Halogen lamp with standard ferromagnetic transformer: 500 VA; Fluorescent tube: 200 VA; Capacitive: , 21 µF; Capacitive: , 14 µF

Colour tint

White

Output voltage

220...250 V

Control type

Movement sensor

Function available

Switching, toggling, dimming

Light intensity adjustment

5…1000 lux

detection range

Radius: 3500 mm

Device mounting

Ceiling; Flush

Mounting height

2.5 m

IP degree of protection

IP20

Number of Units in Package 1

1

Number of Units in Package 2

48

Number of Units in Package 3

576

Warranty (in months)

18

Nominal voltage

230 V

Mounting method

Flush-mounted

Colour

White

Width

100 mm

Model

Movement sensor

Halogen free

Yes

Height

81 mm

Depth

45 mm

Connection type

Screwed terminal

Surface protection

Untreated

Creep-under protection

Yes

Voltage type

AC

Switch-off delay

1800 s

Frequency

50–60 Hz

With remote control

No

Staircase light controller

Yes

Bridging switch

No

Suitable for wireless transmission

No

Max. reach frontally

3.5 m

Max. reach sideways

3.5 m

Max. switching power

1000 W

Max. starting current

10 A

Material

Plastic

Response value sensitivity adjustable

No

Dim function with dimmer basic element

No

Response value luminosity

5–1000 lx

Suitable for C-load

No

Diameter reach on floor

7 m

Remote operation

No

HVAC-control

Yes

Constant light control

No

Substation input

No

With signal unit

No

Teach-function for response value luminosity

No

Networkable

No

Forced switch off

No

Scan angle

360 °

With connection cable

No

Degree of protection (IP)

IP20

With alarm function

No

Transparent

No

Animal zone

No

Surface finishing

Glossy

Detection angle horizontal

0–360 °

Min. switch-on time

30 s

Max. duty cycle

30 min

Suitable for wall mounting

No

Response value luminosity adjustable

Yes

Optimum mounting height

2.5 m

Constant light output (CLO)

No

With DALI interface

No

IFTTT support available

No

Forced switch on

No

Compatible with Apple HomeKit

No

Compatible with Google Assistant

No

Compatible with Amazon Alexa

No

Compatible with Casambi

No

Background monitoring

No

With acoustic sensor

No

Movement sensor/presence detector technology

Passive infrared

Sensor type

Passive infrared

Suitable for ceiling mounting

Yes

Anti-bacterial treatment

No

Country of origin

China

HS Code

8536.50

• EAN 3606480995446
• SAP 1200503573
• Code 82636050
