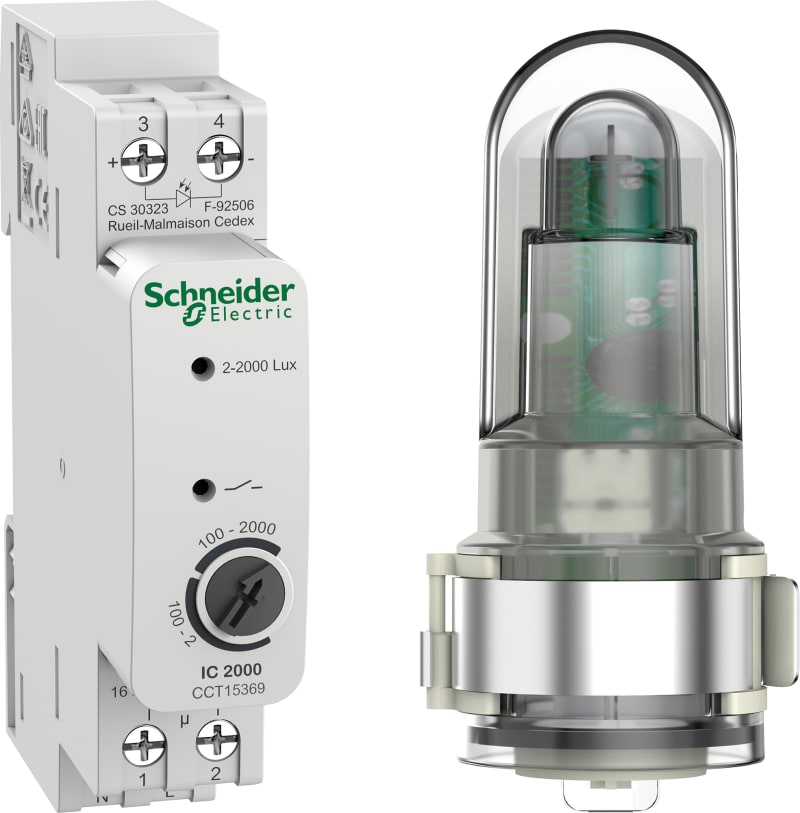

Schneider Electric ACTI9 IC2000 outdoor (2 - 2000 lux) twilight switch CCT15369

Schneider Electric CCT15369 Acti 9 twilight relay - 1NO - 2.2000 lux with outdoor light sensor.

Manufacturer part number (MPN)

CCT15369 EAN / GTIN: 3606489524616 HS code: 8536.90 Sales unit: pcs Package quantity: 40 pcs range of product: Acti9 Product name: Acti9 IC Product or component type: Twilight switch Device short name: IC2000 Provided equipment: twilight sensor outdoor Load type: incandescent lamp: 2600 W; halogen lamp: 2600 W; non-corrected fluorescent tube: 2300 VA; serial-compensated fluorescent tube: 2300 VA; parallel compensated fluorescent lamp: 730 VA (80 µF); compact fluorescent lamp: 170 W; = 2 W LED lamp: 200 W Device application: Building Number of channels: 1 Maximum power consumption in W: 0.5 W stand by [Ue] rated operational voltage: 230 V AC +10 % -15 % at 50/60 Hz Maximum switching current: 10 A - 250 V AC pf = 0.6; 16 A - 250 V AC pf = 1 minimum switching current: 10 mA 230 V AC; 100 mA 24 V AC/DC Electrical insulation class: Class II Output type: Dry contact Accuracy: +/- 0.25 s/day 25 °C Contacts type and composition: 1 NO Time delay: 20 s on; 80 s off Light intensity adjustment: 2…2000 lux Connections - terminals: 1 x 2.5 mm² screw terminals solid or flexible with sleeve; 2 x 0.5…2.5 mm² screw terminals solid or flexible Mounting support: TH35 DIN rail conforming to EN 60715 Height: 85.5 mm Width: 18 mm Depth: 67 mm Product weight: 111 g Overvoltage category: Class 3 Marking: CE Control type: By brightness detection Ambient air temperature for operation: -30…55 °C ambient air temp for storage/transportation: -30…70 °C Relative humidity: 90 %, non-condensing IP degree of protection: IP20; IP55 (sensor) Standards: EN 60669-2-1 Number of Units in Package 1: 1 Number of Units in Package 2: 40 Number of Units in Package 3: 320 Warranty (in months): 18

HS Code

8536.90

• EAN 3606489524616
• SAP 1200314483
• Code 82302432
