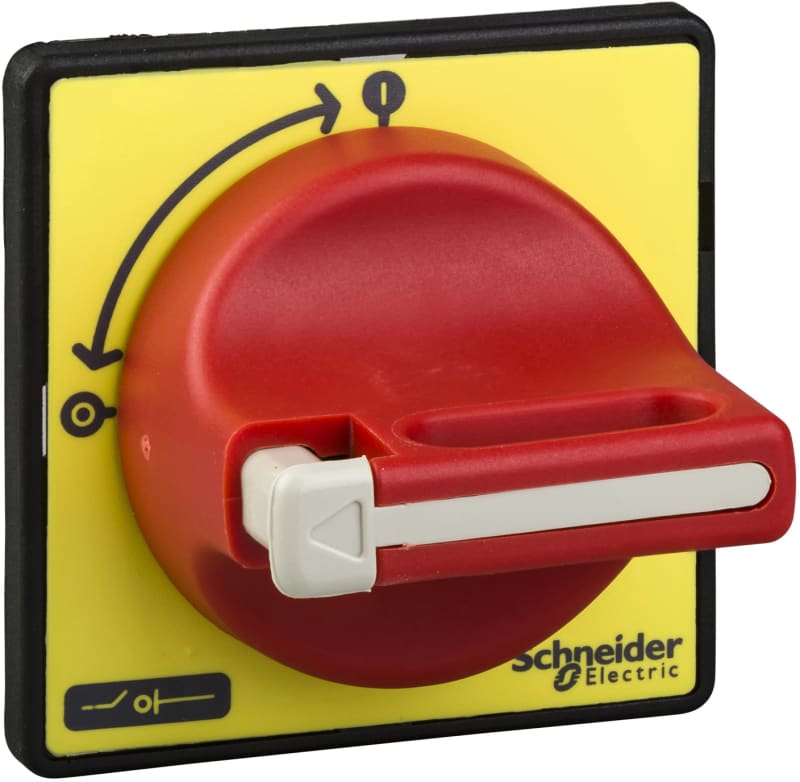

Schneider Electric KCD1PZ TeSys VARIO / Mini VARIO - front and red rotary handle - 1 to 3 padlocking
Pricing
Request a quote
We reply within 24 hours
Overview
Schneider Electric KCD1PZ TeSys VARIO / Mini VARIO - front and red rotary handle - 1 to 3 padlocking is listed under Electrical Components / Circuit Breaker Accessories. Sales unit: pcs; Package quantity: 45 pcs; Range: TeSys; Device short name: KCD1; Product or component type: Rotary handle; Product compatibility: VN20; VN12; V02...V2.
Technical Specifications
- Manufacturer part number (MPN)
- KCD1PZ
- EAN / GTIN
- 3389110725087
- Sales unit
- pcs
- Package quantity
- 45 pcs
- Range
- TeSys
- Device short name
- KCD1
- Product or component type
- Rotary handle
- Product compatibility
- VN20; VN12; V02...V2
- Handle colour
- Red
- Handle front plate colour
- Yellow
- Rotary handle padlocking
- 1 to 3 padlocks 4…8 mm
- Marking
- 0 - 1
- Fixing mode
- Hole, with diameter 22.5 mm
- handle front plate dimension
- 60 x 60 mm
- Height
- 60 mm
- Width
- 60 mm
- Product weight
- 0.082 kg
- IP degree of protection
- IP65
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 7.000 cm
- Package 1 Width
- 7.000 cm
- Package 1 Length
- 8.200 cm
- Package 1 Weight
- 78.000 g
- Unit Type of Package 2
- S03
- Number of Units in Package 2
- 45
- Package 2 Height
- 30.000 cm
- Package 2 Width
- 30.000 cm
- Package 2 Length
- 40.000 cm
- Package 2 Weight
- 3.928 kg
- Unit Type of Package 3
- P06
- Number of Units in Package 3
- 360
- Package 3 Height
- 75.000 cm
- Package 3 Width
- 60.000 cm
- Package 3 Length
- 80.000 cm
- Package 3 Weight
- 42.284 kg
- Country of origin
- CZ
- Warranty (in months)
- 18
- Colour
- Red
- Lockable
- Yes
- Padlock locking
- Yes
- Suitable for emergency stop
- Yes
- With extension shaft
- No
- With restart blockage
- No
- Suitable for power circuit breaker
- No
- Suitable for switch disconnector
- Yes
- With key lock
- No
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 3389110725087
- SAP 1000031950
- Code 8234680
Product Documentation
More from Schneider Electric
Schneider Electric
Interpact INS250 200A 3P
31102
Schneider Electric
Top plate IP55 PrismaSeT P B650 D600
LVS08656
Schneider Electric
Doorframe for Electrical Operated
33718
Schneider Electric

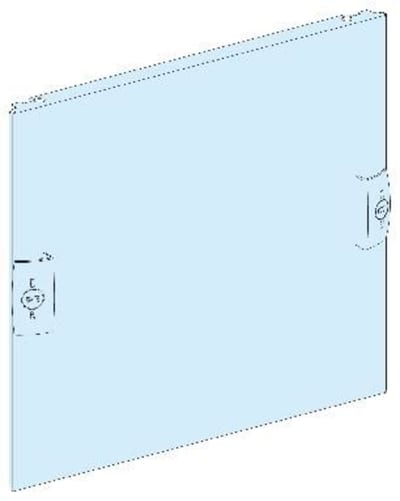

Sealed Front plate 2MOD B300MM-PRISMASET G/P
LVS03812
Schneider Electric
Interpact INS500 3P (31112)
Schneider Electric

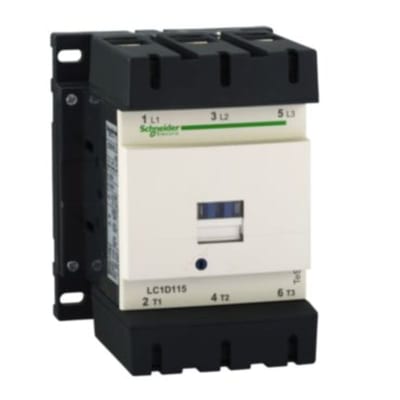

Schneider Electric Contactor, TeSys Deca, 3P(3NO), AC-3/AC-3E, <=440V, 115A, 24V DC standard coil, screw clamp terminals LC1D115BD
Schneider Electric

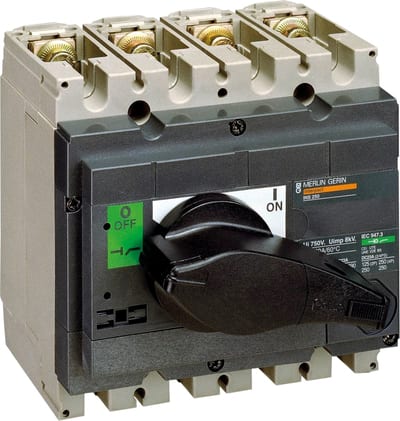

Interpact INS250 200A 4P
31103
Schneider Electric

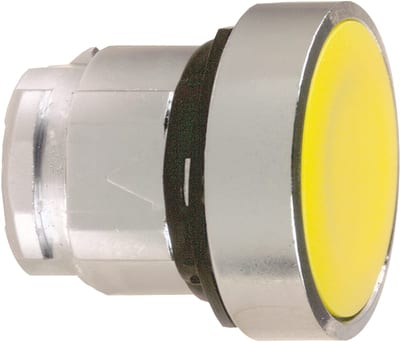

Schneider Electric ZB4BA5 Harmony XB4 Push-Button Head — Ø22 mm, Yellow, flush, spring return, non-illuminated, metal bezel
