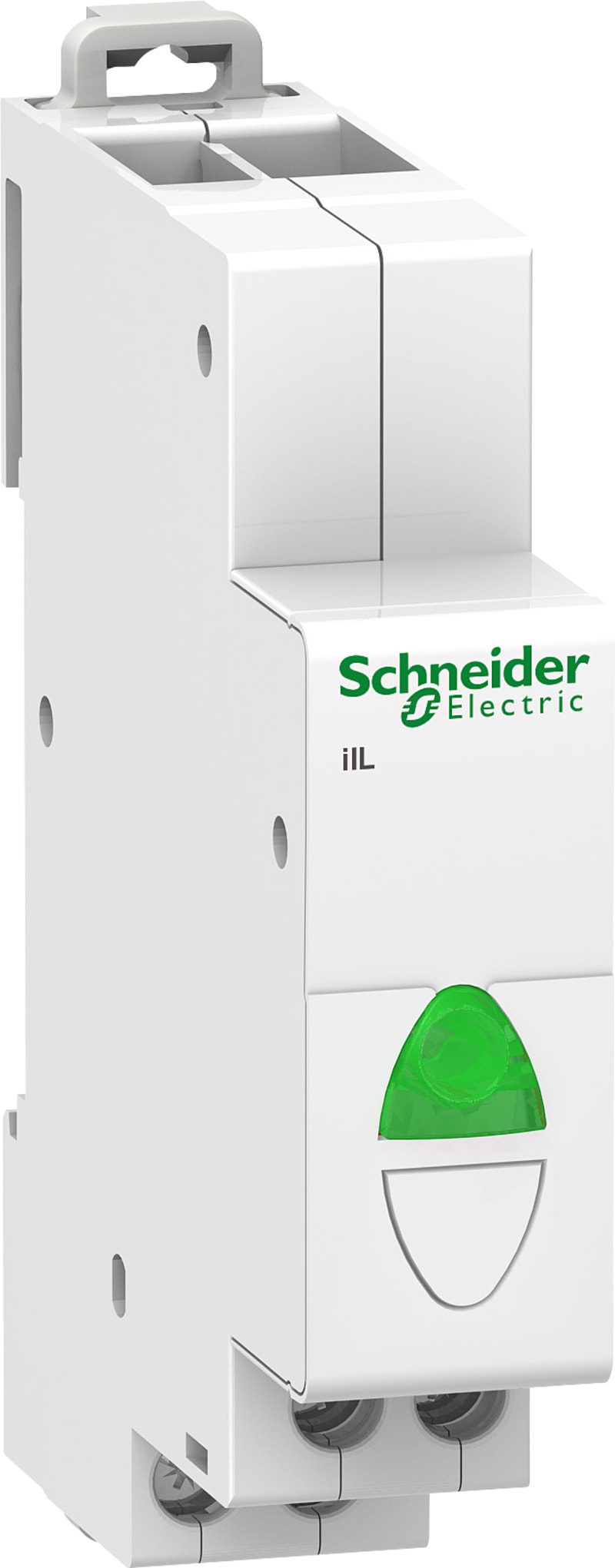

Schneider Electric ACTI9 iIL single indicator light - Green - 110-230 Vac A9E18321
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric A9E18321 — Acti9 auxiliary contact. Auxiliary or alarm contact block for the Acti9 modular range. Indicator lamp iIL green 110/230VAC.
Technical Specifications
- Manufacturer part number (MPN)
- A9E18321
- EAN / GTIN
- 3606480088339
- Sales unit
- pcs
- Package quantity
- 12 pcs
- Voltage
- 110/230 V AC
- range of product
- Acti9
- Product name
- Acti9 iIL
- Product or component type
- Modular pilot light
- Device short name
- iIL
- [Us] rated supply voltage
- 110...230 V AC at 50/60 Hz; 110...130 V DC
- indicator light
- 1 LED green, service life 100000 h of constant lighting efficiency (consumption 0.3 W)
- mounting mode
- Fixed
- Mounting support
- Symmetrical DIN rail
- Comb busbar and distribution block compatibility
- Upside: ProDis
- 9 mm pitches
- 2
- Height
- 82 mm
- Width
- 18 mm
- Depth
- 69.5 mm
- Colour
- White (RAL 9003)
- Auxiliary connection terminal
- Tunnel type terminal 1 cable(s) rigid 0.5 mm²; Tunnel type terminal 2 cable(s) rigid 2.5 mm²; Tunnel type terminal 1 cable(s) flexible 0.5 mm²; Tunnel type terminal 2 cable(s) flexible 2.5 mm²; Tunnel type terminal 2 cable(s) flexible with ferrule 2.5 mm²
- Wire stripping length
- 9 mm
- Tightening torque
- 1 N.m
- Standards
- IEC 60947-5-1
- IP degree of protection
- IP2; IPxx B
- Pollution degree
- 3
- Tropicalisation
- 2
- Relative humidity
- 95 % at 55 °C
- Ambient air temperature for operation
- -35…70 °C
- Ambient air temperature for storage
- -40…80 °C
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 12
- Number of Units in Package 3
- 108
- Warranty (in months)
- 18
- Colour calotte
- Green
- Lamp type
- LED
- Max. lamp power
- 0.3 W
- Rated voltage
- 230 V
- Voltage type
- AC
- Width in number of modular spacings
- 1
- Built-in depth
- 69.5 mm
- Degree of protection (IP)
- IP20
- Country of origin
- Belgium
Standards & Compliance
- HS Code
- 8531.80
Cross References
- EAN 3606480088339
- SAP 1000343257
- Code 81003176
Product Documentation
