Schneider Electric ACTI9 iPB 1NC single push button grey - indicator light red 12-48VAC/dc A9E18039
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric A9E18039 — Acti9 auxiliary contact. Auxiliary or alarm contact block for the Acti9 modular range. Push-button iPB 1NC grey/red <48AC/DC.
Technical Specifications
- Manufacturer part number (MPN)
- A9E18039
- EAN / GTIN
- 3606480088315
- Sales unit
- pcs
- Package quantity
- 12 pcs
- Contact configuration
- 1 NC
- range of product
- Acti9
- Product name
- Acti9 iPB
- Product or component type
- Push-button
- Device short name
- iPB
- Standards
- IEC 60669-1; IEC 60947-5-1
- Contacts type and composition
- 1 NC
- [Ie] rated operational current
- 20 A
- [Ue] rated operational voltage
- 250 V AC
- Control type
- 1 push-button grey
- Local signalling
- LED indicator red, service life 100000 h of constant lighting efficiency (consumption 0.3 W)
- Signalling circuit voltage
- AC: 12...48 V 50/60 Hz; DC: 12...48 V
- mounting mode
- Fixed
- Mounting support
- 35 mm symmetrical DIN rail
- Comb busbar and distribution block compatibility
- Upside: Clario; Upside: Librio; Upside: ProDis
- 9 mm pitches
- 2
- Height
- 82 mm
- Width
- 18 mm
- Depth
- 71.5 mm
- Colour
- White
- Electrical durability
- AC-22: 30000 cycles AC 50/60 Hz
- Connections - terminals
- Staggered tunnel terminal1 cable(s) 0.5 mm² rigid; Staggered tunnel terminal1 cable(s) 0.5 mm² flexible; Staggered tunnel terminal1 cable(s) 0.5 mm² flexible with ferrule; Staggered tunnel terminal2 cable(s) 2.5 mm² rigid; Staggered tunnel terminal2 cable(s) 2.5 mm² flexible; Staggered tunnel terminal2 cable(s) 2.5 mm² flexible with ferrule
- Wire stripping length
- 9 mm
- Tightening torque
- 1 N.m
- Tropicalisation
- 2
- Relative humidity
- 95 % at 55 °C
- Ambient air temperature for operation
- -35…70 °C
- Ambient air temperature for storage
- -40…80 °C
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 12
- Number of Units in Package 3
- 108
- Warranty (in months)
- 18
- Number of contacts as normally closed contact
- 1
- Switching current
- 20 A
- Switching voltage
- 250 V
- Voltage type
- AC
- With signal lamp
- Yes
- Colour calotte
- Red
- Lamp type
- LED
- Max. lamp power
- 0.3 W
- Lamp voltage
- 12–48 V
- Colour button
- Grey
- Width in number of modular spacings
- 1
- Built-in depth
- 50 mm
- Degree of protection (IP)
- IP20
- Country of origin
- Belgium
Standards & Compliance
- HS Code
- 8536.50
Cross References
- EAN 3606480088315
- SAP 1000343250
- Code 81109014
Product Documentation
More from Schneider Electric
Schneider Electric

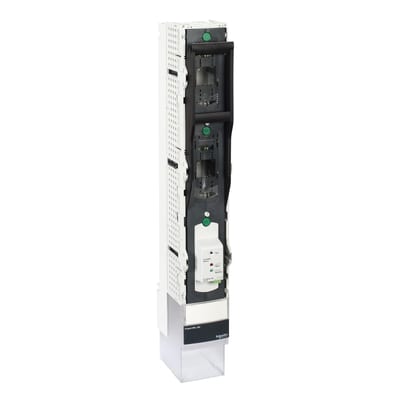

Schneider Electric ISFL250 direct 185mm busbar screws M12 - fuse switch-disconnector LV480863
Schneider Electric
Schneider Electric Circuit breaker, ComPacT NSX250R, 200KA/415VAC, 3 poles, MicroLogic 5.2E trip unit 250A C25R35E250
Schneider Electric
CYB-PR Power Supply 12 VOLT
5972700
Schneider Electric

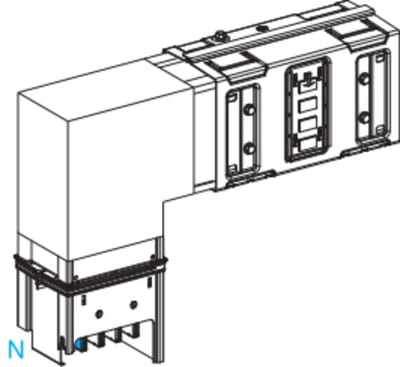

Angle NED 500-630A (KSA630DLF401)
Schneider Electric

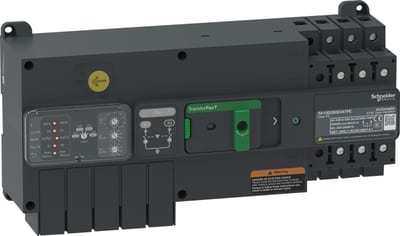

Schneider Electric transfer switch, TransferPacT automatic, 63A, 400V, 3P, rotary, frame 100A TA10D3S0634TPE
