Exxact Switch 1-Pole SCREW White
Pricing
Request a quote
We reply within 24 hours
Product Description

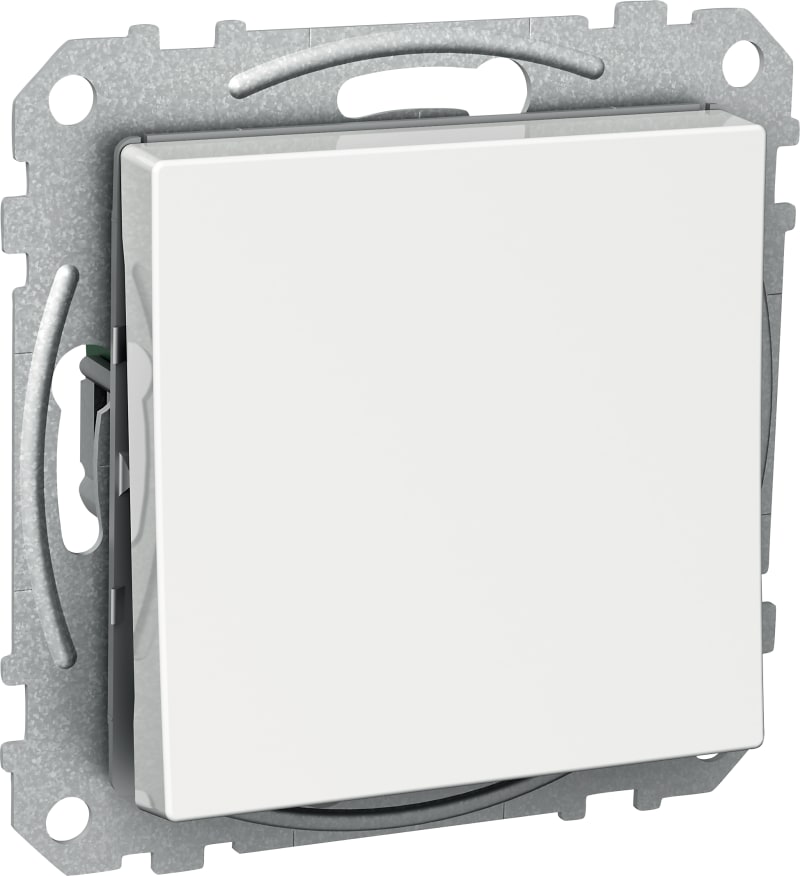

Schneider Electric WDE002201 Exxact Switch 1-pole white.
Technical Specifications
- Manufacturer part number (MPN)
- WDE002201
- EAN / GTIN
- 3606480200809
- HS code
- 8536.90
- Sales unit
- pcs
- Package quantity
- 5 pcs
- Lifecycle status
- Phased out
- Number of poles
- 1P
- Wiring system
- Switch 1-pole
- Method of operation
- Rocker/button
- Assembly arrangement
- Basic element with adaptor plate
- Push button switch
- No
- Number of rockers
- 1
- Mounting method
- Flush-mounted
- Type of fastening
- Mounting with claw and screw
- With mounting plate
- Yes
- Material
- Plastic
- Material quality
- Thermoplastic
- Halogen free
- Yes
- Anti-bacterial treatment
- No
- Surface protection
- Untreated
- Surface finishing
- Glossy
- Colour
- White
- RAL-number (similar)
- 9003
- Label space/information surface
- No
- Lighting
- No
- Type of lighting
- Not included
- Suitable for degree of protection (IP)
- IP21
- Nominal voltage
- 250 V
- Rated current
- 16 A
- Switching current for fluorescent lamps
- 16 AX
- Monitoring contact
- No
- Connection type
- Screwed terminal
- Heating switch
- No
- Washing machine switch
- No
- Device width
- 71 mm
- Device height
- 71 mm
- Device depth
- 33 mm
- Built-in depth
- 15 mm
- Compatible with Apple HomeKit
- No
- Compatible with Google Assistant
- No
- Compatible with Amazon Alexa
- No
- IFTTT support available
- No
- Colour of switch operator
- White
- Country of origin
- Denmark
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3606480200809
- SAP 1000094065
- Code 8870207
Product Documentation
More from Schneider Electric
Schneider Electric
Schneider Electric Circuit breaker basic frame, ComPacT NSX100L, 150KA/415VAC, 3 poles, 100A frame rating, without trip unit C10L3
Schneider Electric
Vertical TILK.4P 1600A
33643
Schneider Electric
Schneider Electric ABS box IP66 IK07 RAL7035 INT.H175W105D100 EXT.H192W121D105 Opaque cover H40 NSYTBS191210H
Schneider Electric

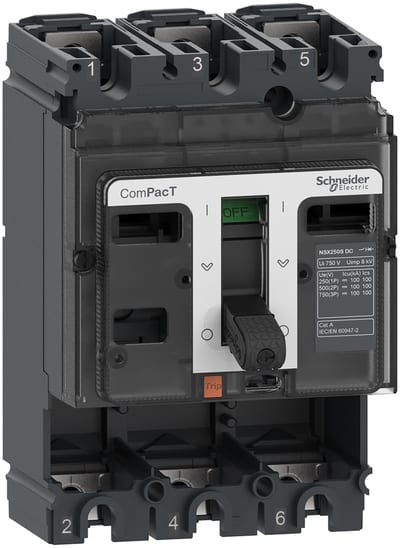

Schneider Electric Circuit breaker basic frame, ComPacT NSX250S DC, 100KA/750VDC, 3 poles, 250A frame rating, without trip unit C25S3D
Schneider Electric

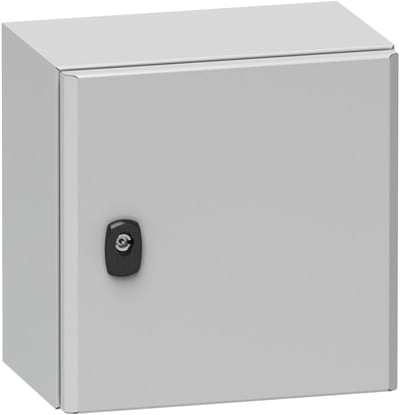

Schneider Electric NSYS3D12840 Wall mounted steel enclosure, PanelSeT S3D, plain door, without mounting plate, 1200X800X400MM, IP66, IK10
Schneider Electric

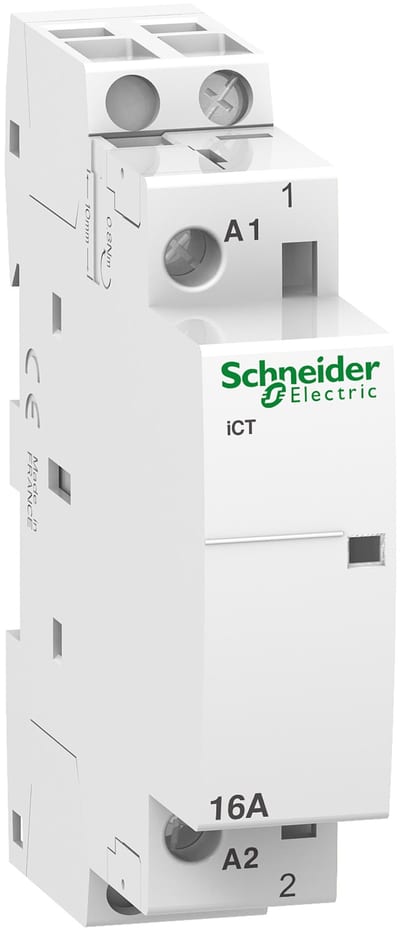

Schneider Electric iCT 16A 1NO 230...240V 50Hz contactor A9C22711
Schneider Electric

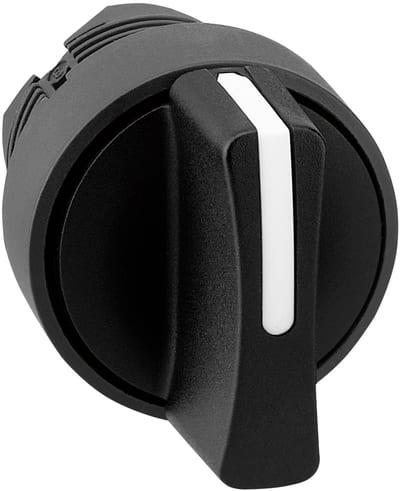

Schneider Electric ZB5AD7 black selector switch head Ø22 3-Position spring return
