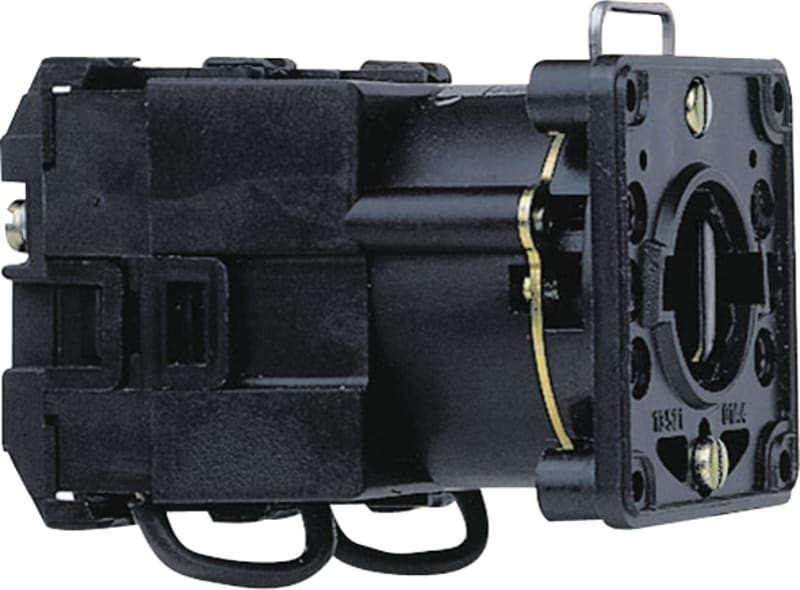

CAM Switch,Step Selector (K1D004Q)

Schneider Electric K1D004Q Cam Switch 4 Steps +0 1-POLE Bottom.

Manufacturer part number (MPN)

K1D004Q

EAN / GTIN

3389110442380

Sales unit

pcs

Package quantity

16 pcs

Range of product

Harmony K

Product or component type

Cam switch body

Component name

K1

[Ith] conventional free air thermal current

12 A

Sub-assembly composition

Contact blocks + fixing plate

Cam switch function

Stepping switch

Off position

With Off position

Poles description

1P

Switching positions

Right: 0° - 45° - 90° - 135° - 180°

Mounting location

Front

fixing mode

Ø 22 mm hole

Bezel material

Plastic

Number of steps

4

Switching angle

45 °

[Ui] rated insulation voltage

690 V (pollution degree 3) conforming to IEC 60947-1

[Ithe] conventional enclosed thermal current

10 A

Rated operational power in W

10500 W AC-21, 500 - 660 V 3 phases conforming to IEC 947-3; 1100 W AC-3, 230 V 3 phases conforming to IEC 947-3; 1500 W AC-23A, 230 V 3 phases conforming to IEC 947-3; 1500 W AC-3, 400 V 1 phase conforming to IEC 947-3; 1500 W AC-3, 400 V 3 phases conforming to IEC 947-3; 1500 W AC-3, 500 V 3 phases conforming to IEC 947-3; 1500 W AC-3, 690 V 3 phases conforming to IEC 947-3; 2200 W AC-23A, 400 V 3 phases conforming to IEC 947-3; 2200 W AC-23A, 500 V 3 phases conforming to IEC 947-3; 2200 W AC-23A, 690 V 3 phases conforming to IEC 947-3; 4800 W AC-21, 230 V 3 phases conforming to IEC 947-3; 600 W AC-3, 230 V 1 phase conforming to IEC 947-3; 8300 W AC-21, 400 V 3 phases conforming to IEC 947-3

[Ie] rated operational current AC

1.8 A at 690 V AC-3 3 phases conforming to IEC 947-3; 2.8 A at 500 V AC-3 3 phases conforming to IEC 947-3; 2.8 A at 690 V AC-23A 3 phases conforming to IEC 947-3; 3.3 A at 400 V AC-3 3 phases conforming to IEC 947-3; 3.8 A at 500 V AC-23A 3 phases conforming to IEC 947-3; 4.6 A at 230 V AC-3 3 phases conforming to IEC 947-3; 4.8 A at 400 V AC-23A 3 phases conforming to IEC 947-3; 5.6 A at 230 V AC-23A 3 phases conforming to IEC 947-3; 1 A at 500 V AC-15 conforming to IEC 947-5-1; 2 A at 400 V AC-15 conforming to IEC 947-5-1; 3 A at 230 V AC-15 conforming to IEC 947-5-1

Electrical durability

1000000 cycles AC-15; 1000000 cycles AC-21; 500000 cycles AC-23; 500000 cycles AC-3

Maximum operating rate

2.5 cyc/mn AC-21; 2.5 cyc/mn AC-23; 2.5 cyc/mn AC-3; 8.333 cyc/mn AC-15

Short-circuit current

10000 A

Short-circuit protection

16 A cartridge fuse, type gG

[Uimp] rated impulse withstand voltage

4 kV in isolating function; 6 kV conforming to IEC 947-1

Contact operation

Slow-break

positive opening

With

Electrical connection

Captive screw clamp terminals flexible, clamping capacity: 2 x 1.5 mm²; Captive screw clamp terminals solid, clamping capacity: 1 x 2.5 mm²

Mechanical durability

1000000 cycles

Product weight

0.11 kg

Standards

IEC 60947-3 for power circuit; IEC 60947-5-1 for control circuit; CENELEC EN 50013

Product certifications

CSA 240 V 1 hp 1 phase; CSA 240 V 3 hp 3 phases 2 -pole(s); UL 240 V 1 hp 3 phases; UL 240 V 0.33 hp 1 phase 2 -pole(s)

Protective treatment

TC

Ambient air temperature for operation

-25…55 °C

Ambient air temperature for storage

-40…70 °C

Shock resistance

30 gn conforming to IEC 68-2-27

Vibration resistance

5 gn conforming to IEC 68-2-6 (f = 10…150 Hz)

Number of Units in Package 1

1

Number of Units in Package 2

16

Warranty (in months)

18

Model

On/off switch

Rated operation power at AC-3, 400 V

1.5 kW

Rated permanent current Iu

12 A

Number of poles

1

Rated operation current Ie at AC-3, 400 V

3.3 A

With zero (off) position

Yes

Housing material

Plastic

With retraction in 0-position

No

Type of electrical connection of main circuit

Screw connection

Suitable for floor mounting

No

Suitable for front mounting

No

Suitable for distribution board installation

No

Suitable for intermediate mounting

No

Complete device in housing

No

Country of origin

Czechia

HS Code

8536.50
