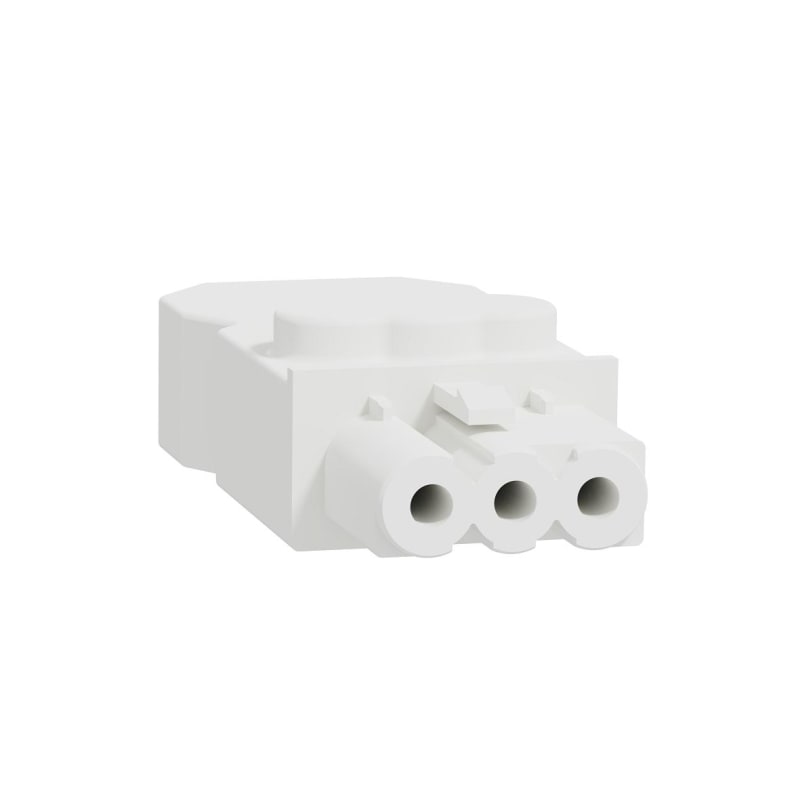

Connector mini female straight 5ST
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric INS44305 Connector Mini Female Straight 5 pcs.
Technical Specifications
- Manufacturer part number (MPN)
- INS44305
- EAN / GTIN
- 3606489820367
- Sales unit
- pcs
- Package quantity
- 36 pcs
- Rated voltage
- 250 V
- Rated current
- 16 A
- Number of poles
- 3
- Degree of protection (IP)
- IP20
- Connection type
- Screw connection
- Model
- Plug
- Cable diameter
- 5.5–8.5 mm
- Connection cross section (fine-strand)
- 1.5–2.5 mm²
- Number of connections per pole
- 1
- Pole codification
- 1, 2, PE
- Mechanical coding
- Yes
- Type of locking
- Integrated in plug-in connector
- With strain relief
- Yes
- Max. continuous temperature resistance contact part
- 100 °C
- Housing material
- Polyamide (PA)
- Halogen free
- Yes
- Fire load
- 0.06 kWh
- Contact material
- CuZn
- Surface treatment contacts
- Silver-plated
- Pollution degree
- 2
- Rated surge voltage
- 4 kV
- Length
- 54 mm
- Height
- 15 mm
- Width
- 24 mm
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8536.69
Cross References
- EAN 3606489820367
- SAP 1200478223
- Code 82563052
