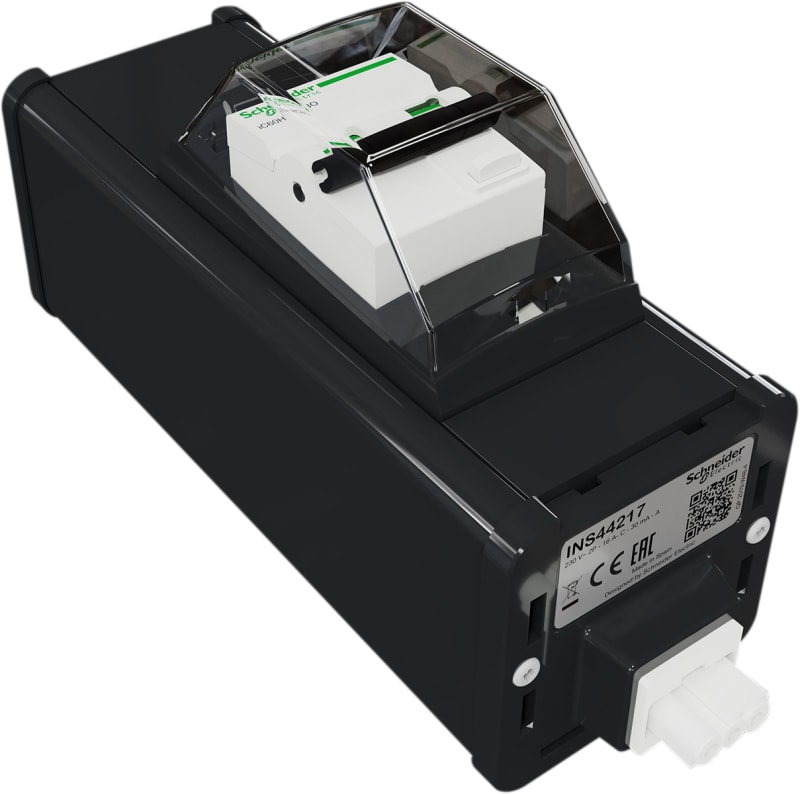

Schneider Electric INS44217 Unica System+ Modular Unit with 2-Pole RCD — 16 A, 250 V, Anthracite

A Unica System+ prewired modular power unit fitted with a two-pole residual current breaker, rated 16 A at 250 V. It is a made-up assembly rather than a loose device: the unit arrives wired, in a rectangular aluminium housing, with quick-connect (Mini-Wieland) power connections at each end so several modular units can be chained onto one and the same power circuit. It is designed for pole, post and desk mounting, which is where this style of protected power take-off belongs — office furniture, benches, workstations and similar installations where the earth-fault protection has to travel with the outlet. THIS ITEM IS THE ANTHRACITE VERSION, a dark grey. It is otherwise identical to the INS44216, which is the white version; colour is the only difference between the two. Supplied by cBallast on quote-to-invoice terms; lead time and freight are quoted per RFQ against the destination Incoterm.

Manufacturer part number (MPN)

INS44217 EAN / GTIN: 3606489819484 HS code: 8536.90 Sales unit: pcs Package quantity: 3 pcs Degree of gloss: Matt With on/off switch: No Mains filter: No Model: Surface mounting Folding: No Extendable: No Shape: Rectangular material: Aluminium Length: 196 mm Width: 64 mm Height: 64 mm Number of USB connections: 2 Overvoltage protection: No With built-in USB power supply: No Nominal voltage: 230 V Degree of protection (IP): IP20 Impact strength: IK05 Anti-bacterial treatment: No Country of origin: Spain

Device type

Unica System+ prewired modular unit with 2-pole residual current breaker

Rated current

16 A

Rated voltage

250 V

Colour

Anthracite (dark grey)

Connection system

Quick connect (Mini-Wieland), chainable at each end

Mounting

Pole, post or desk mounting

Colour alternative

INS44216 — identical unit in white

HS Code

8536.90

• EAN 3606489819484
• SAP 1200478184
• Code 82563017
• INS44216 (white version)
