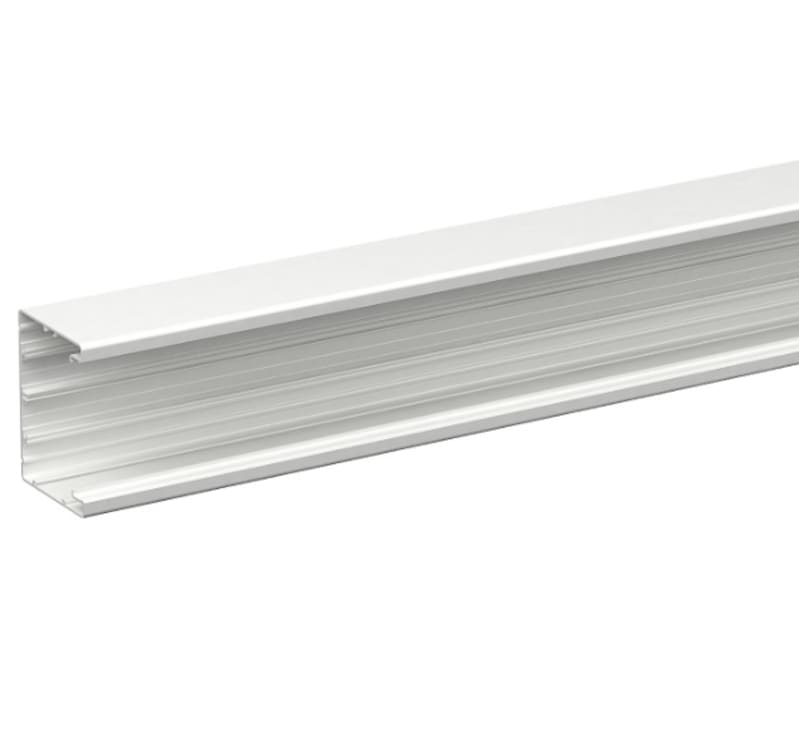

INKA Wall Trunking 101x72 mm, 2.5 m, Lacquered Aluminium, Polar White, Halogen-Free
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric 5504003 INKA wall trunking base section 101x72 mm, L=2.5 m, lacquered aluminium, polar white, halogen-free.
Technical Specifications
- Manufacturer part number (MPN)
- 5504003
- EAN / GTIN
- 7315880036210
- Sales unit
- pcs
- Package quantity
- 4 pcs
- Width
- 100 mm
- Depth
- 72 mm
- Length
- 2500 mm
- Covers included
- No
- Cover width 1
- 80 mm
- Symmetric
- Yes
- Construction type rectangular
- Yes
- Material
- Aluminium
- Halogen free
- Yes
- Anti-bacterial treatment
- No
- Surface protection
- Coated
- Colour
- White
- RAL-number
- 9016
- Construction rear wall (inner side)
- Continuous other profile
- With protective foil
- Yes
- Number of plug-in partitions
- 3
- With duct connector
- No
- Bottom perforation
- Yes
- Mounting method cover
- Inner lying
- With cable fixing clip
- No
- Usable cross section
- 5565 mm²
- Degree of protection (IP)
- IP20
- Impact strength
- IK07
- Operating temperature
- -5–60 °C
- Country of origin
- Sweden
Standards & Compliance
- HS Code
- 7616.99
Cross References
- EAN 7315880036210
- SAP 1000564387
- Code 8666711
Product Documentation
