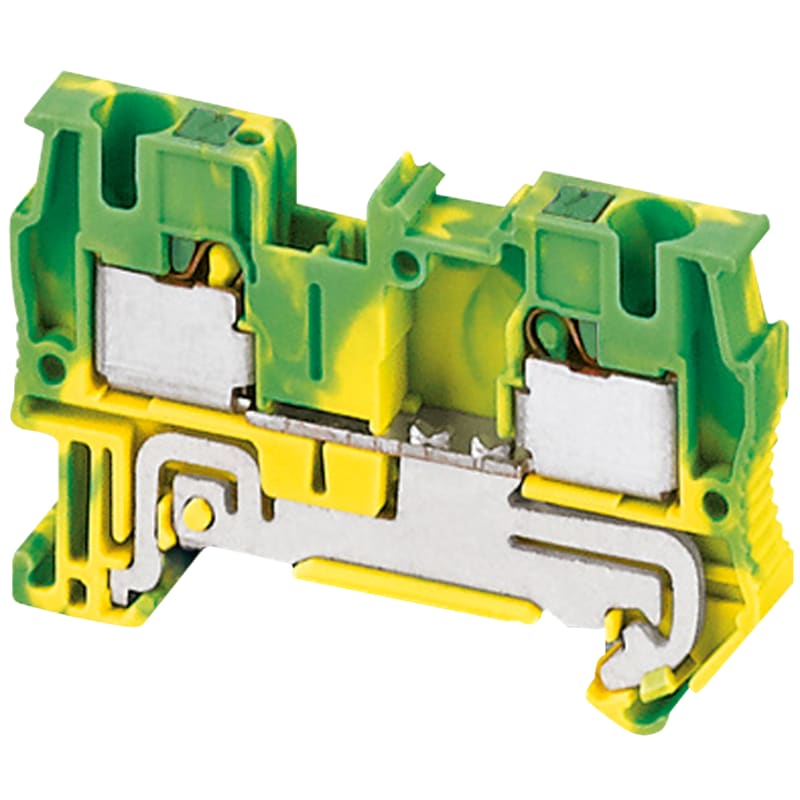

Schneider Electric NSYTRP42PE Linergy TR Push-In PE Terminal Block 4 mm² 2-Position

Schneider Electric NSYTRP42PE is a green-yellow Linergy TR protective-earth terminal block with push-in connection for 4 mm² conductors, arranged as one upstream and one downstream terminal. It clips onto a DIN rail, accepts solid conductors up to 6 mm² and flexible conductors up to 4 mm², and requires no tool for connection. The polyamide 6/6 housing measures 6.2 mm wide, 36.5 mm high and 56 mm long; supplied in sets of 50.

Manufacturer part number (MPN)

NSYTRP42PE

EAN / GTIN

3606480533280

Sales unit

pcs

Package quantity

50 pcs

Conductor cross-section

4 mm²

Range

Linergy

Product name

Linergy TR

Product or component type

Terminal block

Device short name

TRP

Terminal block type

Protective earth

Terminal block level

1

mounting mode

Clip-on

Nominal cross section

4 mm²

Length

56 mm

Colour

Green-yellow

Quantity per set

Set of 50

Width

6.2 mm

Height

36.5 mm

Connections - terminals

1 x push-in: upstream; 1 x push-in: downstream

number of connections

2

Connection position

Top

Number of measurement input

2

Cable cross section

0.08…6 mm², solid; 0.2…4 mm², flexible with cable end; 0.08…4 mm², flexible without cable end

Wire stripping length

12 mm

Tool type

Disconnection: flat screwdriver; Connection: without tool

Material

Polyamide 6/6: insulating case

Dielectric loss

0.01 at 1 MHz conforming to IEC 60250; 0.01 at 1 MHz conforming to VDE 0303-T4

Dielectric constant

3.7 at 1 MHz

Resistivity

10000 MΩ.m conforming to IEC 60093; 10000 MΩ.m conforming to VDE 0303-T30

Surface resistance

1000 GΩ conforming to IEC 60093; 1000 GΩ conforming to VDE 0303-T30

Creep resistance

500 CTI (> 400 kB) conforming to IEC 60093; 500 CTI (> 400 kB) conforming to VDE 0303-T30

Flame retardance

V0, thickness0.8 mm conforming to UL 94

Product weight

12.5 g

Range compatibility

PrismaSeT G; PrismaSeT P; PrismaSet HD; PrismaSeT Pack 250; PanelSeT; Mureva; PrismaSeT XS; TeSys

Product compatibility

Spacial enclosures

Product certifications

CSA; UL; GL

Dielectric strength

1000 V conforming to IEC 60243-1

Ambient air temperature for operation

-40…130 °C conforming to IEC 60216-1; -40…130 °C conforming to VDE 0304-T21

Number of Units in Package 1

1

Number of Units in Package 2

50

Number of Units in Package 3

200

Country of origin

CN

Warranty (in months)

18

PEN function possible

No

Connectable conductor cross section solid-core

0.08–6 mm²

Connectable conductor cross section multi-wired

0.08–4 mm²

Type of electrical connection 1

Plug-in connection

Type of electrical connection 2

Plug-in connection

Number of levels

1

Number of clamp positions per level

2

Mounting method

DIN rail (top hat rail) 35 mm

Material insulation body

Thermoplastic

Operating temperature

-40–130 °C

Width/grid dimension

6.2 mm

Depth

56 mm

Closing plate required

Yes

HS Code

8536.90

• EAN 3606480533280
• SAP 1000402387
• Code 81069783
