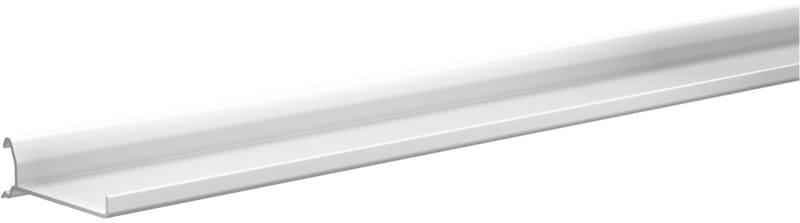

Schneider Electric OptiLine 45 OptiLine 70 - cable shelf - PVC (polyvinyl chloride) - white ISM10902
Pricing
Request a quote
We reply within 24 hours
Product Description
Single kabelhylle as mounted in trunking base for to separere cables.
Technical Specifications
- Manufacturer part number (MPN)
- ISM10902
- EAN / GTIN
- 3606480028410
- Sales unit
- pcs
- Package quantity
- 24 pcs
- Range of product
- OptiLine 45; OptiLine 70
- Cabling installation system
- Trunking
- product type
- Cable shelf
- colour
- White (RAL 9010)
- quantity package 1 / unit
- 24 m
- Trunking material
- Plastic; Aluminium
- Trunking dimension
- 75 x 55 mm; 120 x 55 mm; 165 x 55 mm; 95 x 55 mm; 155 x 55 mm; 140 x 55 mm; 185 x 55 mm; 80 x 55 mm
- fixing mode
- Snap-fitted
- product material
- PVC (polyvinyl chloride)
- Length
- 1000 mm
- Height
- 17 mm
- Width
- 47 mm
- Standards
- 73/23/EEC; 93/68/EEC; EN 50085-1:2005; EN 50085-1:2013/A1; EN 50085-2-1:2006; EN 50085-2-1:2011/A1; NF C 68-102
- operating temperature
- -25…60 °C
- IP degree of protection
- IP30
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 0.2 cm
- Package 1 Width
- 4.7 cm
- Package 1 Length
- 100 cm
- Package 1 Weight
- 118 g
- Unit Type of Package 2
- BB1
- Number of Units in Package 2
- 24
- Package 2 Height
- 11.3 cm
- Package 2 Width
- 15 cm
- Package 2 Length
- 102 cm
- Package 2 Weight
- 3.158 kg
- Unit Type of Package 3
- P12
- Number of Units in Package 3
- 720
- Package 3 Height
- 82 cm
- Package 3 Width
- 80 cm
- Package 3 Length
- 120 cm
- Package 3 Weight
- 106.74 kg
- Warranty (in months)
- 18
- Suitable for duct depth
- 55 mm
- Type of fastening
- Snap on
- Material
- Plastic
- Anti-bacterial treatment
- No
- Model
- 1-fold
- Halogen free
- No
- Surface protection
- Untreated
- Country of origin
- United Kingdom
Standards & Compliance
- HS Code
- 3925.90
Cross References
- EAN 3606480028410
- SAP 1000484462
- Code 8234272
