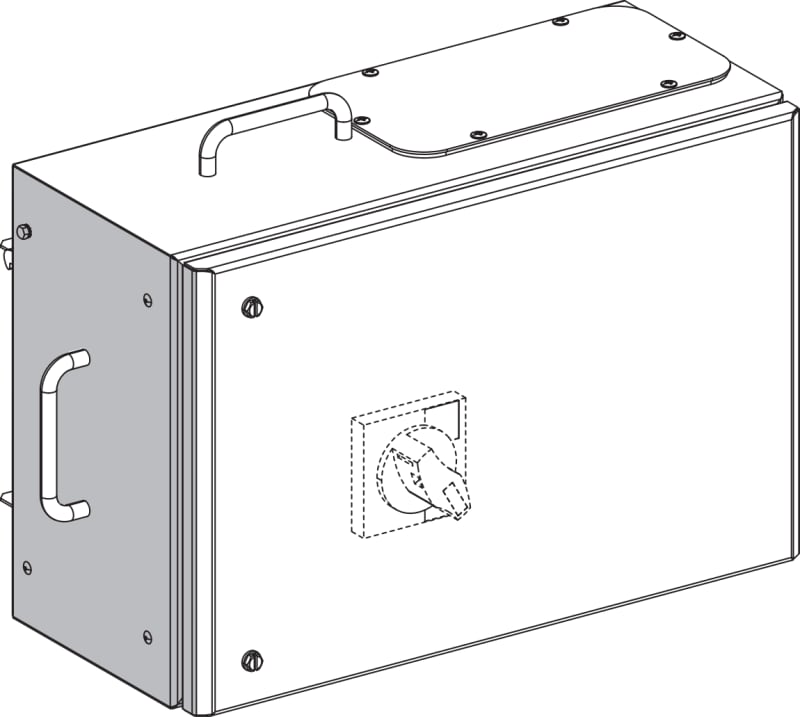

Schneider Electric KSB250DC4 TAP OFF UNIT 250A COMPACT NS

Schneider Electric KSB250DC4 TAP OFF UNIT 250A COMPACT NS is listed under Electrical Components / Moulded Case Circuit Breakers. Sales unit: pcs; Rated current: 250 A; Range of product: Canalis; Offer type: Classic; Product or component type: Tap-off unit; [Ie] rated operational current: 250 A at 35 °C.

Manufacturer part number (MPN)

KSB250DC4

EAN / GTIN

3606480005756

Sales unit

pcs

Rated current

250 A

Range of product

Canalis

Range compatibility

Canalis KS busbar trunking; Canalis KT busbar trunking

Offer type

Classic

Product or component type

Tap-off unit

[Ie] rated operational current

250 A at 35 °C

Protection type

Circuit breaker: Compact NSX250

Provided equipment

circuit-breaker to be ordered separately

Mounting mode

Plate with fixed polarity

Tap-off unit polarity

3L+N+PE

Colour

White (RAL 9001)

Device application

Medium power distribution

[Ue] rated operational voltage

400 V depending on protective device; 500 V depending on protective device

[Uimp] rated impulse withstand voltage

6.8 kV

[Ui] rated insulation voltage

400 V depending on protective device; 500 V depending on protective device

Network frequency

50/60 Hz

Control type

Extended rotary handle

Electrical connection

Crimp lug - ISO40 150 mm² flexible; Crimp lug - ISO40 150 mm² rigid

door/cover opening side

Right

Tap-off unit disconnection mode

By rotary operating handle

Number of openings

1 opening for FL21 gland plate

Standards

IEC 61439-6; IEC 61439-1

Body material

Metal

Width

500 mm

Depth

300 mm

depth (door open)

726.5 mm

Height

400 mm

Product weight

12.5 kg

Earthing system

TT; TN-S; IT

IP degree of protection

IP55 conforming to IEC 60529

IK degree of protection

IK08 conforming to IEC 62262

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

34.000 cm

Package 1 Width

45.000 cm

Package 1 Length

55.000 cm

Package 1 Weight

13.358 kg

Unit Type of Package 2

P12

Number of Units in Package 2

4

Package 2 Height

79.400 cm

Package 2 Width

80.000 cm

Package 2 Length

120.000 cm

Package 2 Weight

65.434 kg

Country of origin

FR

Warranty (in months)

18

RAL-number

9001

With locking

No

Protection

None

Number of conductors (without earthing)

4

Phase selection

No

Number of poles

3

Length

532 mm

Degree of protection (IP)

IP55

Branch off type

Pipe in-lead

Rated voltage AC 50 Hz

230–690 V

Rated current AC 50 Hz

250 A

HS Code

8536.90

• EAN 3606480005756
• SAP 1000470841
• Code 8932413
