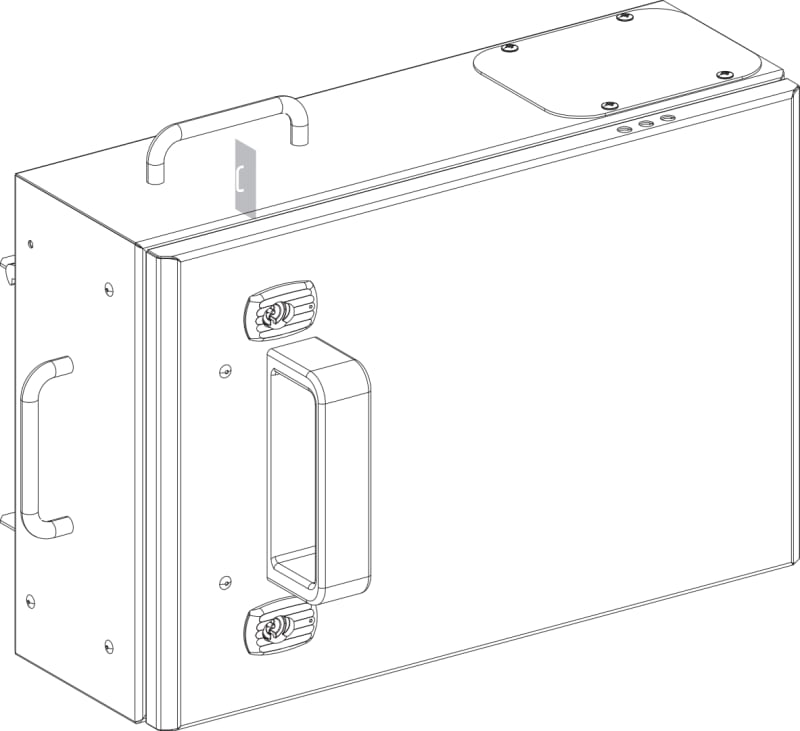

Schneider Electric KSB100SE4 TOU 100A FUSE T00
Pricing
Request a quote
We reply within 24 hours
Overview
Schneider Electric KSB100SE4 TOU 100A FUSE T00 is listed under Electrical Components / Fuses. Sales unit: pcs; Rated current: 100 A; Range of product: Canalis; Product or component type: Tap-off unit; [Ie] rated operational current: 100 A at 35 °C; Provided equipment: fuse to be ordered separately.
Technical Specifications
- Manufacturer part number (MPN)
- KSB100SE4
- EAN / GTIN
- 3606480005831
- Sales unit
- pcs
- Rated current
- 100 A
- Range of product
- Canalis
- Range compatibility
- Canalis KT busbar trunking; Canalis KS busbar trunking
- Product or component type
- Tap-off unit
- busbar trunking compatibility
- Canalis KS busbar trunkingplug-in; Canalis KT busbar trunking with KS type plug-in
- [Ie] rated operational current
- 100 A at 35 °C
- protection type
- fuse insulator: for aM blade type fuse, size 00 - 100 A conforming to NF; fuse insulator: for gG blade type fuse, size 00 - 100 A conforming to NF
- Provided equipment
- fuse to be ordered separately
- Mounting mode
- Plug-in with fixed polarity
- Tap-off unit polarity
- 3L+N+PE
- Colour
- White (RAL 9001)
- Device application
- Medium power distribution
- [Ue] rated operational voltage
- 230...690 V depending on protective device
- [Uimp] rated impulse withstand voltage
- 6.8 kV
- [Ui] rated insulation voltage
- 690 V depending on protective device
- Network frequency
- 50/60 Hz
- Electrical connection
- Copper cable lug - ISO63 35 mm² flexible; Copper cable lug - ISO63 50 mm² rigid
- door/cover opening side
- Right
- Tap-off unit disconnection mode
- By opening the door
- Standards
- IEC 61439-1; IEC 61439-6
- Body material
- Plastic
- Width
- 444 mm
- Depth
- 128 mm
- depth (door open)
- 577.5 mm
- Height
- 220 mm
- Product weight
- 5 kg
- Earthing system
- TT; TN-S; IT
- IP degree of protection
- IP55 conforming to IEC 60529
- IK degree of protection
- IK08 conforming to IEC 62262
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 19.000 cm
- Package 1 Width
- 24.000 cm
- Package 1 Length
- 45.500 cm
- Package 1 Weight
- 3.591 kg
- Unit Type of Package 2
- P12
- Number of Units in Package 2
- 25
- Package 2 Height
- 80.000 cm
- Package 2 Width
- 80.000 cm
- Package 2 Length
- 120.000 cm
- Package 2 Weight
- 104.000 kg
- Country of origin
- IT
- Warranty (in months)
- 18
- RAL-number
- 9001
- With locking
- No
- Protection
- None
- Number of conductors (without earthing)
- 4
- Phase selection
- No
- Number of poles
- 5
- Length
- 444 mm
- Degree of protection (IP)
- IP55
- Branch off type
- Pipe in-lead
- Rated current AC 50 Hz
- 100 A
