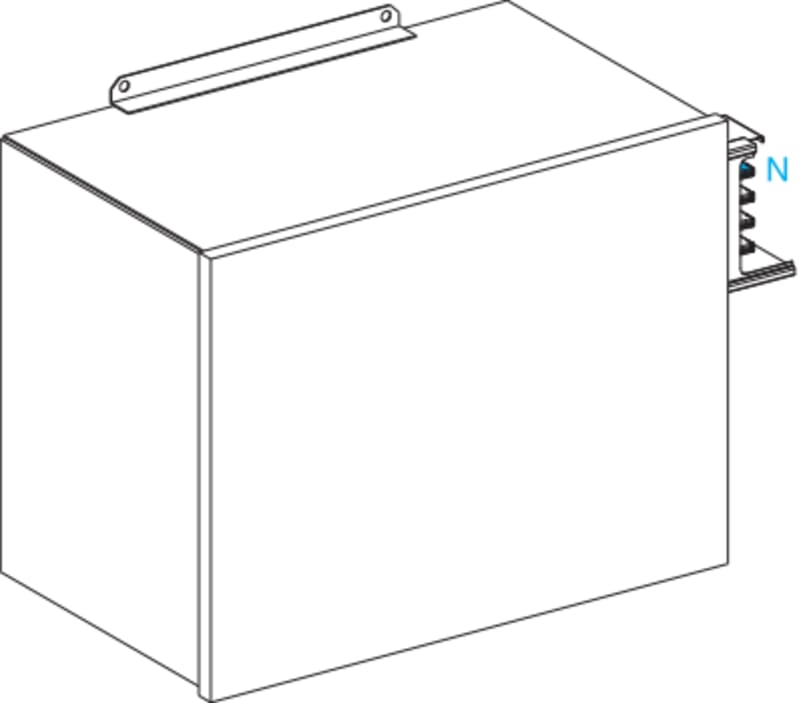

End feed LH 500-630A
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric KSA630ABG4 End feed V 500-630A.
Technical Specifications
- Manufacturer part number (MPN)
- KSA630ABG4
- EAN / GTIN
- 3606480005046
- Sales unit
- pcs
- Package quantity
- 2 pcs
- Range of product
- Canalis
- Product name
- KS
- Device short name
- KSA
- Product compatibility
- Canalis KSA busbar trunking 500…1000 A
- Offer type
- Classic
- Product or component type
- Feed unit
- Conductors material
- Aluminium
- [Ie] rated operational current
- 630 A
- [Ue] rated operational voltage
- 230...690 V
- Number of circuits
- 1
- Busbar trunking polarity
- 3L + N + PE
- Protection type
- Without protection
- Control type
- Without
- Colour
- White (RAL 9001)
- Provided equipment
- End cover
- Mounting location
- Left
- mounting mode
- By screws
- Mounting support
- Busbar
- Body material
- Metal
- Connections - terminals
- Lug for 300 mm² rigid; Lug for 300 mm² flexible
- Width
- 753 mm
- Depth
- 288 mm
- Height
- 457 mm
- Product weight
- 23 kg
- Standards
- IEC 61439-1; IEC 61439-6
- IP degree of protection
- IP55 conforming to IEC 60529
- IK degree of protection
- IK08 conforming to IEC 62262
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 2
- Country of origin
- FR
- Warranty (in months)
- 18
- Model
- Single
- RAL-number
- 9001
- Number of poles
- 5
- Length
- 753 mm
- Degree of protection (IP)
- IP55
- Power supply position
- End
- Rated voltage AC 50 Hz
- 230–690 V
- Rated current AC 50 Hz
- 630 A
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3606480005046
- SAP 1200721765
- Code 83835712
Product Documentation
More from Schneider Electric
Schneider Electric

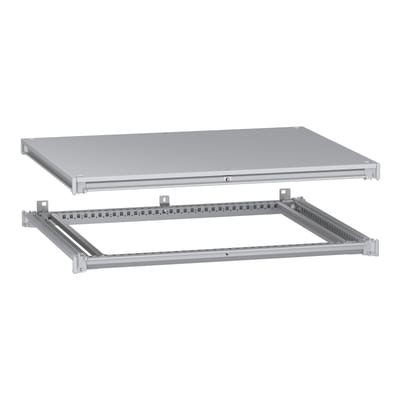

Upper+lower frame SFN 1000X800
NSYSFNC108
Schneider Electric
Schneider Electric Contactor, TeSys Deca, 3P(3NO), AC-3/3E, <=440V, 9A, 36V DC coil, snap-in terminals LC1D09ACD
Schneider Electric

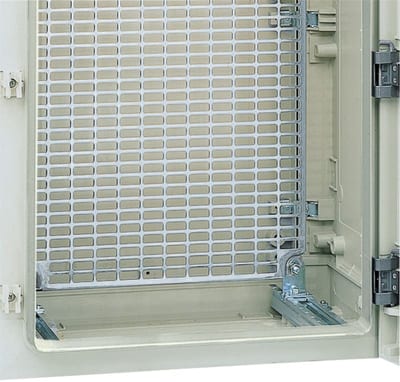

PLA125 Telequick mounting plate
NSYPMR125
Schneider Electric

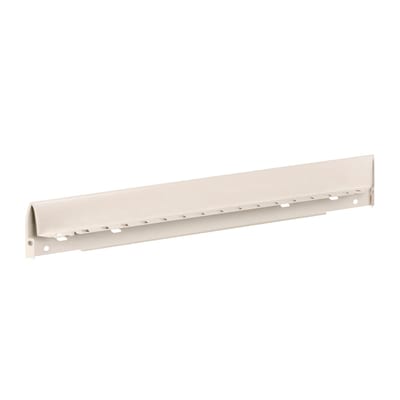

Schneider Electric Central upright, PrismaSeT G, combination profile 9M, IP30 LVS01063
Schneider Electric

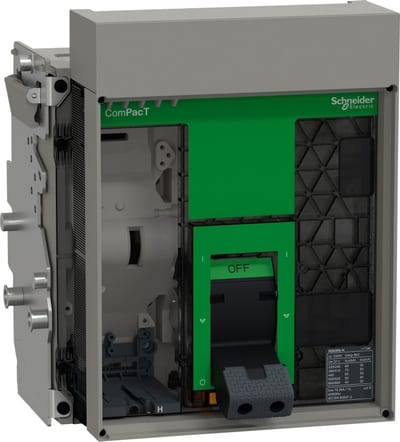

Schneider Electric Circuit breaker frame, ComPacT NS630BH, 70KA at 415VAC, 630A, 3P, withdrawable, manually operated, without control unit C063H3WM
Schneider Electric

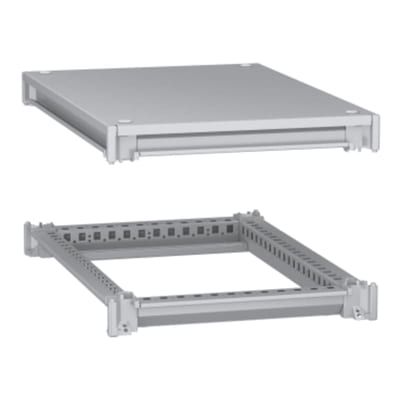

Upper+lower frame SFN 400X600
NSYSFNC46
Schneider Electric
Schneider Electric Contactor, TeSys Deca, 3P(3NO), AC-3/3E, <=440V, 9A, 127V AC 50/60Hz coil, snap-in terminals LC1D09AFC7
Schneider Electric

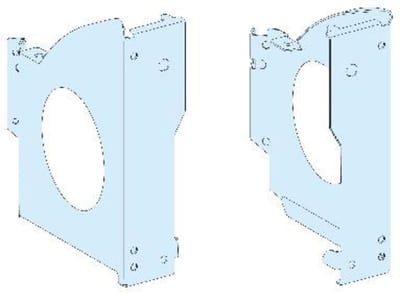

Base Brackets with Holes, PrismaSeT G
