End feed PURE WHITE 500-630A
Pricing
Request a quote
We reply within 24 hours
Product Description

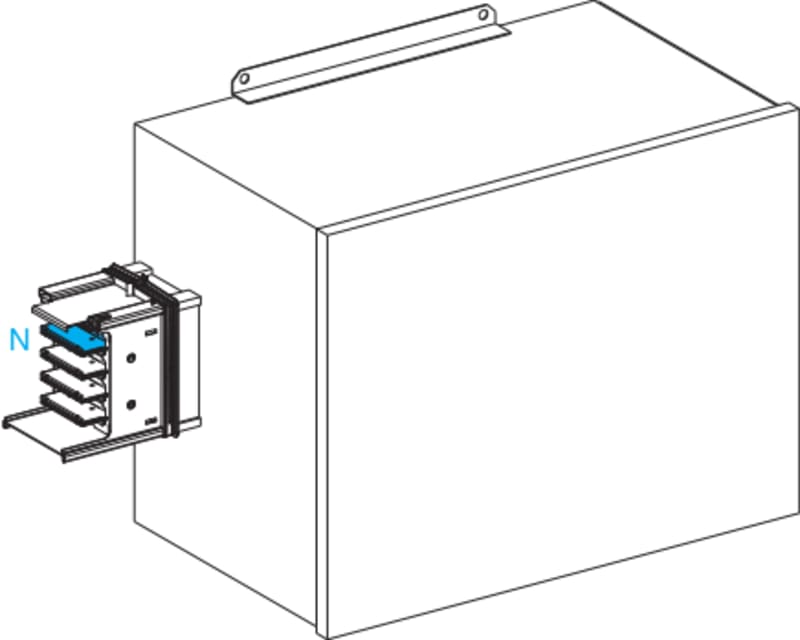

Schneider Electric KSA630ABD4 End feed H 500-630A.
Technical Specifications
- Manufacturer part number (MPN)
- KSA630ABD4
- EAN / GTIN
- 3606480005039
- Sales unit
- pcs
- Package quantity
- 2 pcs
- Range of product
- Canalis
- Product name
- KS
- Device short name
- KSA
- Product compatibility
- Canalis KSA busbar trunking 500…1000 A
- Offer type
- Classic; Rising main
- Product or component type
- Feed unit
- Conductors material
- Aluminium
- [Ie] rated operational current
- 630 A
- [Ue] rated operational voltage
- 230...690 V
- Number of circuits
- 1
- Busbar trunking polarity
- 3L + N + PE
- Protection type
- Without protection
- Control type
- Without
- Colour
- White (RAL 9001)
- Provided equipment
- End cover
- Mounting location
- Right
- mounting mode
- By screws
- Mounting support
- Busbar
- Body material
- Metal
- Connections - terminals
- Lug for 300 mm² rigid; Lug for 300 mm² flexible
- Width
- 753 mm
- Depth
- 288 mm
- Height
- 457 mm
- Product weight
- 22 kg
- Standards
- IEC 61439-1; IEC 61439-6
- IP degree of protection
- IP55 conforming to IEC 60529
- IK degree of protection
- IK08 conforming to IEC 62262
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 29.4 cm
- Package 1 Width
- 50.0 cm
- Package 1 Length
- 76.1 cm
- Package 1 Weight
- 24.0 kg
- Unit Type of Package 2
- P06
- Number of Units in Package 2
- 2
- Package 2 Height
- 80.0 cm
- Package 2 Width
- 80.0 cm
- Package 2 Length
- 60.0 cm
- Package 2 Weight
- 60.0 kg
- Country of origin
- FR
- Warranty (in months)
- 18
- Model
- Single
- RAL-number
- 9001
- Number of poles
- 5
- Length
- 753 mm
- Degree of protection (IP)
- IP55
- Power supply position
- End
- Rated voltage AC 50 Hz
- 230–690 V
- Rated current AC 50 Hz
- 630 A
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3606480005039
- SAP 1200721764
- Code 83832396
Product Documentation
More from Schneider Electric
Schneider Electric
Schneider Electric ACTI9 iIL single indicator light - Yellow - 110-230 Vac A9E18324
Schneider Electric

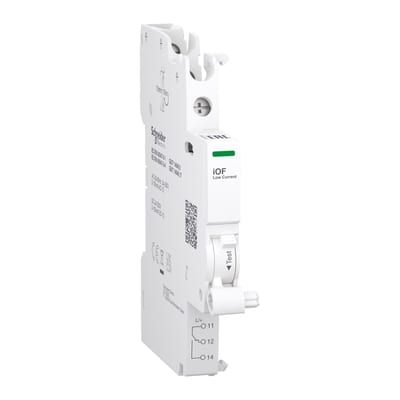

Schneider Electric Auxiliary contact, ACTI9 A9A, iOF, 1 C/O, 2MA to 100MA, 24VAC to 250VAC, 24VDC to 220VDC, top connection A9A26915
Schneider Electric

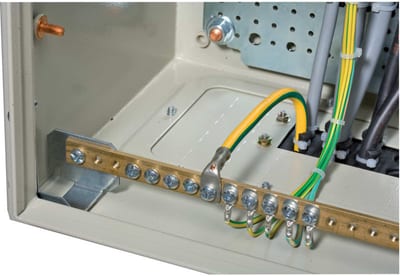

2 earth busbar brackets
NSYEDCOS
Schneider Electric
Cable Trunking (AK2GA615)
Schneider Electric
Stainless cabinet 608030 304L
SAEXP0058922
Schneider Electric
Floor-standing cabinet SMX 1600X1200X300
SAEXP0065343
Schneider Electric
Schneider Electric Power Cord, C13 to C14, 2.5M AP9870
Schneider Electric

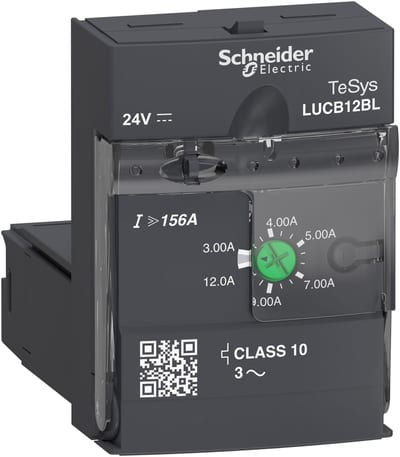

Schneider Electric Advanced control unit, TeSys U, 3-12A, 3P motors, protection & diagnostic, class 10, coil 24V DC LUCB12BL
