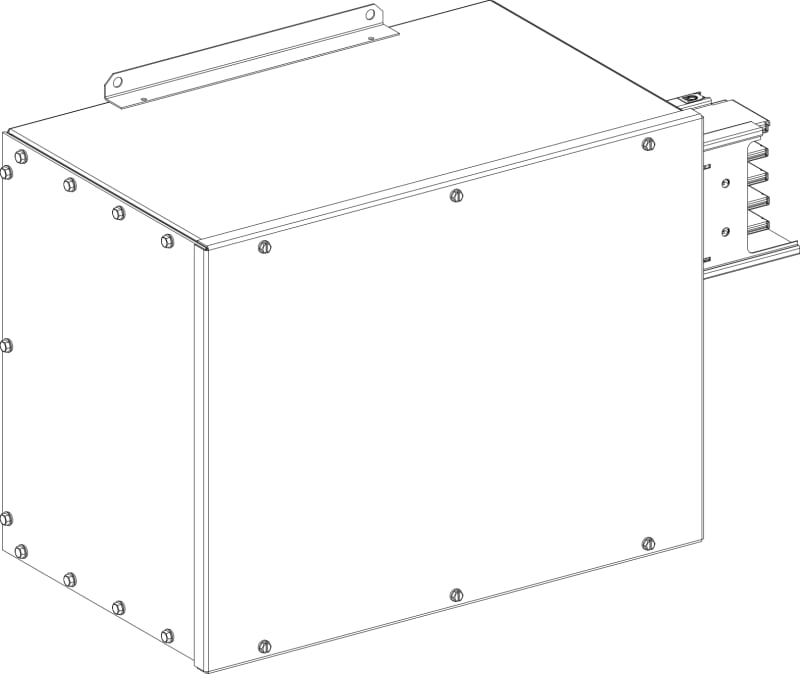

End feed RH/LH 400A (KSA400AB4)
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric KSA400AB4 End feed H/V 400A.
Technical Specifications
- Manufacturer part number (MPN)
- KSA400AB4
- EAN / GTIN
- 3606480004469
- Sales unit
- pcs
- Rated current
- 400 A
- Range of product
- Canalis
- Product name
- KS
- Device short name
- KSA
- Product compatibility
- Canalis KSA busbar trunking 400 A
- Offer type
- Classic; Rising main
- Product or component type
- Feed unit
- Conductors material
- Aluminium
- [Ie] rated operational current
- 400 A
- [Ue] rated operational voltage
- 230...690 V
- Number of circuits
- 1
- Busbar trunking polarity
- 3L + N + PE
- Protection type
- Without protection
- Control type
- Without
- Colour
- White (RAL 9001)
- Provided equipment
- End cover
- Mounting location
- Right; Left
- mounting mode
- By screws
- Mounting support
- Busbar
- Body material
- Metal
- Connections - terminals
- Lug for 300 mm² rigid; Lug for 300 mm² flexible
- Width
- 501 mm
- Depth
- 213.5 mm
- Height
- 348 mm
- Product weight
- 11.2 kg
- Standards
- IEC 61439-1; IEC 61439-6
- IP degree of protection
- IP55 conforming to IEC 60529
- IK degree of protection
- IK08 conforming to IEC 62262
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 6
- Country of origin
- FR
- Warranty (in months)
- 18
- Model
- Single
- RAL-number
- 9001
- Number of poles
- 5
- Length
- 501 mm
- Degree of protection (IP)
- IP55
- Power supply position
- End
- Rated voltage AC 50 Hz
- 230–690 V
- Rated current AC 50 Hz
- 400 A
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3606480004469
- SAP 1000470827
- Code 8114856
Product Documentation
More from Schneider Electric
Schneider Electric
Mounting Plate 500X500 (NSYMF55)
Schneider Electric
Schneider Electric Circuit breaker, ComPacT NSX100F AC/DC, 18KA/240VAC, 1 pole, TMD trip unit 50A C10F1TM050
Schneider Electric

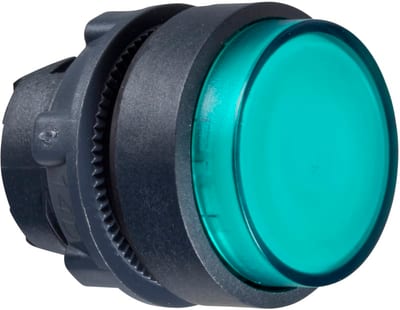

Schneider Electric Harmony XB5 Illuminated Push-Button Head, Projecting, Green LED
ZB5AW133
Schneider Electric

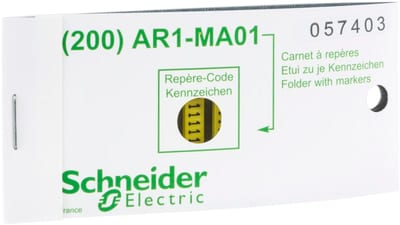

Schneider Electric Marker, Linergy TR cable ends, yellow, clipin type, character 9, Numeric, set of 200 AR1MA019
Schneider Electric

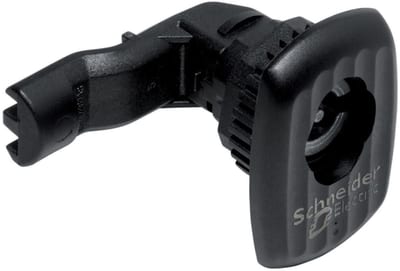

Lock insert, square 8 mm
NSYAEDLS8S3D
Schneider Electric
Schneider Electric Circuit breaker, ComPacT NSX100HB1, 75KA/690VAC, 3 poles, TMD trip unit 63A C10V3TM063
Schneider Electric

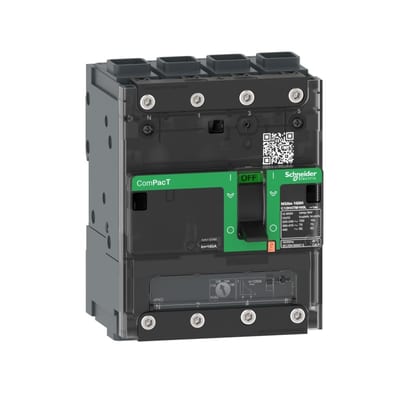

Schneider Electric Circuit breaker, ComPacT NSXm 63B, 25KA/415VAC, 4 poles 4D (neutral fully protected), TMD trip unit 40A, EverLink lugs C11B4TM040L
Schneider Electric

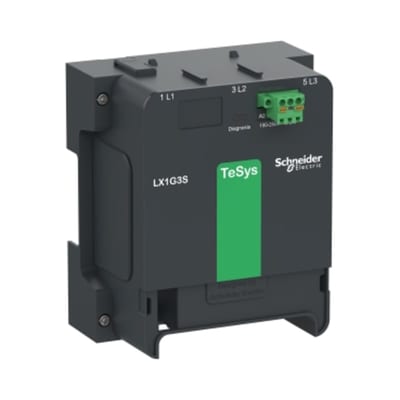

Coil 100-250V Std 3P G400-500
