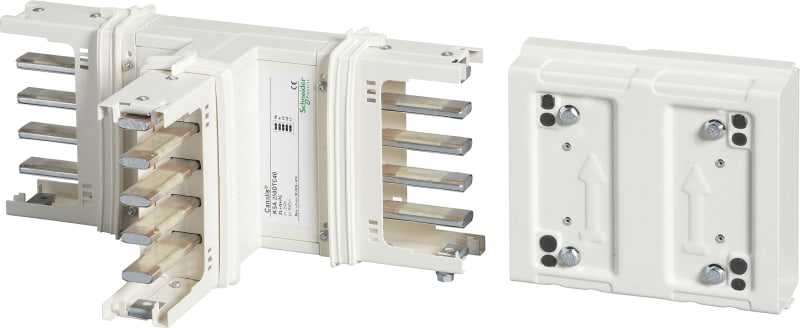

T-element 250A (KSA250DTC40)

Schneider Electric KSA250DTC40 T-element 250A.

Manufacturer part number (MPN)

KSA250DTC40

EAN / GTIN

3606480004254

Sales unit

pcs

Package quantity

18 pcs

Rated current

250 A

Range of product

Canalis

Product name

KS

Device short name

KSA

Offer type

Advanced

Product or component type

Tee

Busbar description

Standard

Product compatibility

Canalis KSA busbar trunking 100…250 A

Device application

Change direction

Conductors material

Aluminium

Busbar trunking polarity

3L + N + PE

[Ie] rated operational current

250 A at 35 °C

IP degree of protection

IP55 conforming to IEC 60529

[Ue] rated operational voltage

230...690 V

Network frequency

50/60 Hz

Operating angle

90 °

Direction change type

Edgewise to perpendicular - neutral to up

Colour

White (RAL 9001)

Dimension type

Made to measure

Length

165 mm for side A; 165 mm for side B; 165 mm for side C

Width

54 mm

Height

146 mm

Product weight

4.3 kg

Mounting location

On trunking

Mounting position

Any position

Electrical connection

Lubricated sliding contact

mounting mode

By screws

Standards

IEC 61439-1; IEC 61439-6

IK degree of protection

IK08 conforming to IEC 62262

Number of Units in Package 1

1

Number of Units in Package 2

6

Country of origin

FR

Warranty (in months)

18

Model

T-box

Flexible

No

Number of poles

5

Number of conductors (without earthing)

4

Rated current AC 50 Hz

250 A

Rated voltage AC 50 Hz

230–690 V

RAL-number

9001

Degree of protection (IP)

IP55

HS Code

8536.90

• EAN 3606480004254
• SAP 1000470821
• Code 8797998
