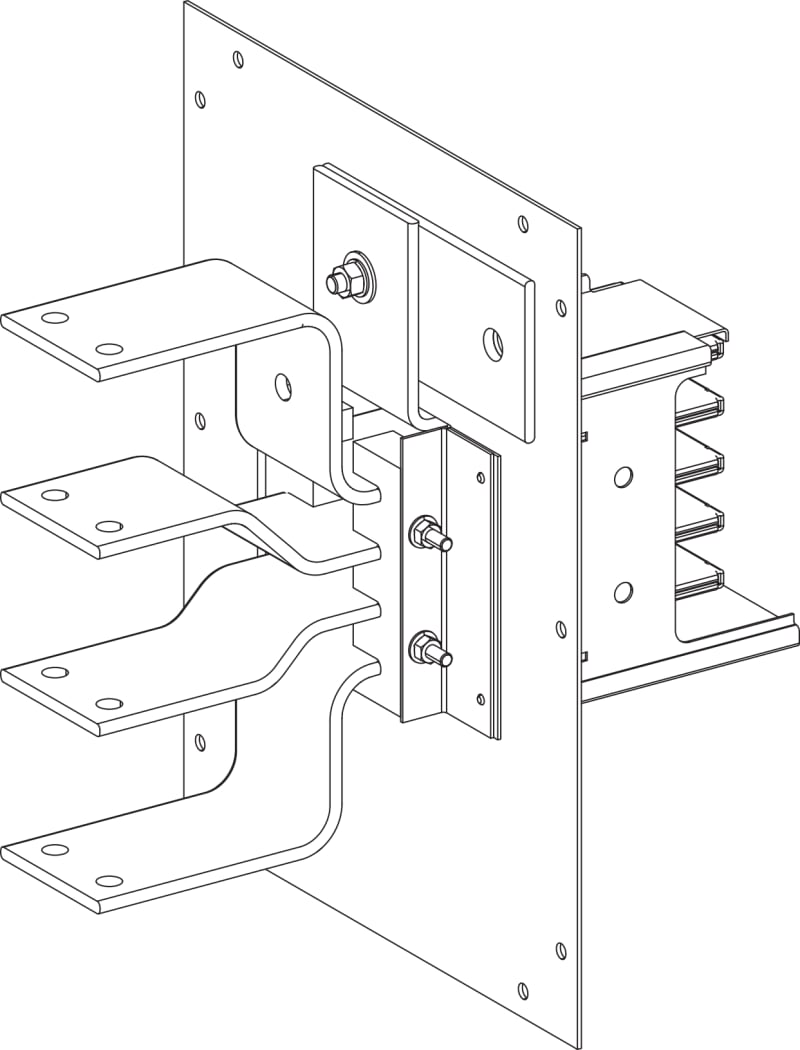

End feed RH/LH 1000A
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric KSA1000AE4 End feed H/V 1000A.
Technical Specifications
- Manufacturer part number (MPN)
- KSA1000AE4
- EAN / GTIN
- 3606480003493
- Sales unit
- pcs
- Package quantity
- 30 pcs
- Rated current
- 1000 A
- Range of product
- Canalis
- Product name
- KS
- Device short name
- KSA
- Product compatibility
- Canalis KSA busbar trunking 500…1000 A
- Offer type
- Advanced; Rising main
- Product or component type
- Flange feed unit
- Conductors material
- Aluminium
- [Ie] rated operational current
- 1000 A
- [Ue] rated operational voltage
- 230...690 V
- Number of circuits
- 1
- Busbar trunking polarity
- 3L + N + PE
- Protection type
- Without protection
- Control type
- Without
- Colour
- White (RAL 9001)
- Provided equipment
- End cover
- Mounting location
- Right; Left
- mounting mode
- By screws
- Mounting support
- Busbar
- Body material
- Metal
- Connections - terminals
- Bar
- Width
- 338 mm
- Depth
- 290 mm
- Height
- 370 mm
- Product weight
- 10.6 kg
- Standards
- IEC 61439-1; IEC 61439-6
- IP degree of protection
- IP55 conforming to IEC 60529
- IK degree of protection
- IK08 conforming to IEC 62262
- Number of Units in Package 1
- 1
- Country of origin
- FR
- Warranty (in months)
- 18
- Model
- Single
- RAL-number
- 9001
- Number of poles
- 4
- Length
- 338 mm
- Degree of protection (IP)
- IP55
- Power supply position
- End
- Rated voltage AC 50 Hz
- 230–690 V
- Rated current AC 50 Hz
- 1000 A
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3606480003493
- SAP 1000470809
- Code 8932376
Product Documentation
More from Schneider Electric
Schneider Electric
Schneider Electric Circuit breaker, ComPacT NSX250B, 25KA/415VAC, 3 poles, TMD trip unit 125A C25B3TM125
Schneider Electric

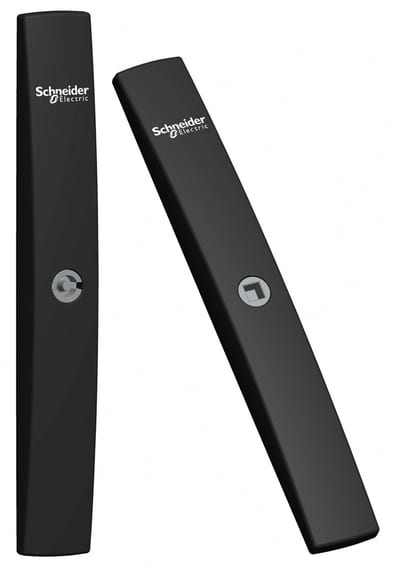

Schneider Electric PanelSeT SF/SM flat escutcheon lock - lock 7 mm triangular insert NSYSFLOCKT7
Schneider Electric

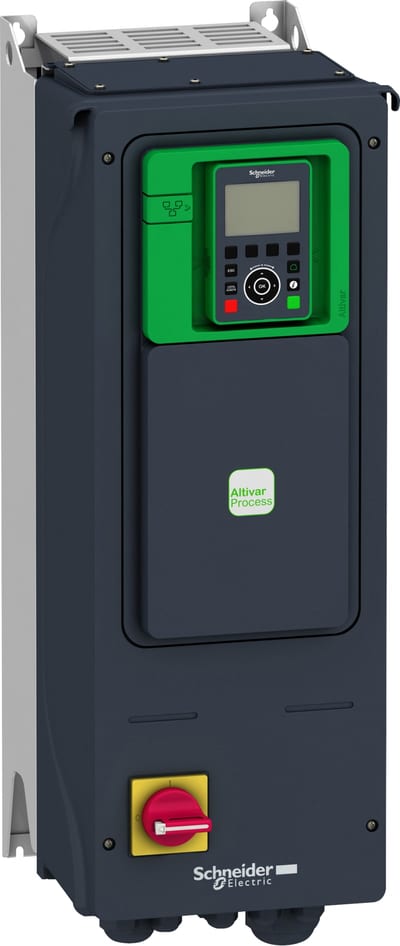

Schneider Electric variable speed drive, ATV950, 18,5kW, 400/480V, w braking unit/switch, IP55 ATV950D18N4E
Schneider Electric

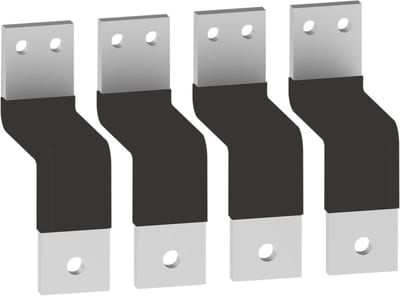

Cableminne 4P G630-800 MCCB
LA9G4113
Schneider Electric

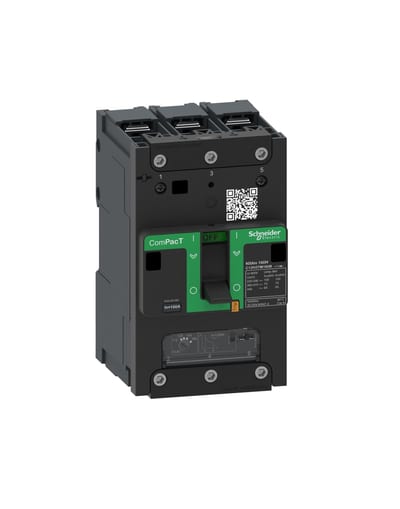

Schneider Electric Circuit breaker, ComPacT NSXm 63N, 50KA/415VAC, 3 poles, TMD trip unit 50A, lugs/busbars C11N3TM050B
Schneider Electric
Bakelitt mounting plate 600X500
NSYMB65
Schneider Electric

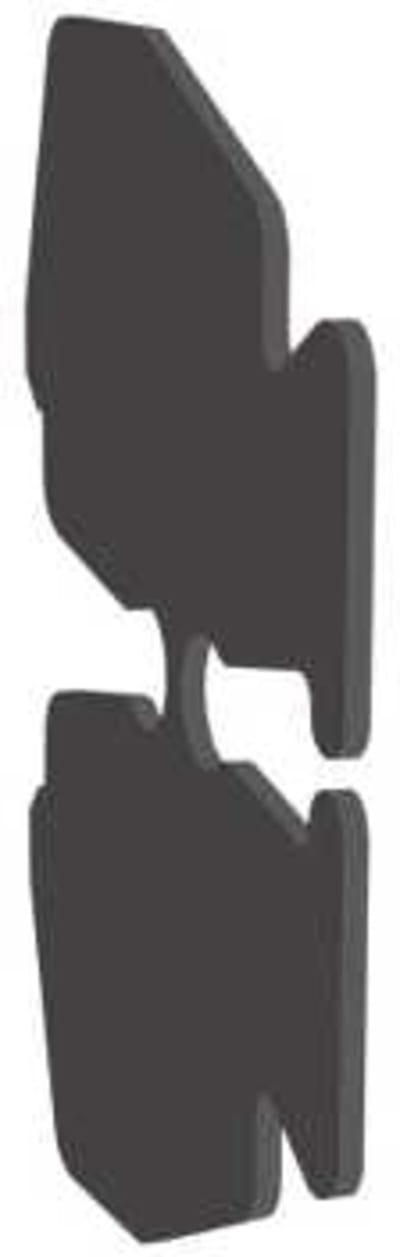

Partition Plate FOR RSL
RSLZ3
Schneider Electric

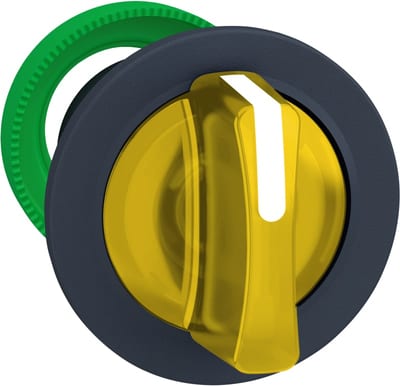

Selector switch flush for LED 3 pos yellow (ZB5FK1383)
