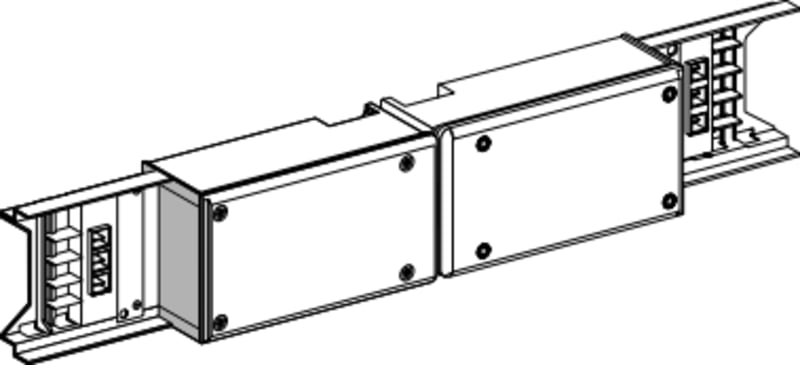

Center feed 160A (KNA160ABT4)
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric KNA160ABT4 Center feed 160A.
Technical Specifications
- Manufacturer part number (MPN)
- KNA160ABT4
- EAN / GTIN
- 3606480003080
- Sales unit
- pcs
- Rated current
- 160 A
- Range of product
- Canalis
- Product name
- KN
- Device short name
- KNA
- Product compatibility
- Canalis KNA busbar trunking 160 A
- Product or component type
- Feed unit
- Conductors material
- Aluminium
- [Ie] rated operational current
- 160 A
- [Ue] rated operational voltage
- 230...500 V
- Number of circuits
- 1
- Busbar trunking polarity
- 3L + N + PE; L + N + PE
- Protection type
- Without protection
- Control type
- Without
- Colour
- White (RAL 9001)
- Provided equipment
- End cover
- Mounting location
- Central
- mounting mode
- By clips
- Mounting support
- Busbar
- Connections - terminals
- Lug for 95 mm² flexible; Lug for 95 mm² rigid
- Width
- 698 mm
- Depth
- 122 mm
- Height
- 243 mm
- Product weight
- 5.5 kg
- Standards
- IEC 61439-6
- IP degree of protection
- IP55 conforming to IEC 60529
- IK degree of protection
- IK08 conforming to IEC 62262
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 12
- Country of origin
- FR
- Warranty (in months)
- 18
- Model
- Single
- RAL-number
- 9001
- Number of poles
- 4
- Length
- 698 mm
- Degree of protection (IP)
- IP55
- Power supply position
- Centre
- Rated voltage AC 50 Hz
- 230–500 V
- Rated current AC 50 Hz
- 160 A
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3606480003080
- SAP 1000571971
- Code 8689433
Product Documentation
More from Schneider Electric
Schneider Electric
Schneider Electric License upgrade, EcoStruxure EV Charging Expert, dynamic charge management, from 5 to 50 charging stations EVLMSEDB2EDM
Schneider Electric
Push-button flush for LED blue (ZB4FH063)
Schneider Electric
Fixing Rail for Mounting Plate 500 mm
NSYSMPS5
Schneider Electric
Key grip, flush 3-Pos 455 (ZB4FG7)
Schneider Electric
Schneider Electric Complete body contact assembly, Harmony XB4, single contact, with fixing collar, metal, 2 NC, compact push in terminals ZB4BZ1045
Schneider Electric
Schneider Electric One symmetric mounting rail 35X15 L600MM type A - Wall mounting - Supply: 20 NSYSDR60A
Schneider Electric
Schneider Electric Contactor, TeSys Deca, 3P(3NO), AC-3/3E, <=440V, 25A, 500V AC 50/60Hz coil, snap-in terminals LC1D25AS7
Schneider Electric
Schneider Electric Circuit breaker frame, ComPacT NS1600H, 70KA at 415VAC, 1600A, 3P, withdrawable, manually operated, without control unit C160H3WM
Technical guides
Catalogue entry last verified: 2026-08-24. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy KNA160ABT4?
- KNA160ABT4 can be ordered from cballast.com as a Schneider Electric catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Schneider Electric product?
- The manufacturer part number is KNA160ABT4.
- What is the HS code for KNA160ABT4?
- The customs tariff (HS) code for KNA160ABT4 is 8536.90.
- Who manufactures KNA160ABT4?
- KNA160ABT4 is a Schneider Electric product in the SC000122 range.
- Is a datasheet available for KNA160ABT4?
- Yes — the KNA160ABT4 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for KNA160ABT4?
- The minimum order quantity is 1.
- Is KNA160ABT4 available?
- Yes — KNA160ABT4 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
