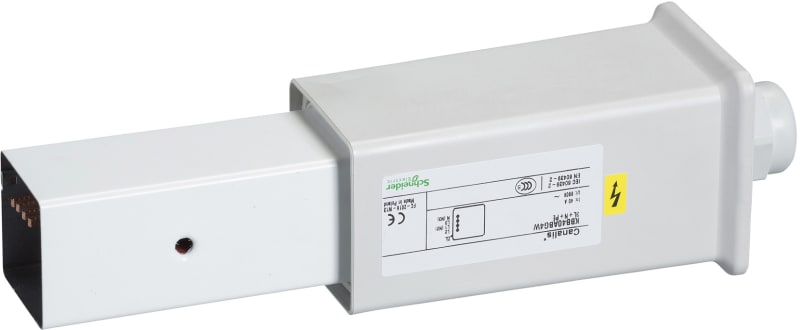

End feed 40A LH 3L+N W
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric KBB40ABG4W End feed 40A V 3L+N W.
Technical Specifications
- Manufacturer part number (MPN)
- KBB40ABG4W
- EAN / GTIN
- 3606480001109
- Sales unit
- pcs
- Package quantity
- 12 pcs
- Rated current
- 40 A
- Range of product
- Canalis
- Device short name
- KBB
- Product compatibility
- Canalis KBB busbar trunking 25…40 A
- Offer type
- Classic
- Product or component type
- Feed unit
- Conductors material
- Aluminium
- [Ie] rated operational current
- 40 A; 25 A
- [Ue] rated operational voltage
- 230...400 V
- Number of circuits
- 1
- Busbar trunking polarity
- 3L + N + PE; L + N + PE
- Protection type
- Without protection
- Control type
- Without
- Colour
- White (RAL 9003)
- Provided equipment
- End cover
- Mounting location
- Left
- mounting mode
- By clips
- Mounting support
- Busbar
- Connections - terminals
- Terminal block - Pg 21 - screw clamp connector for 10 mm²
- Width
- 244 mm
- Depth
- 75.5 mm
- Height
- 75.5 mm
- Product weight
- 400 g
- Standards
- IEC 61439-6
- IP degree of protection
- IP55 conforming to IEC 60529
- Country of origin
- CZ
- Warranty (in months)
- 18
- Model
- Single
- RAL-number
- 9003
- Number of poles
- 5
- Length
- 244 mm
- Degree of protection (IP)
- IP55
- Power supply position
- End
- Rated current AC 50 Hz
- 40 A
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3606480001109
- SAP 1000285083
- Code 873438
Product Documentation
More from Schneider Electric
Schneider Electric
Interlock Block 110/127VAC
LAD6K10F
Schneider Electric

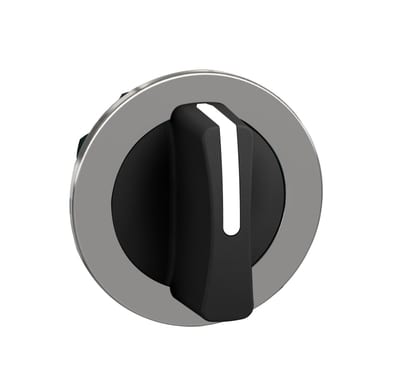

Selector Switch Head flush 3 fixed black
ZB4FD3
Schneider Electric

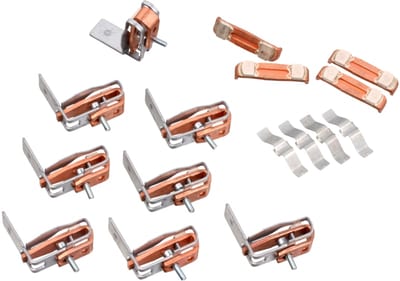

HOVEDPOLER, 3 pcs (LA5FK431)
Schneider Electric

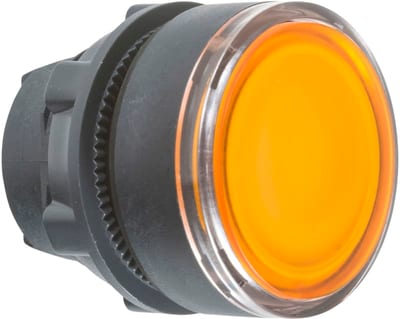

Schneider Electric ZB5AW35 Harmony XB5 Push-Button Head — Ø22 mm, Yellow, flush, spring return, illuminated (BA9S), plastic bezel
Schneider Electric

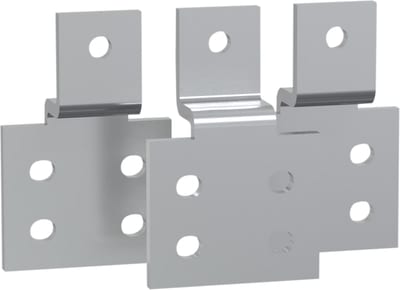

Angleconnection large 3P G630-800
LA9G3673
Schneider Electric

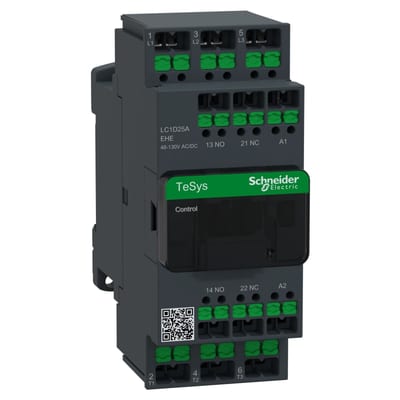

Schneider Electric Contactor, TeSys Deca Advanced, 3P(3NO), AC-3/3E, <=440V, 25A, 48...130V AC/DC coil, snap-in terminals LC1D25AEHE
Schneider Electric

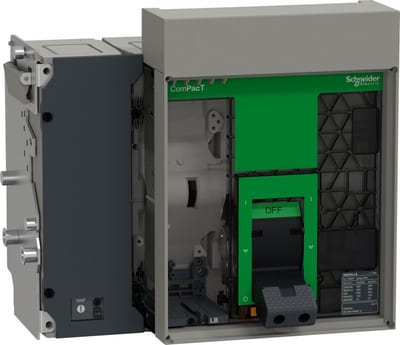

Schneider Electric Circuit breaker frame, ComPacT NS630BLB, 200KA at 415VAC, 630A, 4P, drawout, manually operated, without control unit C063B4WM
