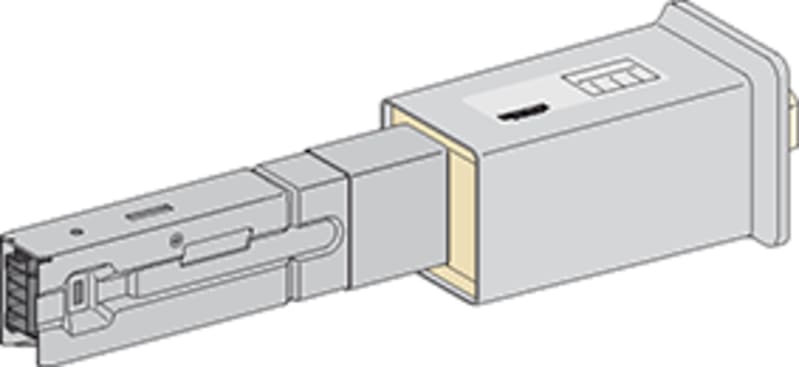

End feed 40A PURE WHITE +bus white
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric KBA40ABD4TW Endemating 40A Right-hand BusHvit.
Technical Specifications
- Manufacturer part number (MPN)
- KBA40ABD4TW
- EAN / GTIN
- 3606480000218
- Sales unit
- pcs
- Package quantity
- 10 pcs
- Rated current
- 40 A
- Range of product
- Canalis
- Device short name
- KBA
- Product compatibility
- Canalis KBA busbar trunking 25…40 A
- Offer type
- Control system
- Product or component type
- Feed unit
- Conductors material
- Aluminium
- [Ie] rated operational current
- 40 A; 25 A
- [Ue] rated operational voltage
- 230...400 V
- Number of circuits
- 1
- Busbar trunking polarity
- 3L + N + PE; L + N + PE
- Protection type
- Without protection
- Control type
- Communicating
- Communication port protocol
- DALI; KNX
- Colour
- White (RAL 9003)
- Provided equipment
- End cover
- Mounting location
- Right
- mounting mode
- By screws
- Mounting support
- Busbar
- Connections - terminals
- Terminal block - Pg 21 - screw clamp connector for 10 mm²
- Width
- 320 mm
- Depth
- 75.5 mm
- Height
- 78.5 mm
- Product weight
- 500 g
- Standards
- IEC 61439-6
- IP degree of protection
- IP55 conforming to IEC 60529
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 8
- Number of Units in Package 3
- 64
- Country of origin
- CZ
- Warranty (in months)
- 18
- Model
- Single
- RAL-number
- 9003
- Number of poles
- 5
- Length
- 320 mm
- Degree of protection (IP)
- IP55
- Power supply position
- End
- Rated current AC 50 Hz
- 40 A
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3606480000218
- SAP 1000571999
- Code 8685234
Product Documentation
More from Schneider Electric
Schneider Electric

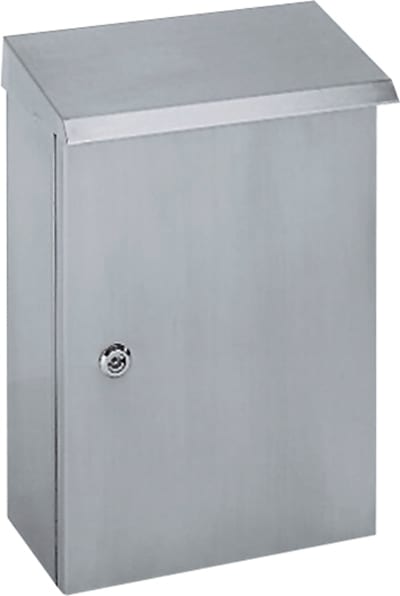

Rain hood Stainless (NSYTX2515)
Schneider Electric

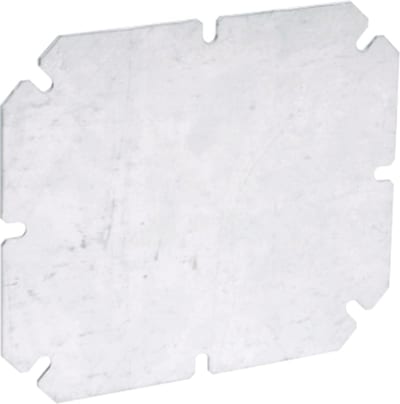

08013 Mounting Plate 225X275 ISOL
NSYAMPA2924TB
Schneider Electric

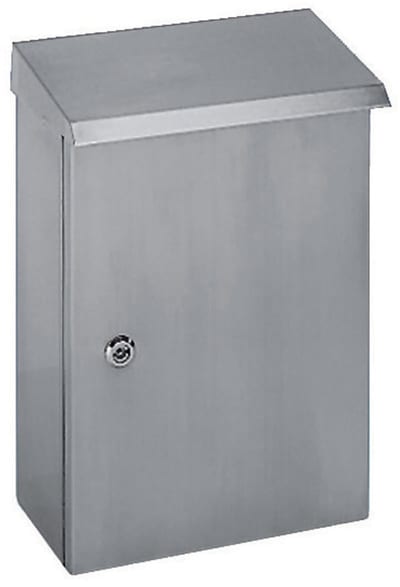

Rain hood Stainless (NSYTX6025)
Schneider Electric

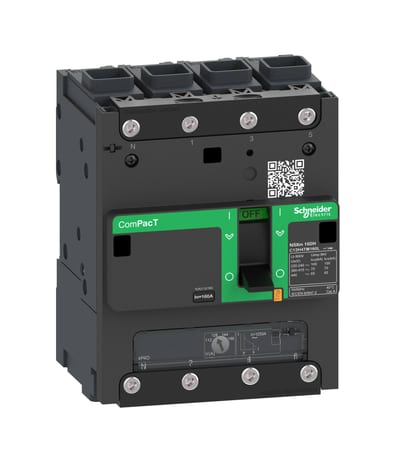

Schneider Electric Circuit breaker, ComPacT NSXm 63N, 50KA/415VAC, 4 poles 4D (neutral fully protected), TMD trip unit 25A, EverLink lugs C11N4TM025L
Schneider Electric

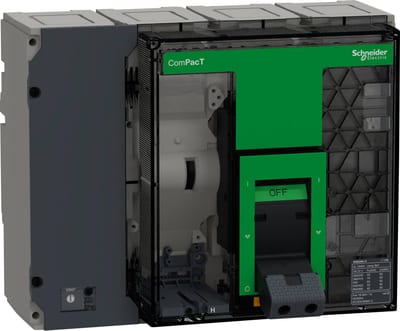

Schneider Electric Circuit breaker frame, ComPacT NS630BH, 70KA at 415VAC, 630A, 4P, fixed, manually operated, without control unit C063H4FM
Schneider Electric
Mounting plate 1200X1200
NSYMM1212
Schneider Electric

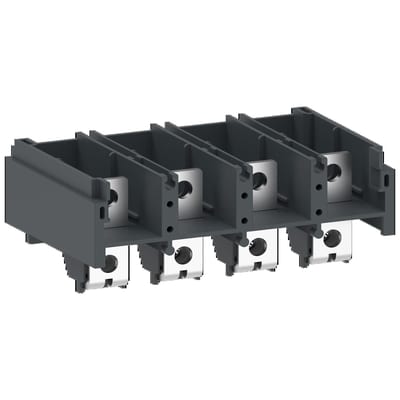

Cableminneforleng 4P G115-225
LA9G4101
Schneider Electric

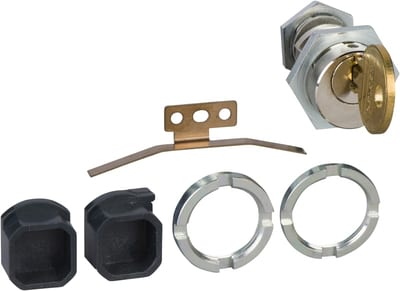

Ronis Lock Set, 1 Lock, Pocket in Disconnected Position, MTZ1
