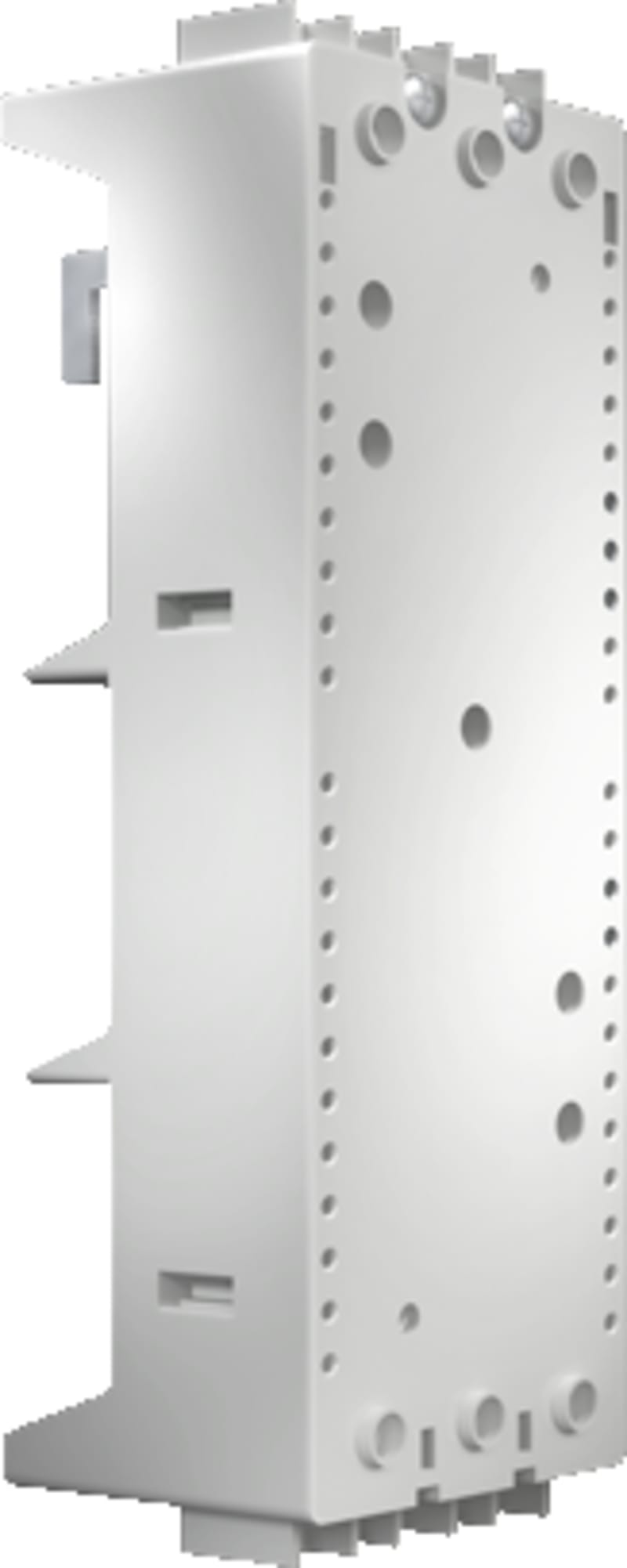

Device Adapter 100A, RL60 (9342400)
Pricing
Request a quote
We reply within 24 hours
Product Description
Rittal 9342400 Manufacturer description: SV Circuit-breaker component adaptor, 100 A, 690 V, 3-pole, cable outlet top, round conductor connection 10-35 mm², clamping area; WH: 10x7,8 mm. Device Adapter 100A, RL60, output above.
Technical Specifications
- Manufacturer part number (MPN)
- 9342400
- EAN / GTIN
- 4028177503694
- Sales unit
- pcs
- Package quantity
- 20 pcs
- Model designation
- SV 9342.400
- Product type
- Circuit-Breaker Component
- Material
- Polyamide; Fire protection corresponding to UL 94-V0
- Color
- RAL 7035
- Type of connection (electrical)
- Box terminal
- Rated operating voltage
- 690 V, 3~
- Electrical UL ratings (SCCR)
- 65 kA - 480 V, manual motor controller max. 100 A, NLRV/7
- Cable outlet
- Top
- For bar systems with center-to- center spacing
- 60 mm
- Number of poles
- 3-pole
- Dimensions
- Width: 72 mm; Height: 210 mm
- Connection of round conductors
- 10 ‐ 35 mm²
- Suitable for busbars
- Height: 5, 10 mm
- To fit manufacturer (model)
- ABB (MS 495, MS 496, MS 497); Eaton (PKZ2); Schneider Electric (GV3ME80); Siemens (S3)
- Packaging unit
- 1 pc(s).
- Net weight
- 0.57 kg
- Gross weight
- 0.576 kg
- Copper weight (kg per piece)
- 0.114
- Customs tariff number
- 85369095
- ETIM 9
- EC001531
- ECLASS 8.0
- 27370304
- Approvals
- UL; ABS; DNV; Lloyds Register; UL + C-UL (listed)
- Mounting rail armament
- None
- Rated current In
- 100 A
- Min. busbar thickness
- 5 mm
- Max. busbar thickness
- 10 mm
- Width of the adaptor
- 72 mm
- Rail width
- 10 mm
- Busbar distance
- 60 mm
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4028177503694
- SAP 1000116800
- Code 81082480
Product Documentation
More from Rittal
Rittal

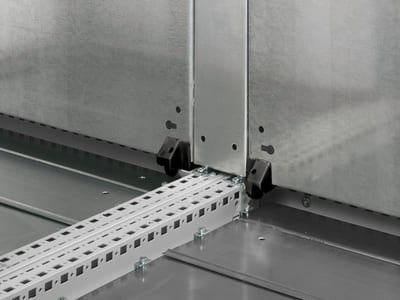

Mounting Plate Spacer 2200
4592700
Rittal

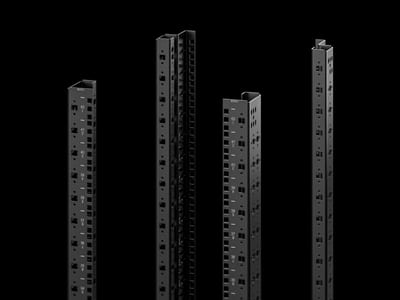

VX IT-Mountingsvinkler dyn Rear 42HE
5302155
Rittal

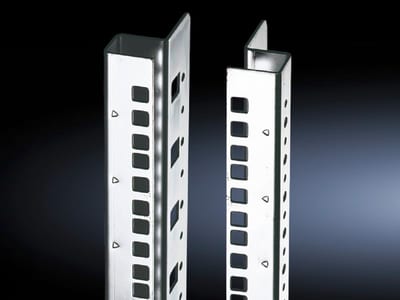

VX IT-Mountingsvinkler dyn frem 38HE
5302152
Rittal

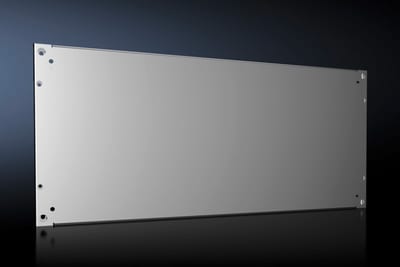

Partial Mounting Plate VX 1200X400
8617620
Rittal

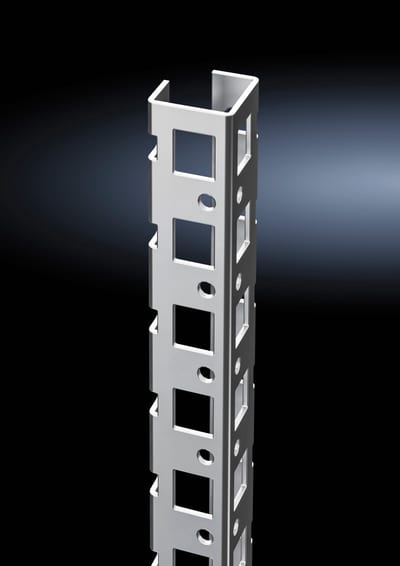

SZ Adapterrail f VX-kompabilitet 1800
8617750
Rittal

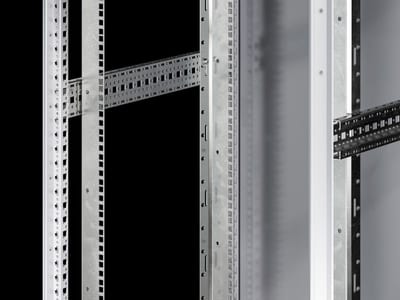

VX IT-Mountingsvinkler std rear 47HE
5302109
Rittal

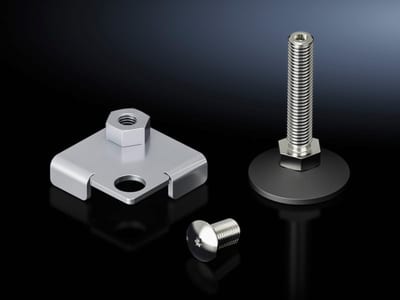

Rittal VX IT Levelling Feet with Internal Adjustment
5301326
Rittal

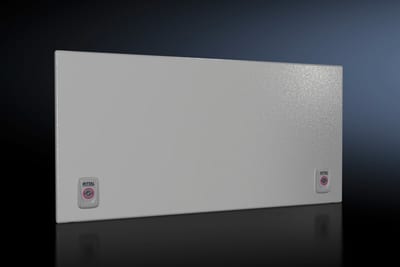

Termination Hatch VX 600X300
